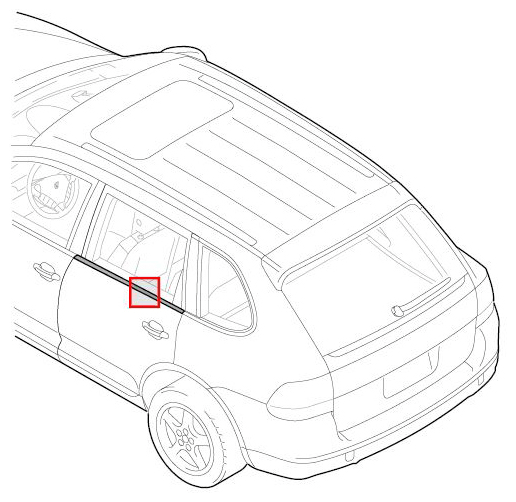

Removing Rear Window Channel Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

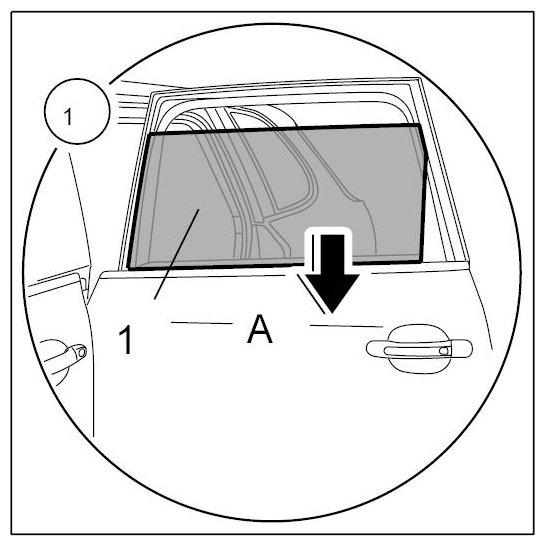

- Opening the rear door window
- 1.1. Open rear door window -1-
as far as possible (-Arrow A-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

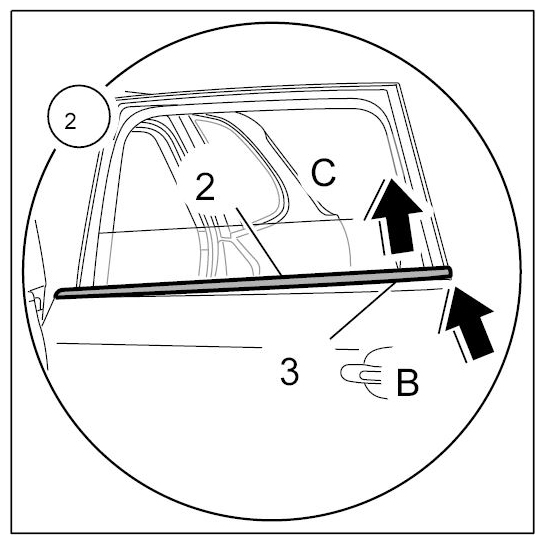

- Removing the rear window shaft seal
- 2.1. Release rear window shaft seal -2-
beginning at the rear end (-Arrow B-
) with a plastic wedge and pull it off from the sheetmetal flange -3-
in an upward direction (-Arrow C-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

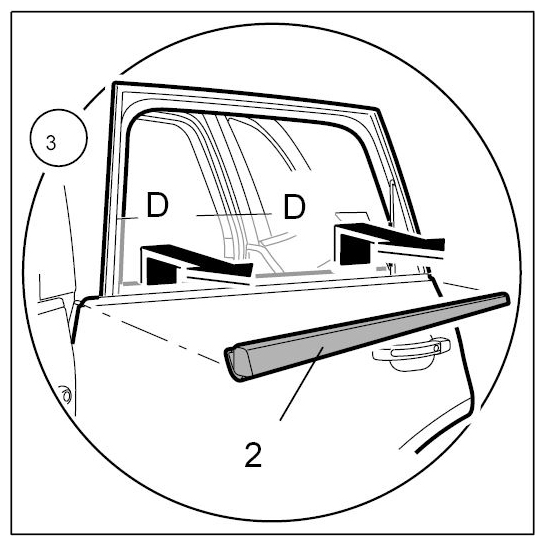

- Removing the rear window shaft seal
- 3.1. Remove the rear window shaft seal -2-
(-Arrows D-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
