Installing Rear Window Channel Seal

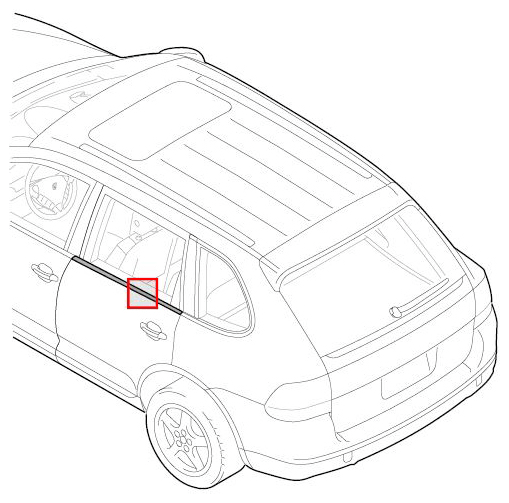

Fig 1: Identifying Rear Window Channel Seal

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• Make sure here that horizontal alignment is correct! -Arrow C- and -Arrow D-

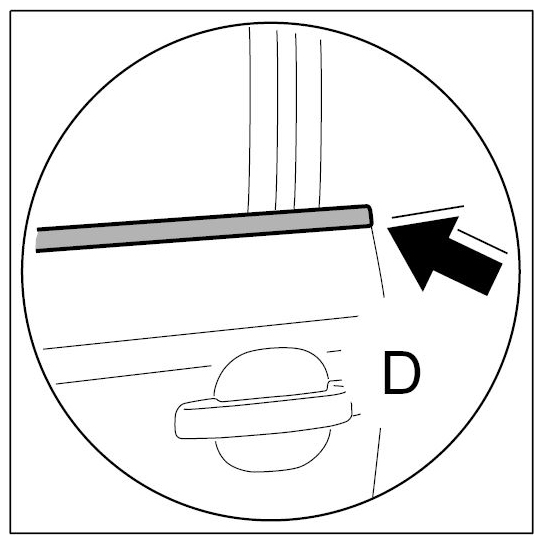

  Fig 2: Locating Front Window Channel Seal

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

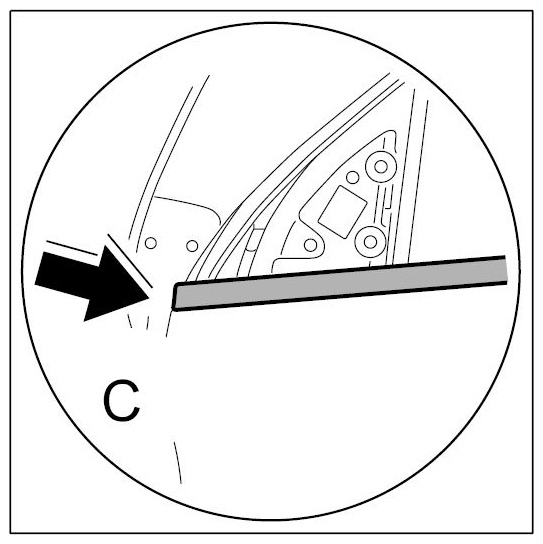

Fig 3: Locating Front Window Channel Seal

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Install the rear window shaft seal
   1. 1.1. Push rear window channel seal -2-  , beginning at front end (-Arrow A-  ), onto the sheetmetal flange -3-  from above (-Arrow B-  ).

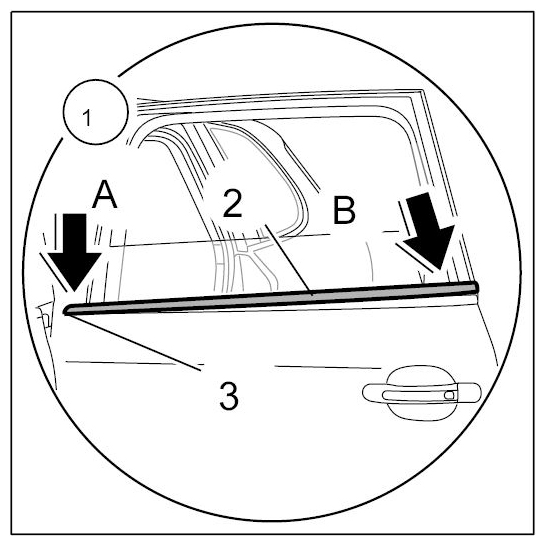

      Fig 4: Installing Rear Window Shaft Seal

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Closing rear door window
   1. 2.1. Close rear door window -1-  completely (-Arrow E-  ).

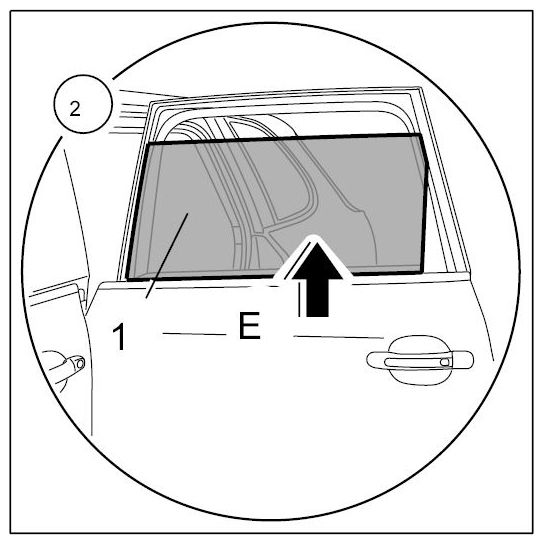

      Fig 5: Closing Rear Door Window

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
