Preparing The Sun Blind For Installation

Protect the sun blind from dirt.
1. 1.1. Roll up sun blind completely.
2. 1.2. Fold the sun blind in clean protective film or paper and secure with adhesive tape.

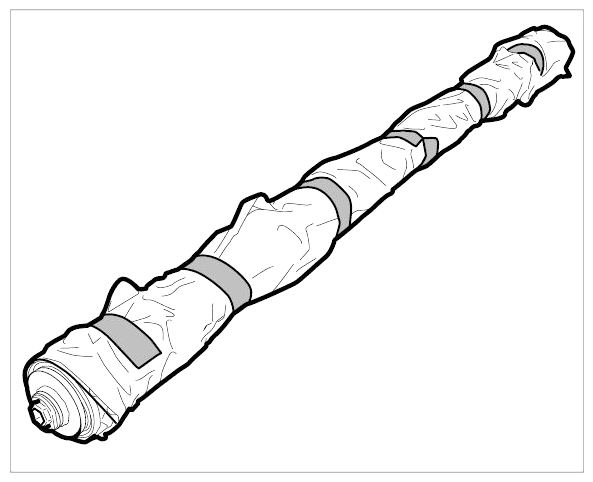

  Fig 1: Protecting Sun Blind From Dirt
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release sun blind completely.
Fix the shaft of the sun blind.
1. 3.1. Carefully clamp the left side of the shaft in a vice.

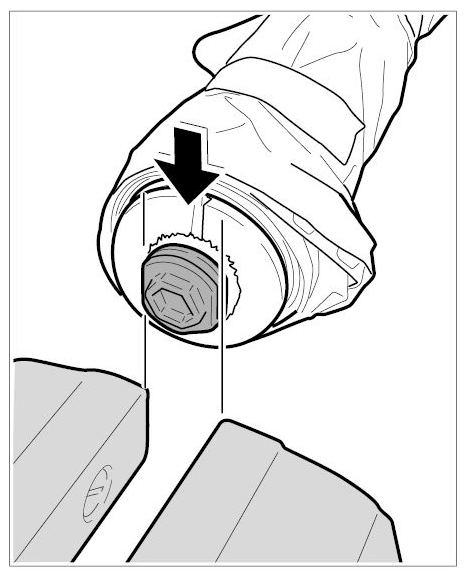

  Fig 2: Fixing Sun Blind
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Turn the sun blind clockwise 29 turns.

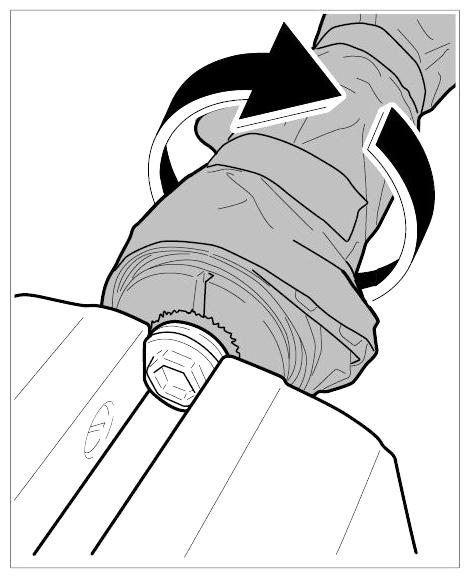

Fig 3: Preloading Sun Blind
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure the shaft on the left side against turning with a retaining pin.

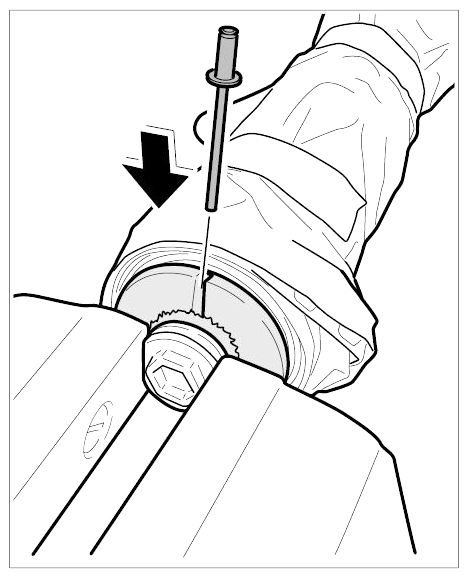

Fig 4: Securing Sun Blind
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
