Installing Sun Blind

Information

• The sun blind must be pre-tensioned before it is installed.
• New blinds are pre-tensioned and secured on delivery.
• If the blind has not been secured against twisting when removed on the vehicle, or if the security for transportation has come undone, the blind must be pre-tensioned before it is installed. → Preparing the sun blind for installation

1. Check installation position of drivers.
   1. 1.1. Check that both drivers for the sun blind are set to dimension -X-  . Adjust the drivers to this setting electrically or via emergency operation if necessary. → Adjustment value: 426 mm

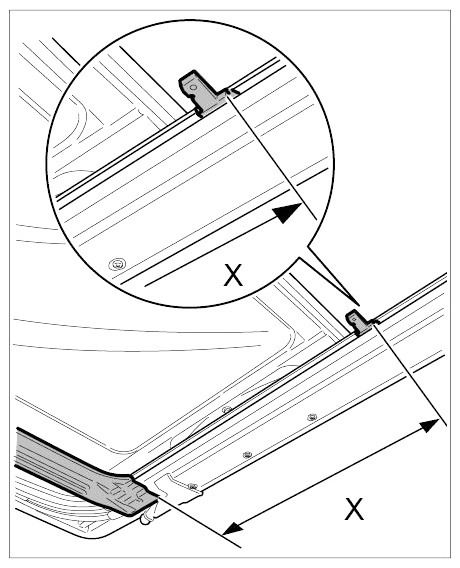

      Fig 1: Installation Position Of Sun Blind

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Guide in pull strap on both sides.
   1. 2.1. Fold pull strap in by 90° -arrow D-  and insert it into the guide rail.

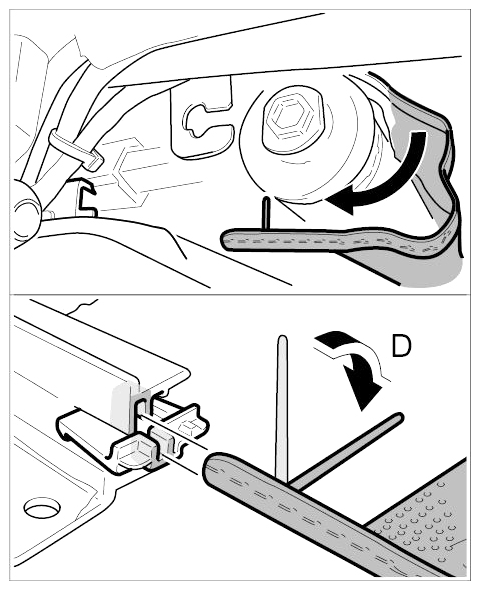

      Fig 2: Installation Position Of Sun Blind On Left

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

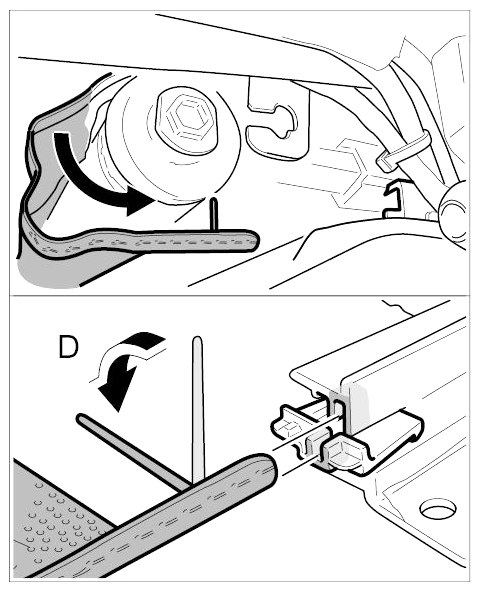

      Fig 3: Installation Position Of Sun Blind On Right

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 2.2. Guide the pull strap forward in the guide rail -arrow E-  .

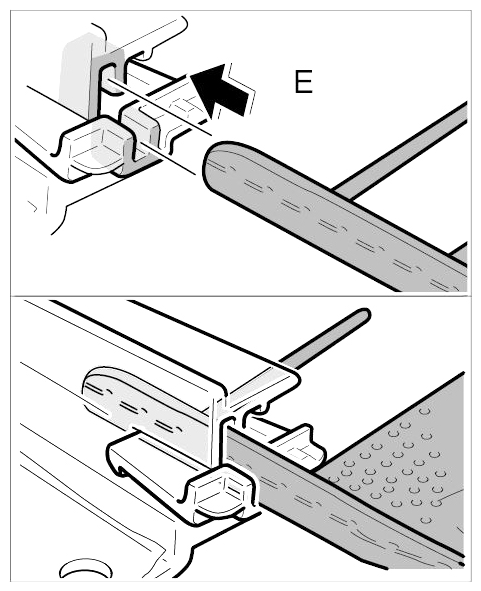

      Fig 4: Pulling In Pull Strap For Sun Blind On Left

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

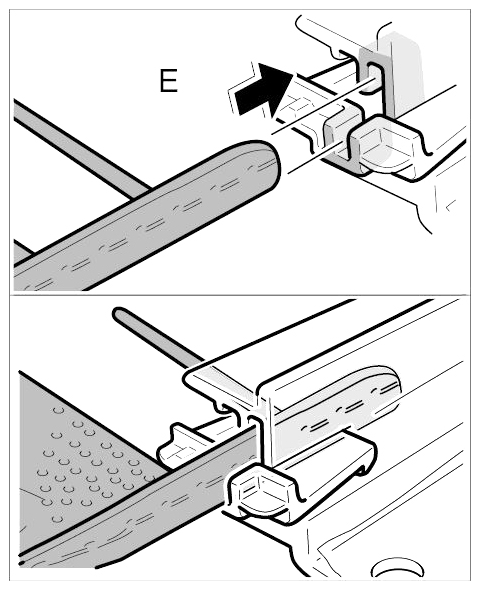

      Fig 5: Pulling In Pull Strap For Sun Blind On Right

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Wind up sun blind.
   1. 3.1. Wind up sun blind as far as the drivers on both sides.

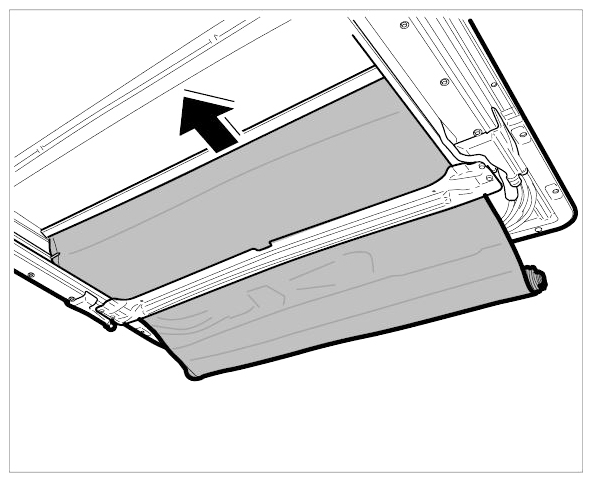

      Fig 6: Winding Up Sun Blind

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Lock the sun blind.
   1. 4.1. Insert fastening mechanism for sun blind on both sides and turn it through 90°.

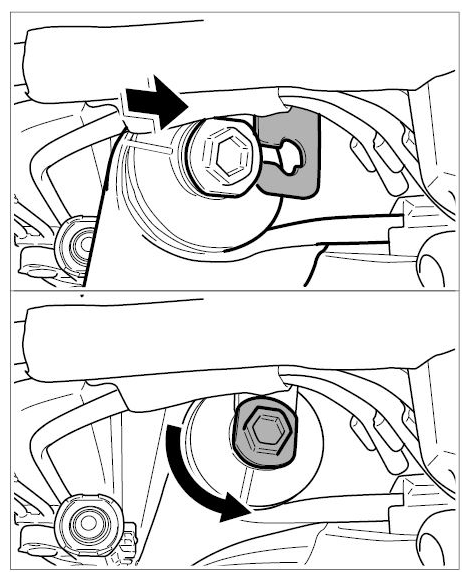

      Fig 7: Locking Sun Blind On Right Side

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

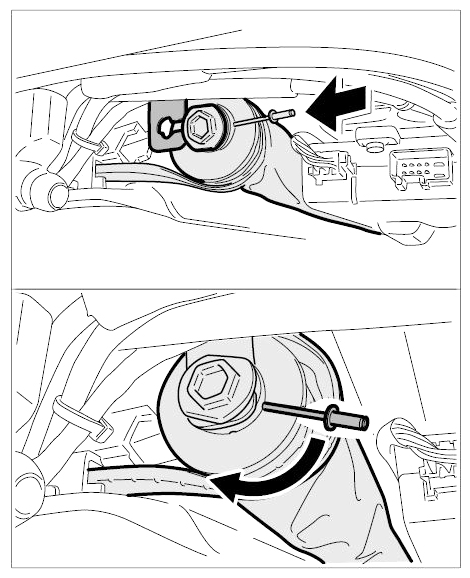

      Fig 8: Locking Sun Blind On Left Side

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Clip in bar for blind.
   1. 5.1. Mount bar -arrow A-  and swivel it upwards -arrow B-  .
   2. 5.2. Push the bar to the rear -arrow C-  .

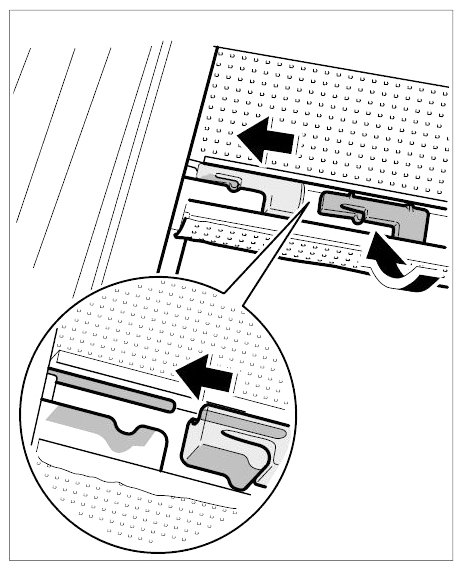

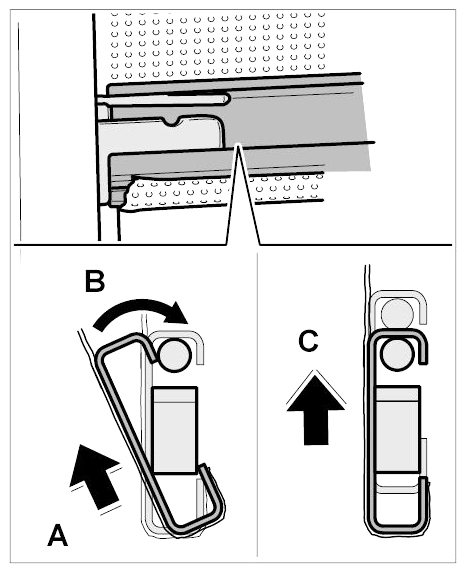

      Fig 9: Clipping In Bar For Blind

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Install locks in bar for blind.
   1. 6.1. Insert locks into the bar.
   2. 6.2. Press lock outwards until the locking tab engages securely. Ensure that the pulling rod of the pull strap is inserted correctly into the bore of the lock.
      Fig 10: Installing Locks In Bar For Blind

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Release the sun blind.
   1. 7.1. Pull off the retaining pin on the left side.

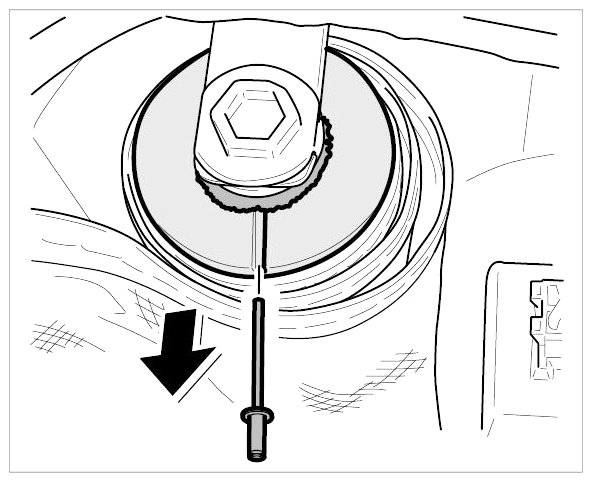

      Fig 11: Releasing Sun Blind

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
