Removing Sunroof Panel

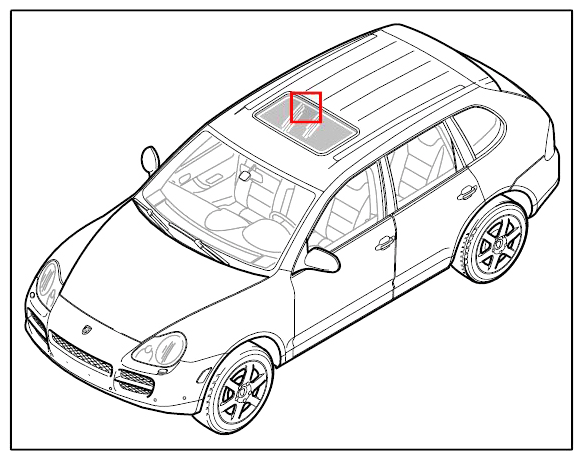

Fig 1: Identifying Sunroof Panel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

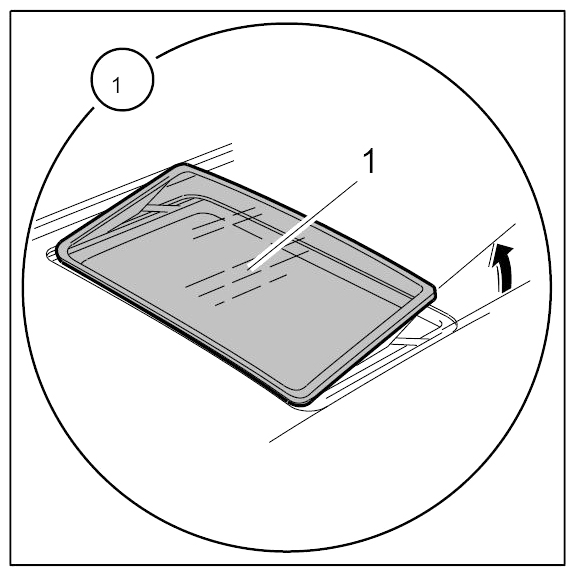

Lift sunroof panel.
1. 1.1. Move sunroof panel -1- to the final raised position.

  Fig 2: Lifting Sunroof Panel
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

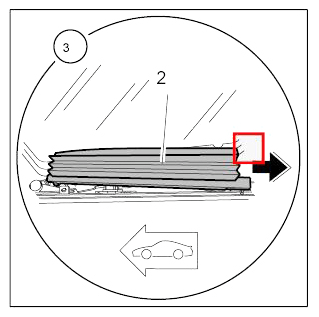

Slide sun blind backwards.

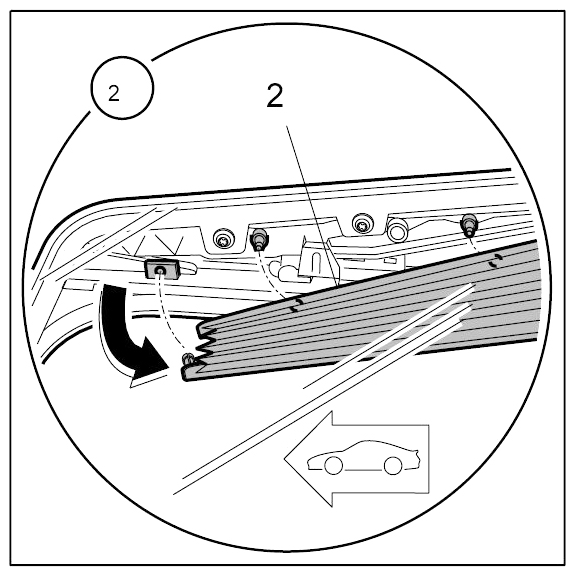

Unclip bellows.
1. 3.1. Unclip bellows -2- at the top and bottom in the front area towards the centre of the vehicle.

  Fig 3: Sliding Sun Blind Backwards
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unhook bellows.

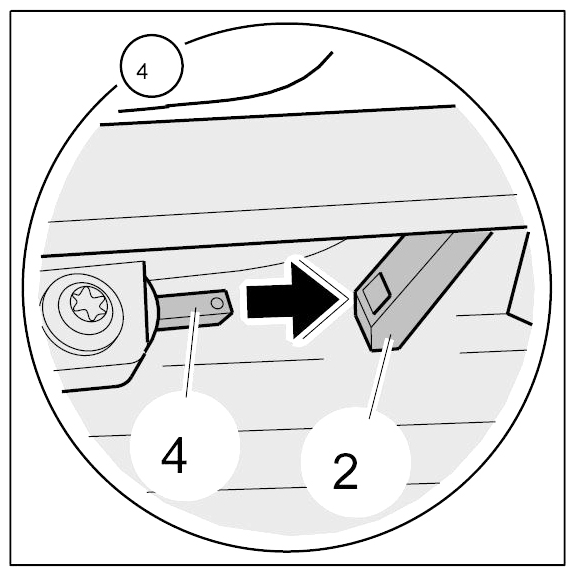

1. 4.1. Unhook bellows -2- at the top in the rear area backwards out of the retaining pivot -4- .

  Fig 4: Locating Retaining Pivot
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

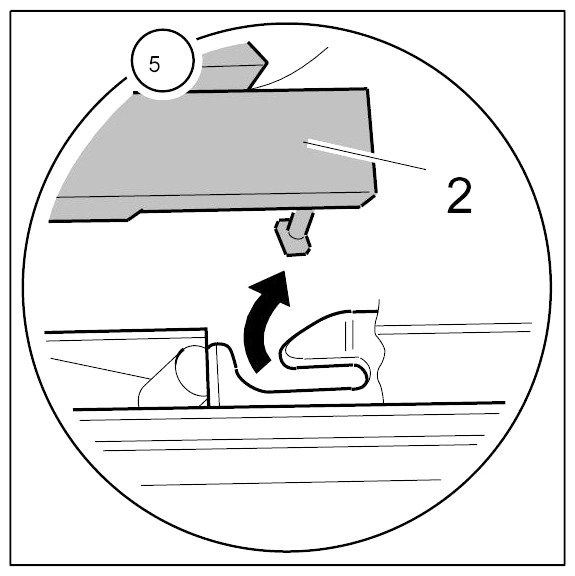

2. 4.2. Push bellows -2- at the bottom forwards in the rear area.
3. 4.3. Remove bellows -2- .

  Fig 5: Pushing Bellows
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 6: Removing Bellows
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws.

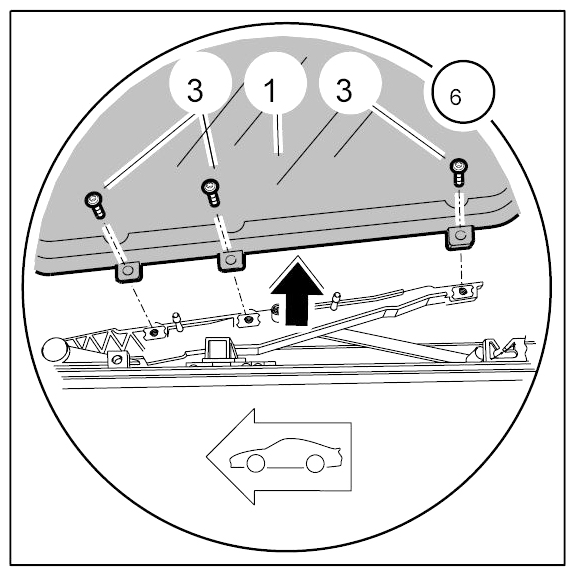

1. 5.1. Unscrew fastening screws -3- on cover for sliding roof -1- .

  Fig 7: Sliding Roof
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

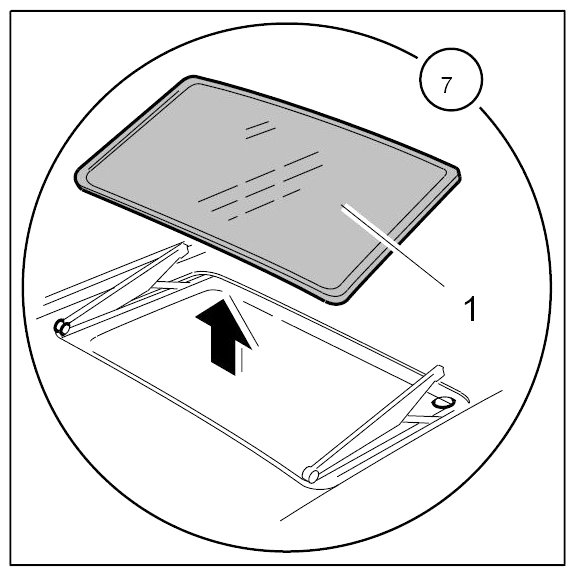

Remove sunroof panel.

Fig 8: Removing Sunroof Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
