Adjusting Sunroof Panel

Adjust height -X- of sunroof panel at front → Test and adjustment value: 0 mm-1 mm

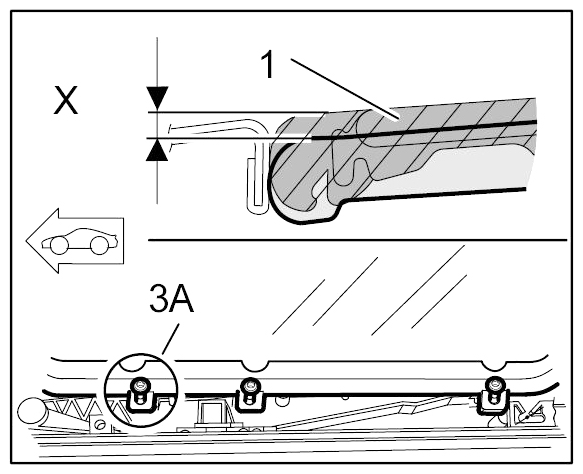

Fig 1: Identifying Height X Of Sunroof Panel At Front Adjustment Dimensions
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten fastening screw M5 -3A- to specified tightening torque. → Tightening torque: 4.5 Nm (3.5 ftlb.)+/-0.5 Nm (+/-0.5 ftlb.)

Fig 2: Tightening Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjust height -Y- of cover for sliding roof at rear → Test and adjustment value: 0 mm+1 mm

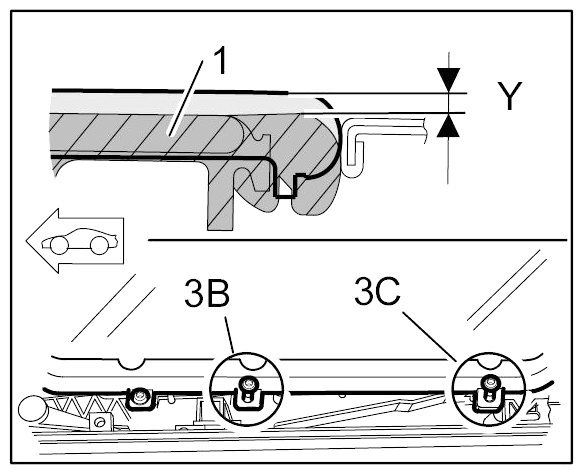

Fig 3: Identifying Height Y Of Cover For Sliding Roof At Rear Adjustment Dimension
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten fastening screw M5 -3B- to specified tightening torque. → Tightening torque: 4.5 Nm (3.5 ftlb.)+/-0.5 Nm (+/-0.5 ftlb.)

Fig 4: Tightening Fastening Screw Dimensions
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten fastening screw M5 -3C- to specified tightening torque. → Tightening torque: 4.5 Nm (3.5 ftlb.)+/-0.5 Nm (+/-0.5 ftlb.)
