Installing Rear Wind Deflector

  1. Push and twist spring -8-  onto bolt of air deflector -7- (-Arrow A-)  .

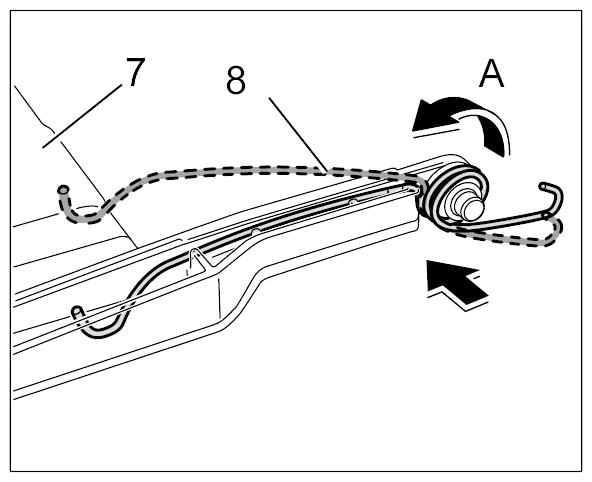

    Fig 1: Installing Rear Wind Deflector
    G09411533Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Push on plastic washer -9-  .

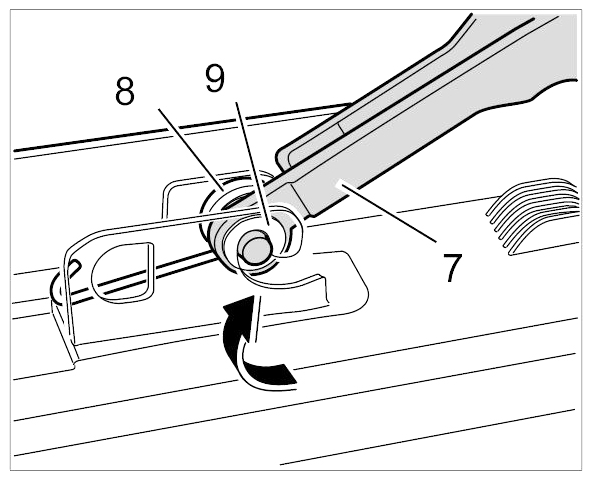

    Fig 2: Pushing Plastic Washer
    G09411534Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Position air deflector -7-  together with the spring -8-  and swing in upwards.
