Removing Air Deflector

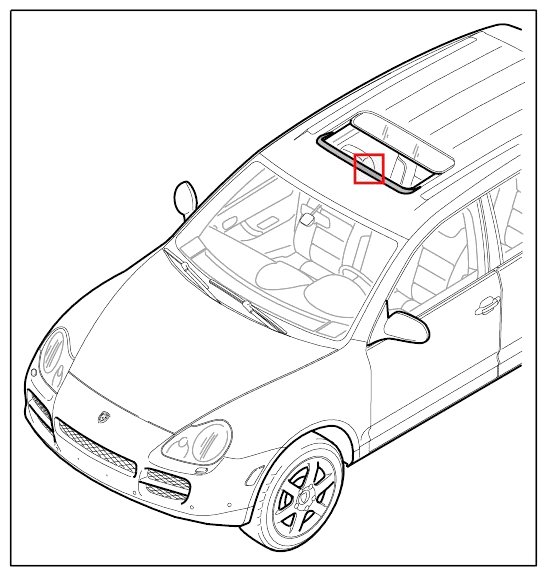

Fig 1: Identifying Air Deflector

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Open sliding roof.
1. 1.1. Open sliding roof fully.

  Fig 2: Opening Sliding Roof Fully
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove air deflector.

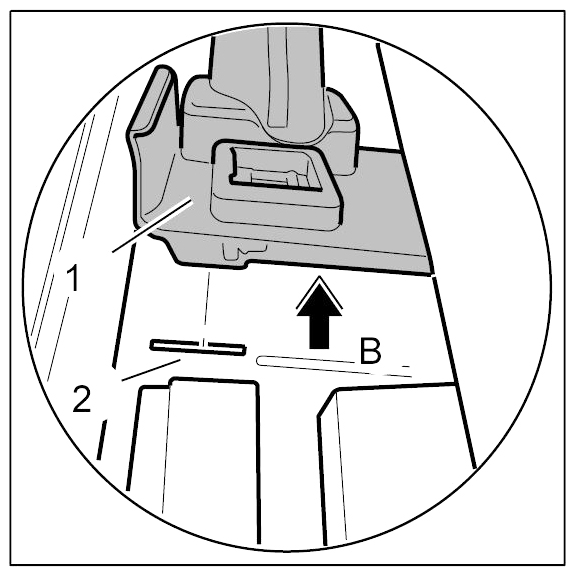

1. 2.1. Unclip air deflector -1- up to the middle of the vehicle using the hook 3370 for the front end -arrow A- and lift it up and out of the sliding roof frame -2- (-arrow B-).

  Fig 3: Removing Air Deflector
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 4: Sliding Roof Frame
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove spring.

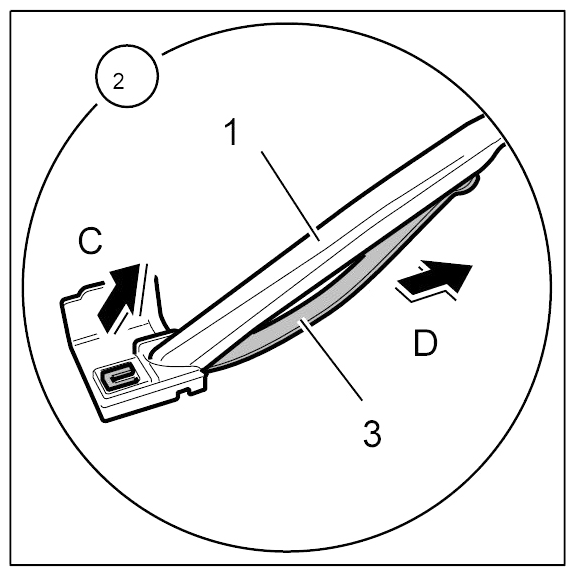

1. 3.1. Lift rear spring -3- (-arrow C-) and remove it from the air deflector -1- (-arrow D-).

  Fig 5: Removing Air Deflector And Spring
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

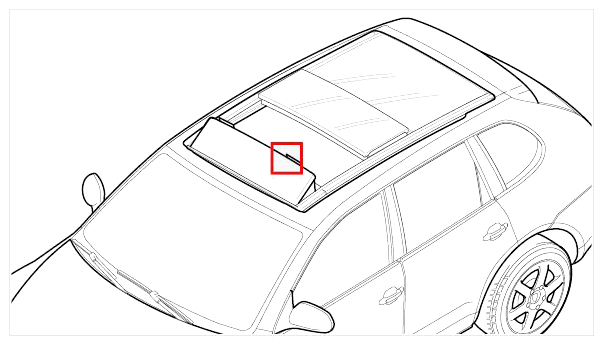

Fig 1: Identifying Installation Position Of Air Deflector

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Open roof panel 2.

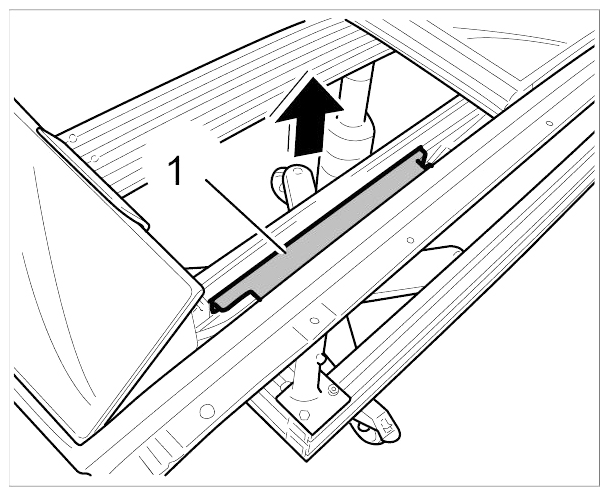

Unclip cover -1- by pulling upwards -arrow- .

Fig 2: Unclipping Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

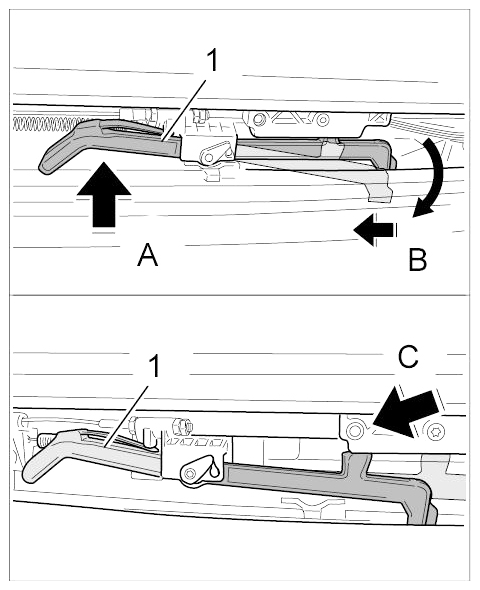

Unhook locking lever.

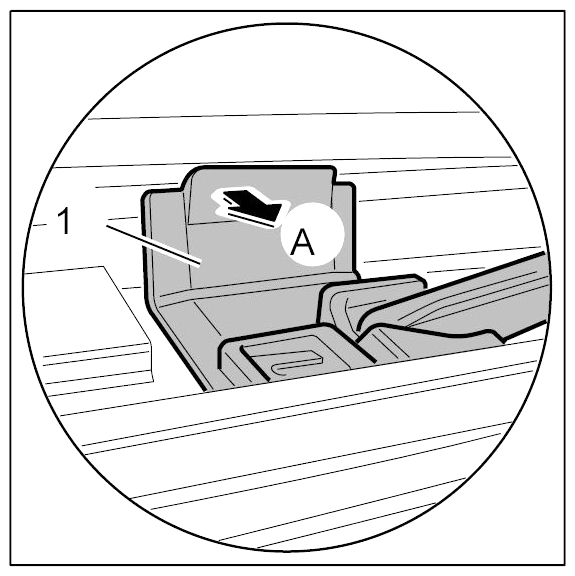

1. 3.1. Release locking lever -1- (-arrow A-) and guide it forward -arrows B- .

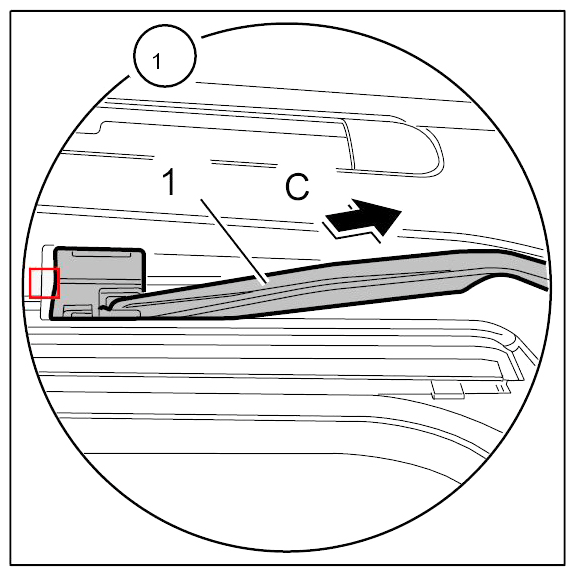

2. 3.2. Guide locking lever -1- further forward over the contour -arrow C- until the air deflector is folded in fully.

  Fig 3: Unhooking Locking Lever
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

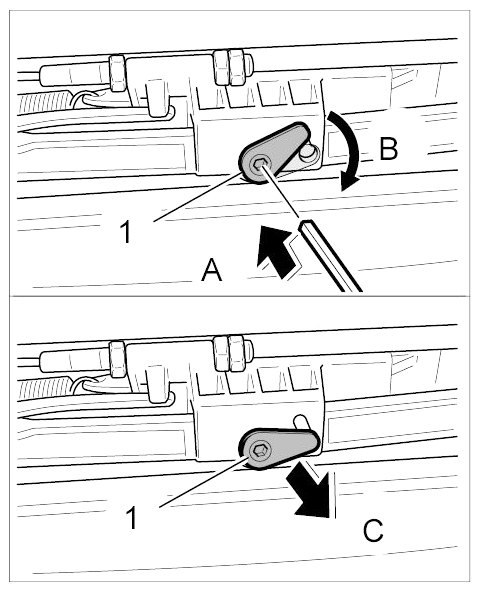

Release and remove bearing pin.
1. 4.1. Insert a hexagon wrench into the bearing pin -1- (-arrow A-) and release the bearing pin -1- by turning it -arrow B- .
2. 4.2. Lift up bearing pin -1- and remove it -arrow C- .

  Fig 4: Releasing And Removing Bearing Pin
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

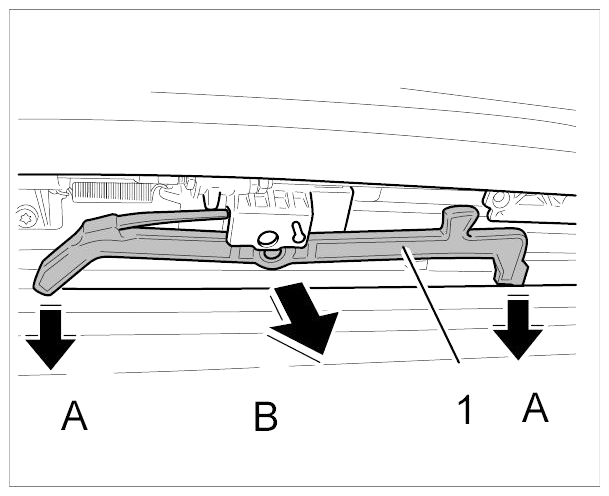

Remove locking lever.
1. 5.1. Guide locking lever -1- out of the mount -arrows A- and lift it up to remove it -arrow B- .

  Fig 5: Removing Locking Lever
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

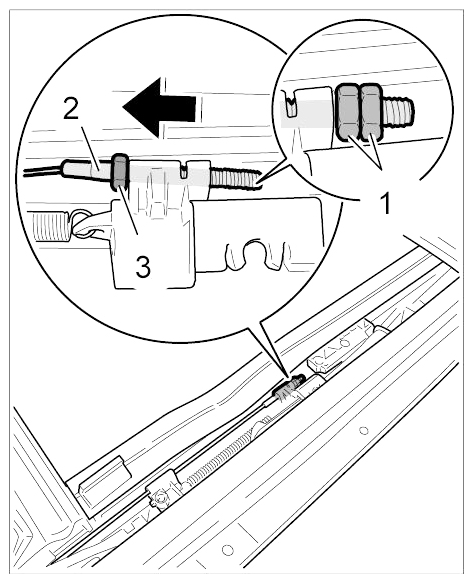

Loosen actuating cable.
1. 6.1. Unscrew lock nuts -1- on the actuating cable -2- .
2. 6.2. Disengage actuating cable -2- (-arrow-).
3. 6.3. Unscrew adjusting nut -3- on the actuating cable -2- .

  Fig 6: Loosening Actuating Cable
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

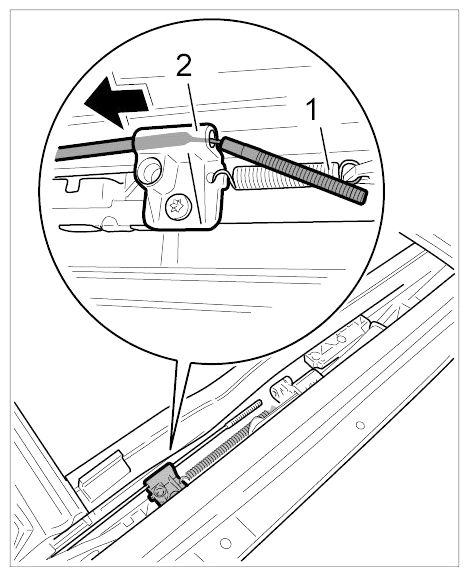

Pull actuating cable -1- out of the holder -2- (-arrow-) .

Fig 7: Removing Actuating Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

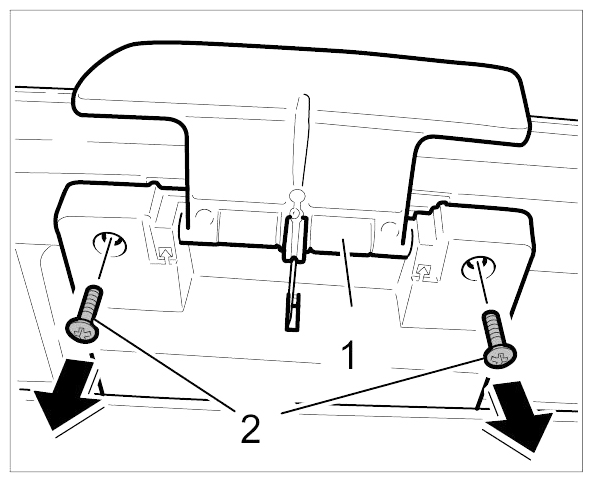

Unscrew fastening screws -2- and remove air deflector -1- .

Fig 8: Removing Air Deflector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
