Teaching The Panorama Roof The Limit Positions

→ Move objects out of the range of movement.

Information

• When the maximum duration of operation (> 40 seconds) is exceeded, the fault code 0409 (Rotary switch emergency button signal is permanently displayed) can be stored in the control unit.
• Initialisation must be completed fully as otherwise the roof cannot be operated electrically.
• If initialisation is interrupted or terminated, the entire procedure must be repeated.

1. Switch on ignition and turn rotary switch to the position "Close roof fully". Wait until the roof remains in any position.
2. Hold the rotary switch in this position -arrow-  . The closing operation starts after approx. 5 seconds. Keep the rotary switch pressed until the sun blind and the roof are closed. First the sun blind is closed; then the lid of the roof assembly is closed, opened briefly, and closed again. The rear lid of the roof assembly only closes after the rotary switch is released -arrow-  .

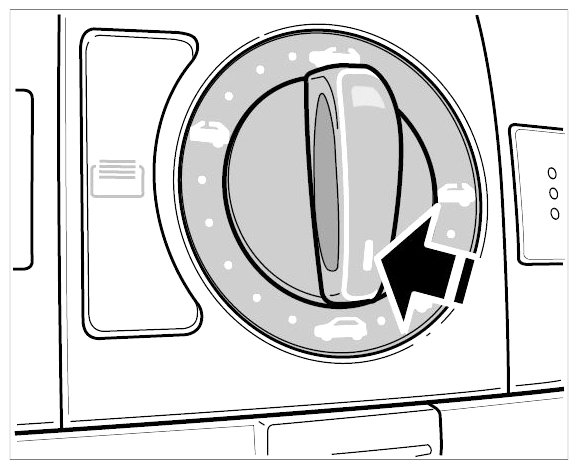

   Fig 1: Turning Rotary Switch

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Relieve the seals from strain by briefly opening and then closing the roof again.
4. Read out the fault memory with the Porsche System Tester and remedy any faults.
