Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Applying sealant Dimension X Application depth 4 mm

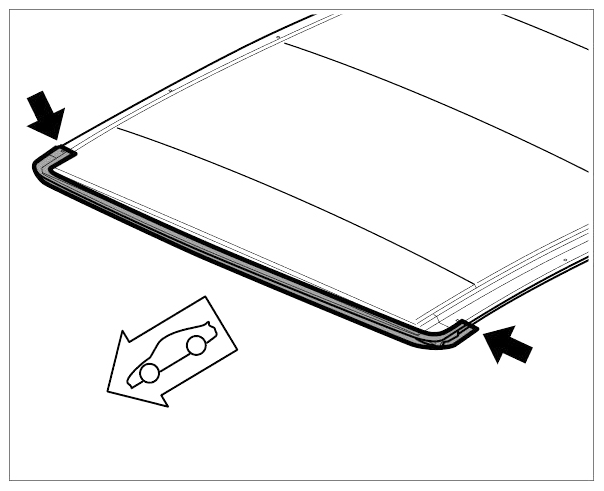

G09411403

Sealing area

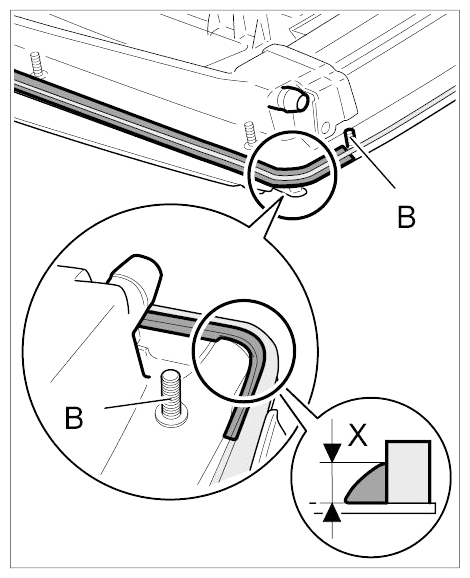

G09411404

Applying sealant
Mount for roof assembly to roof frame reinforcement Item -5- (M6 thread) Tightening torque 10 Nm (7.5 ftlb.) +/-0.5 Nm (+/-0.3 ftlb.)
