Combined Procedure (Handling Double Cartridge Press)

Information

1. Preparing cartridge components A and B -H5, H6-

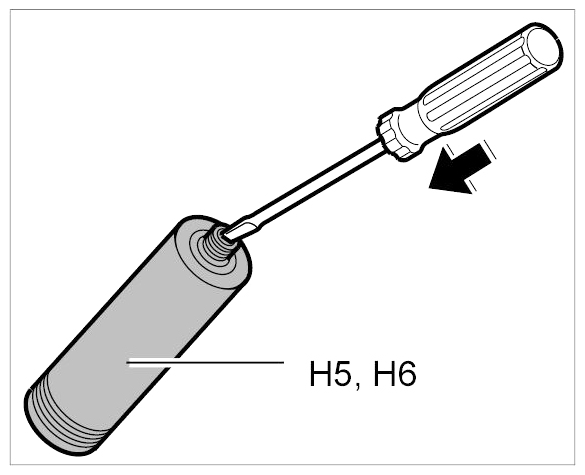

   1. 1.1. Pierce the membrane in the nozzle connection of components A and B (aluminium cartridge) -H5-  with a screwdriver and extend the opening. Remove flanged cover on end of cartridge.
      Fig 1: Removing Flanged Cover On End Of Cartridge

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Screwing on mixing nozzle -H7-
   1. 2.1. Screw both cartridges onto the mixing nozzle.
3. Placing mixing cartridge into the double-cartridge gun
   1. 3.1. Move pressure piston back fully.
   2. 3.2. Insert double cartridge -H5, H6-  into the bonding gun -A-  .
4. Press out the adhesive
   1. 4.1. By activating the valve -arrow-  allow the pressure piston to move out slowly until both components of the bonding material emerge at the mixing pipe.
   2. 4.2. Wipe off the emerging adhesive.
5. Screwing on processing nozzle -H8-
   1. 5.1. Screw processing nozzle -H8-  onto the mixing nozzle -H7-  .
6. Align processing nozzle
   1. 6.1. Turn the processing nozzle on the mixing nozzle until the illustrated position is reached.

      Information

      • In this position, the closed surfaces must be visible at the horizontal mixing nozzle from above and below and the mixing blade of the mixer insert from the sides.
7. Mixing adhesive components

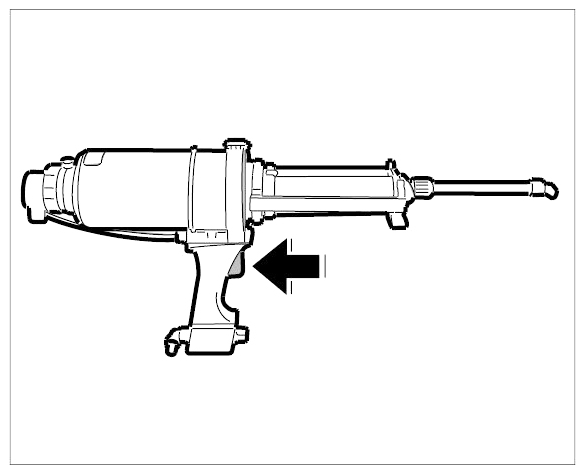

   1. 7.1. By activating the valve -arrow-  allow the pressure piston to move out slowly until the adhesive is visible in the processing pipe.
      Fig 2: Activating Valve

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Affixing car window

   Information

   • In order to ensure that the substance is completely mixed, apply a 30 mm long adhesive bead of fresh adhesive to a piece of cardboard before processing.

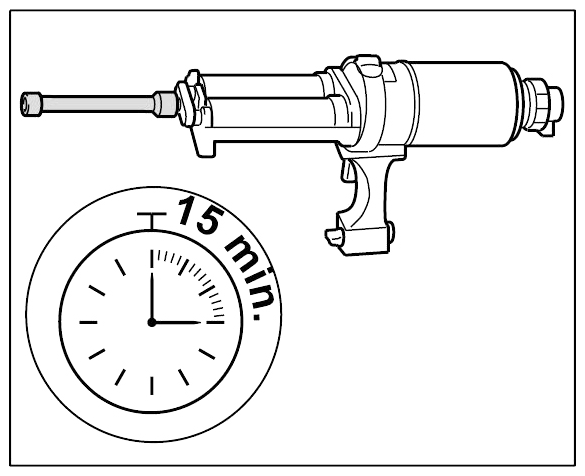

   • The bonding material has an open time of → working time: 15 min , the bonding material must be applied and the window must be assembled within this time.
   • Do not load bonded parts until hardening is complete!
   • If the contents of the cartridge is not completely used up, the processing nozzle should not be removed until the adhesive has hardened on the cartridge. A new processing nozzle must be used for subsequent bonding work.
   1. 8.1.
      Fig 3: Identifying Bonding Material Working Time

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
