Installing Rear Seat

→ Always replace fastening screws for rear seats.

→ Before screwing in the new fastening screws, clean the thread holes with an M 10 tap.

Information

To insert the rear seats, fold over the hinge parts on the rear seat.

1. Guide rear seats sideways into the vehicle and position them.
2. Fold rear seats -1, 2-  up and align them.
   Fig 1: Releasing Rear Seats

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

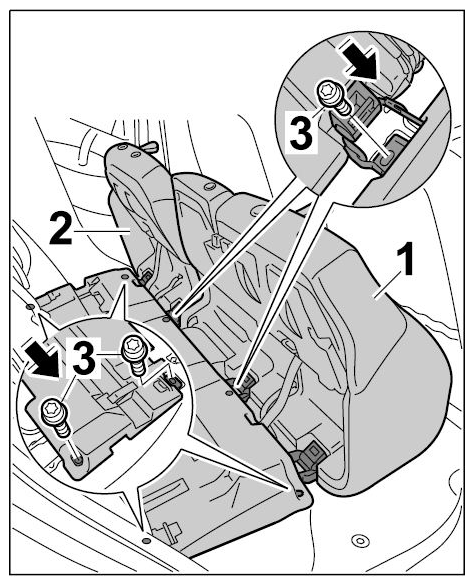

3. Secure rear seats -1, 2-  with the fastening screws -3-  (-arrows-  ). → Tightening torque: 44 Nm (33 ft lbs.)+/-4 Nm (+/-3 ft lbs.)
   Fig 2: Installing Rear Seats

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

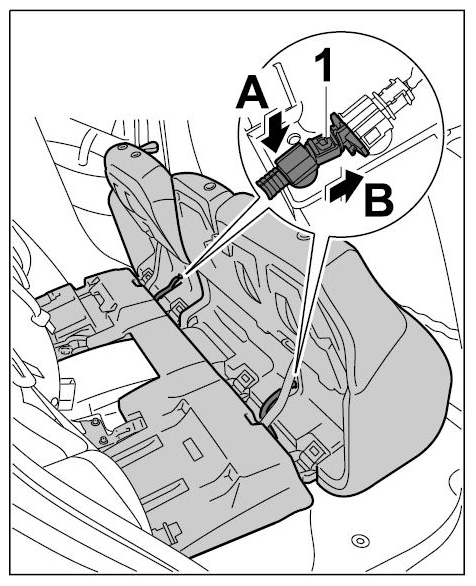

4. Clip in connector for heated seats -1-  (-arrow A-  ).
   Fig 3: Clipping Heated Seat Connector

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Connect connector -1-  (-arrow B-  ) until the locking lugs lock with an audible click.
6. Fold rear seats -1, 2-  down and lock them -arrows-  .
   Fig 4: Locking Rear Seats

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
