Removing Rear Headliner

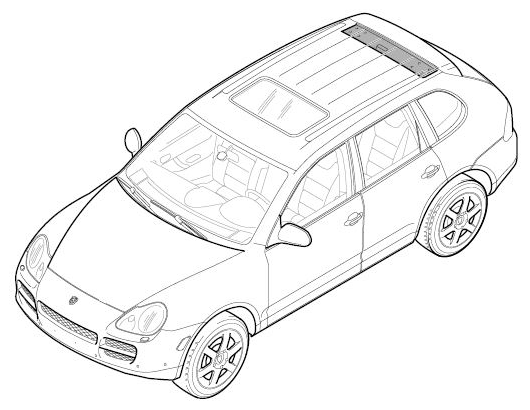

Fig 1: Overview Of Rear Roof Lining

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

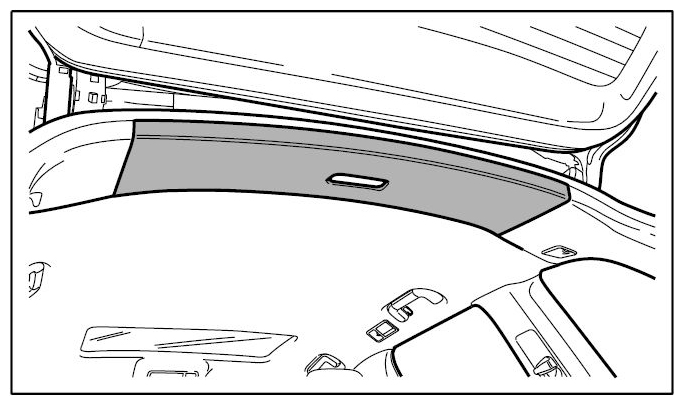

Fig 2: Identifying Rear Headliner

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

In order to reduce the unclipping forces and thereby the risk of damage during removal, the process must take place at the accessible connection points using a suitable tool.

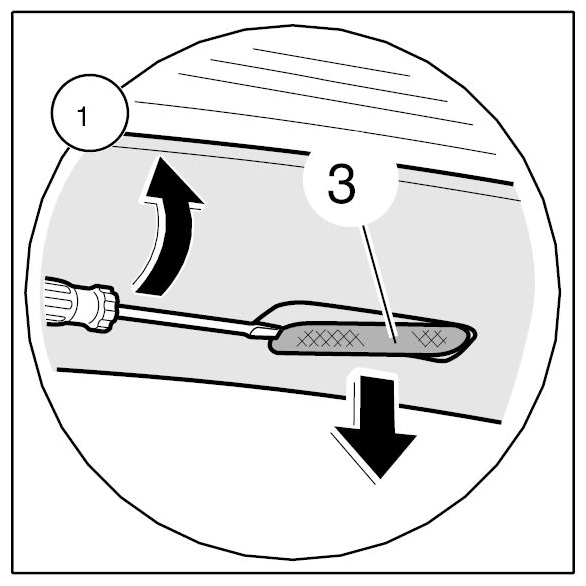

1. Unclip courtesy lights -3-  on the headliner.
   Fig 3: Unclipping Courtesy Lights On Headliner

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

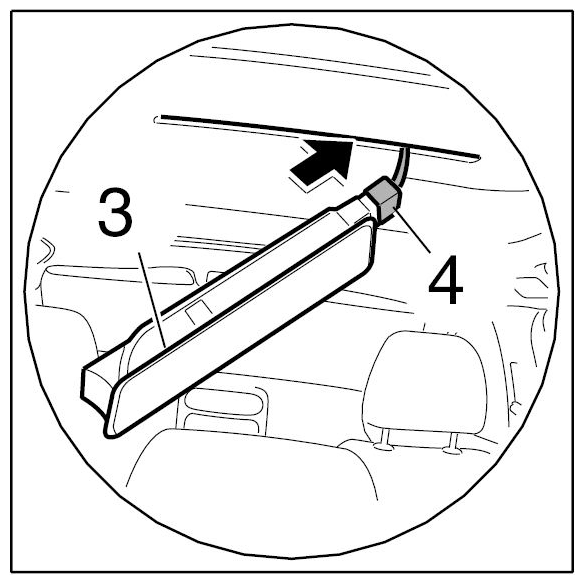

2. Pull off plug -4-  .
   Fig 4: Pulling Off Plug

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

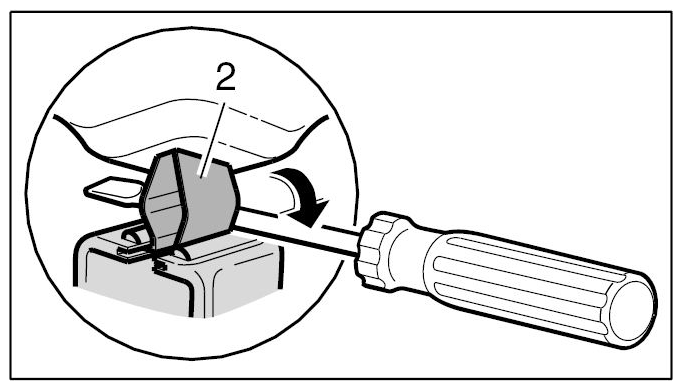

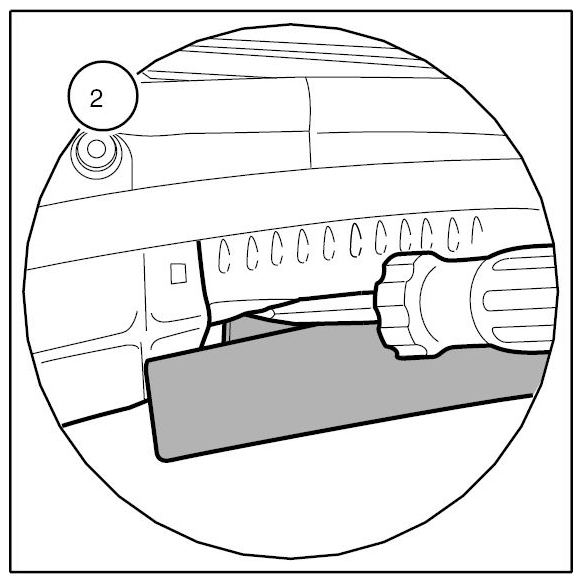

3. Unclip headliner at marked positions. To do so, lift the lining slightly at the rear and lever the clip connection -2-  out using a screwdriver.
   Fig 5: Unclipping Headliner At Marked Positions (1 Of 2)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 6: Unclipping Headliner At Marked Positions (2 Of 2)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
