Removing Luggage Compartment Trim Panel (Loadspace Cover)

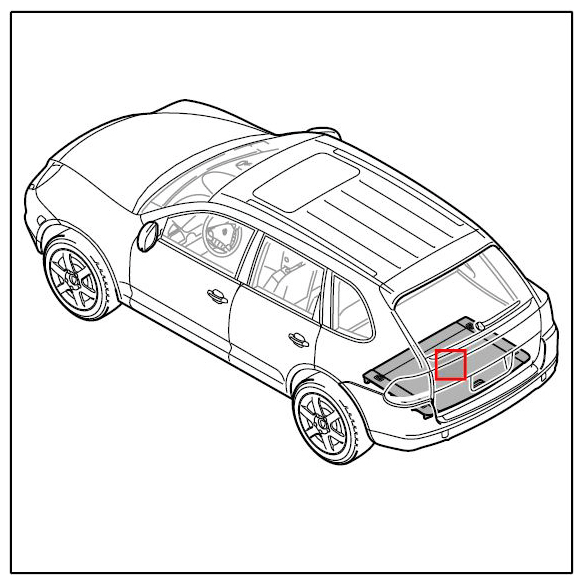

Fig 1: Identifying Luggage Compartment Trim Panel (Loadspace Cover)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

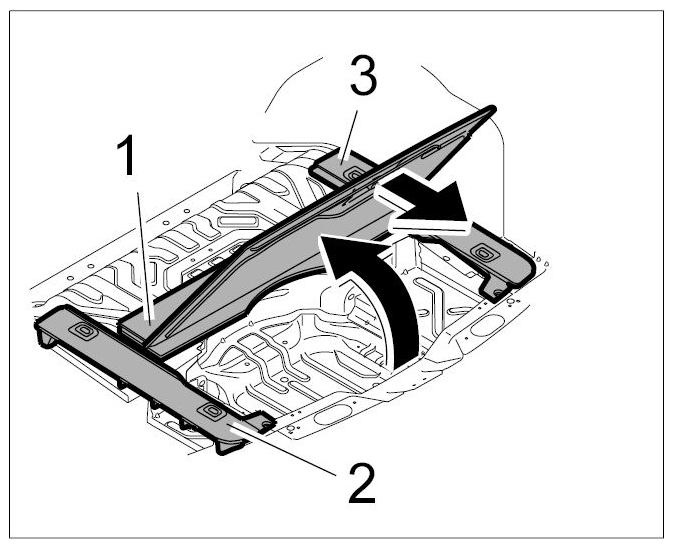

1. Disengage loadspace cover -1-  from front connection points by pulling towards the rear.
   Fig 2: Disengaging Loadspace Cover From Front Connection Points

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

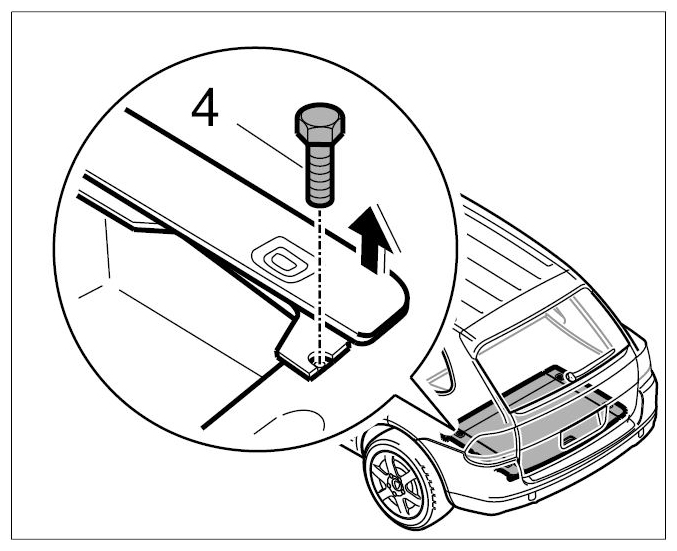

2. Unscrew fastening screws -4-  .
   Fig 3: Unscrewing Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Unfold lashing tie-down ring strap.

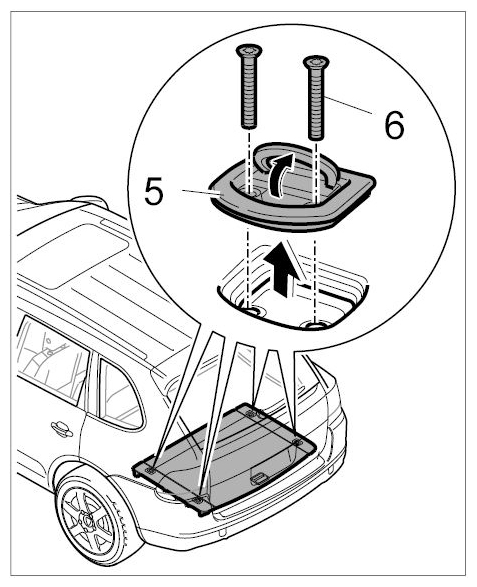

4. Unscrew fastening screws -6-  .
   Fig 4: Removing Lashing Tie-Down Ring Strap

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Remove tie-down rings -5-  .
   Fig 5: Removing Tie-Down Rings

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

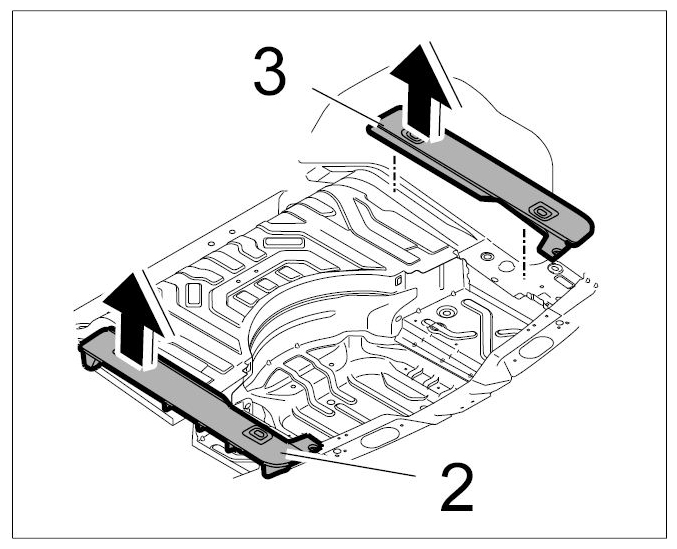

6. Remove loadspace floor at sides -2, 3-  .
   Fig 6: Removing Loadspace Floor At Sides

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
