Removing Cover For Seat Connection

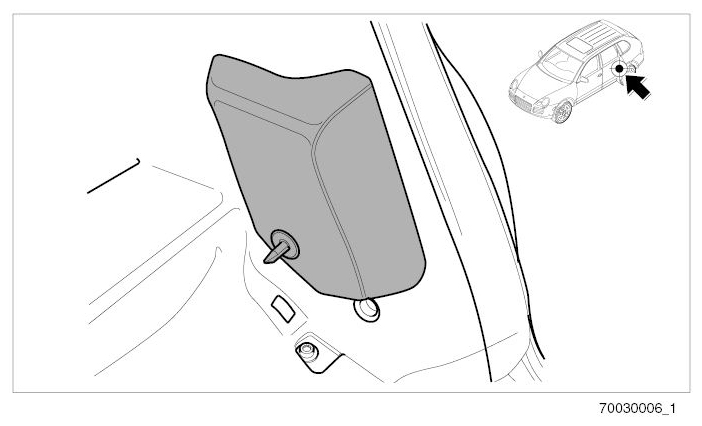

Fig 1: Identifying Cover For Seat Connection

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• When removing the backrest, the bearing sleeve -8- may come loose and catch on the pin.
  Fig 2: Removing Side Trim Panel For Luggage Compartment

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

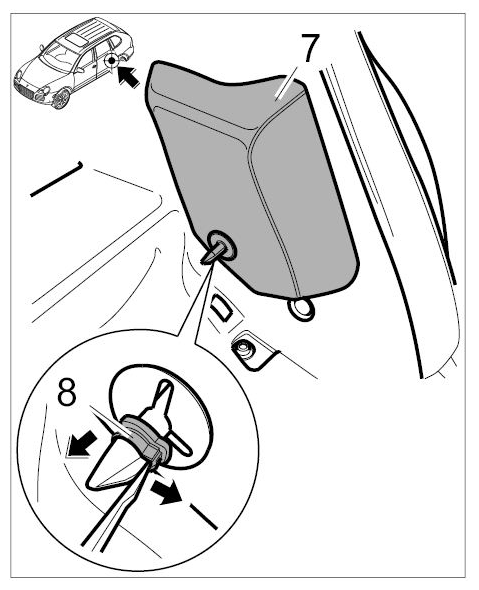

1. Remove bearing sleeve.
   1. 1.1. Disengage bearing sleeve -8-  from bolt.
   2. 1.2. Clip bearing sleeve -8-  into backrest.
      Fig 3: Removing Bearing Sleeve

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      • Only on vehicles with first generation bearing sleeves.

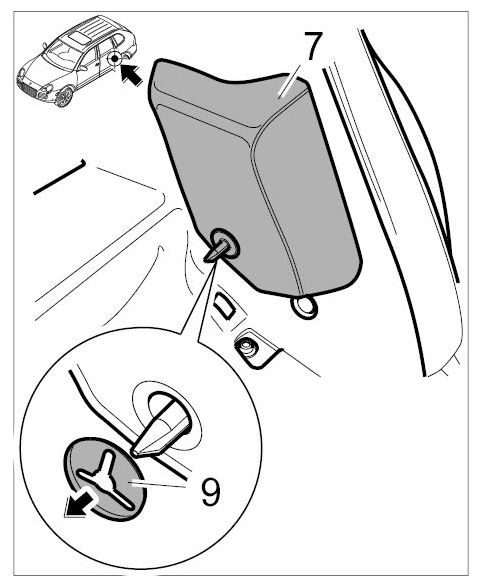

2. Remove lock washer.
   1. 2.1. Undo and remove lock washer -9-  .
      Fig 4: Removing Lock Washer

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

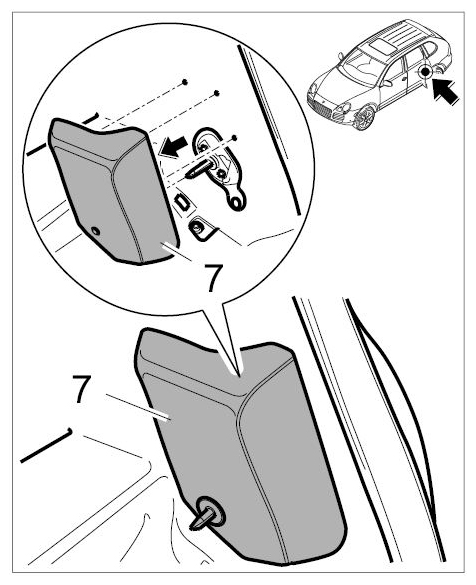

3. Unclip and remove cover for seat connection -7-  .
   Fig 5: Removing Cover For Seat Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
