Removing Rear Logo

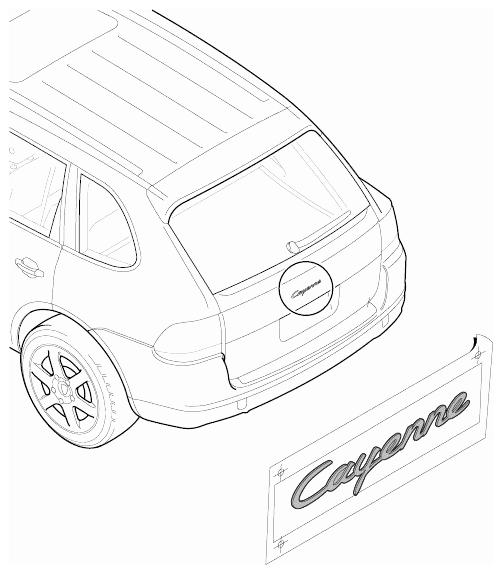

Fig 1: Identifying Rear Logo
G09412249Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Heat the rear lid
    1. 1.1. Heat rear lid in area of the logo using the hot-air gun v.a.g 1416.

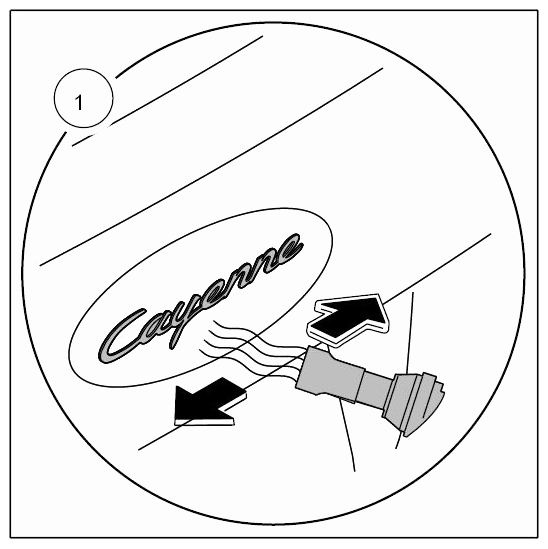

      Fig 2: Heating Rear Lid In Area
      G09412250Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Lift up the logo using a plastic spatula
    1. 2.1. Move a plastic spatula under the logo and lift it up.

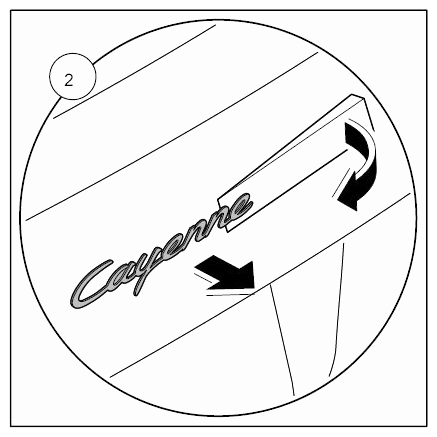

      Fig 3: Lifting Up Logo
      G09412251Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Clean the rear lid
    1. 3.1. Dissolve the adhesive residue on the cover using a silicone remover and remove it.

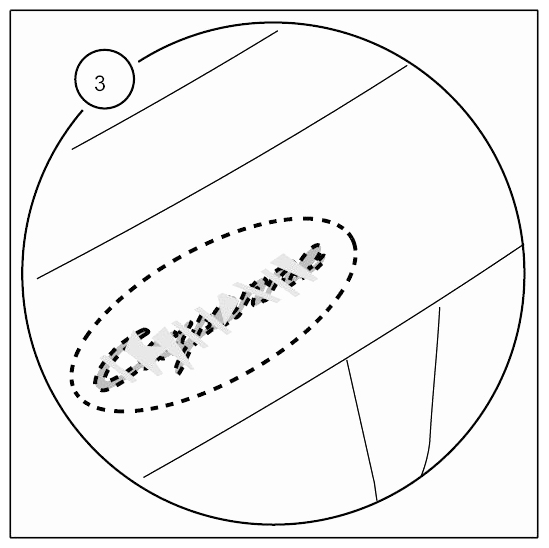

      Fig 4: Cleaning Logo Of Rear Lid
      G09412252Courtesy of PORSCHE CARS NORTH AMERICA, INC.
