Removing Cowl Panel Cover

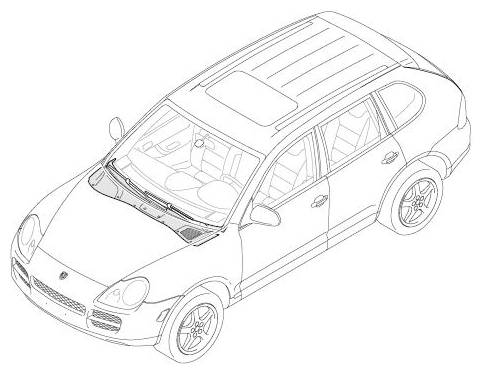

Fig 1: Identifying Cowl Panel Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Opening bonnet
Removing side cover
1. 2.1. Unclip side cover -1- from the A-post.

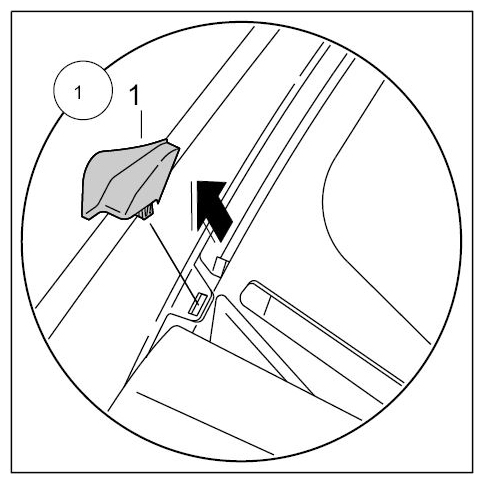

  Fig 2: Removing Side Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Removing wiper arms
1. 3.1. Remove wiper arms -2- → Removing Wiper Arms .

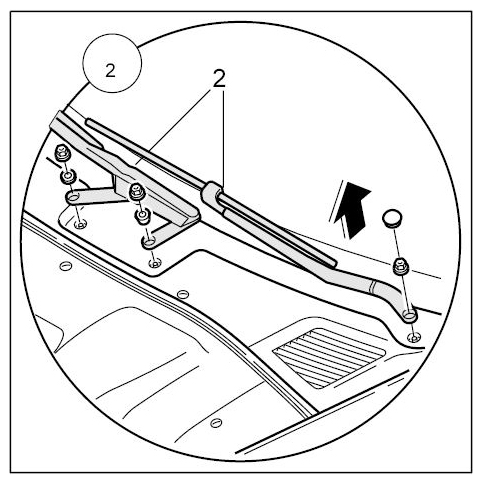

  Fig 3: Removing Wiper Arms
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Releasing fastening clips
1. 4.1. Turn fastening clips -4- by 90° and pull out.

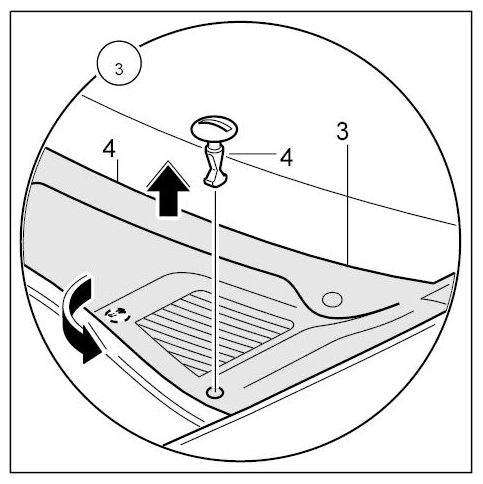

  Fig 4: Removing Fastening Clips
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Removing cowl panel cover
1. 5.1. Remove radiator tank cover upwards -arrow- .

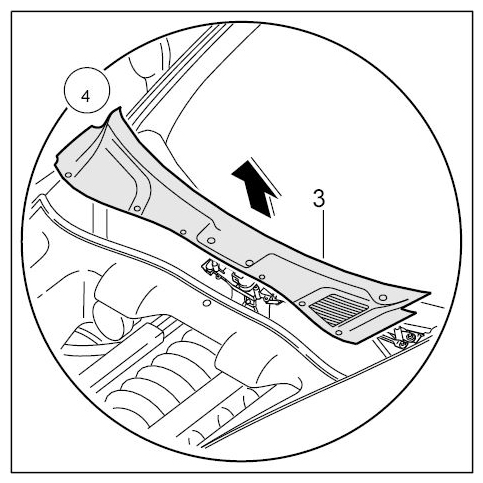

  Fig 5: Removing Cowl Panel Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
