Installing Outer Sill Cover

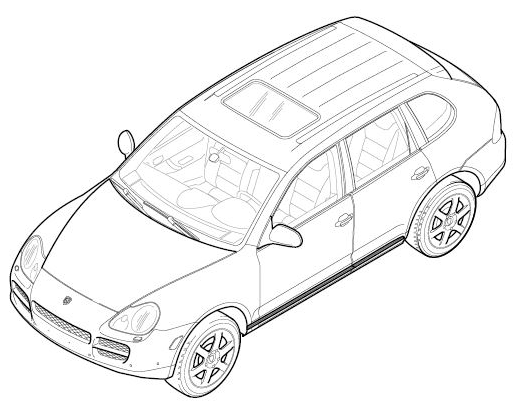

Fig 1: Identifying Outer Sill Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Checking fastening clips
1. 1.1. Check fastening clip -3- , replace if necessary.

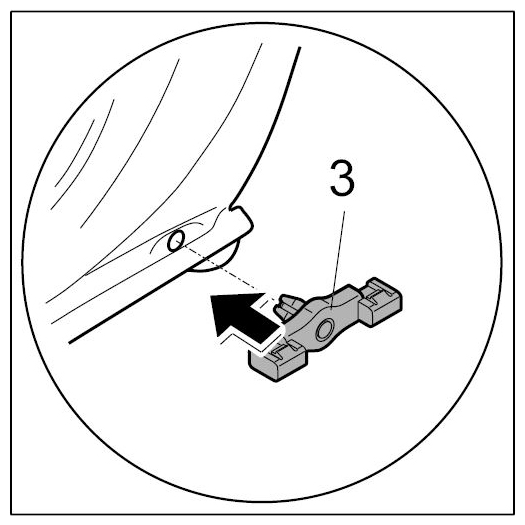

  Fig 2: Installing Fastening Clip
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

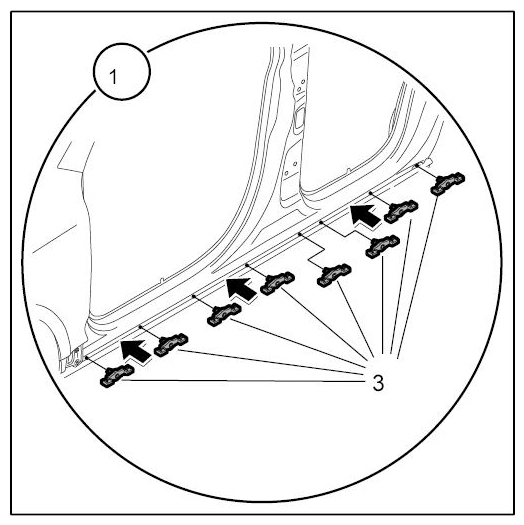

  Fig 3: Installing Fastening Clip
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clipping in front sill cover
1. 2.1. Position front sill cover -1- and clip in according to the sequence -a to e- as shown.

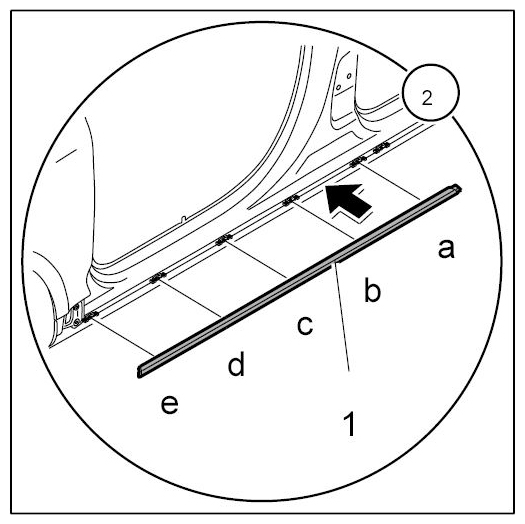

  Fig 4: Positioning Front Sill Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clipping in rear sill cover
1. 3.1. Position rear sill cover -2- and clip in according to the sequence -h to f- as shown.

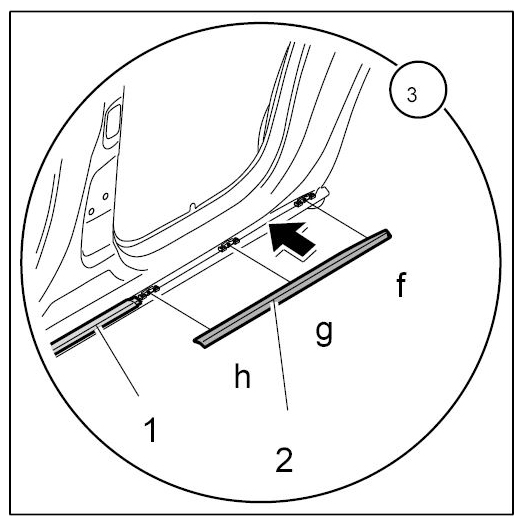

  Fig 5: Positioning Rear Sill Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
