Assembling front apron

Fig 1: Identifying Front Apron

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

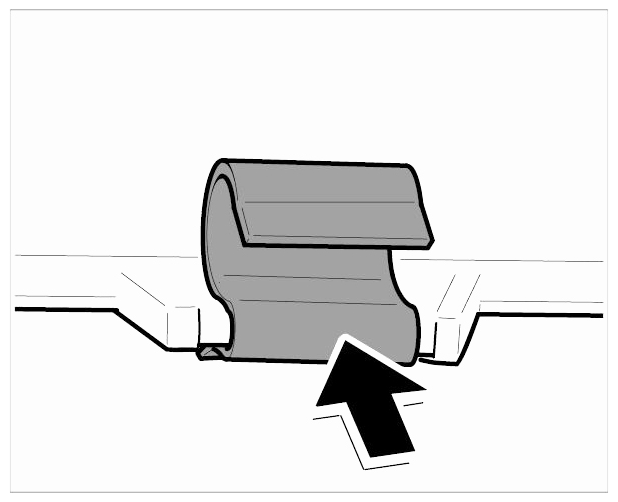

Push retaining clips on to the front apron -arrow- .

Fig 2: Pushing On Retaining Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert spray nozzle guide -2- into the front apron -arrow- from above and secure with the fastening screw -1- .

Fig 3: Installing Spray Nozzle Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
