Removing Rear Lid Release Motor

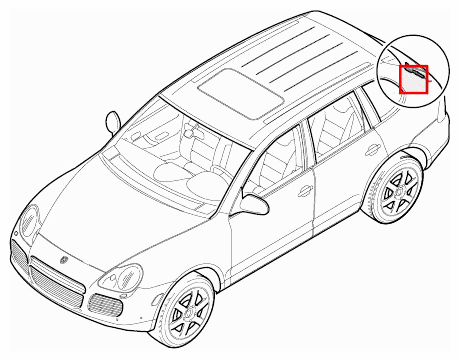

Fig 1: Overview Of Motor For Rear Lid Release
G09421544Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Press connector together -arrows-  and pull out connector.

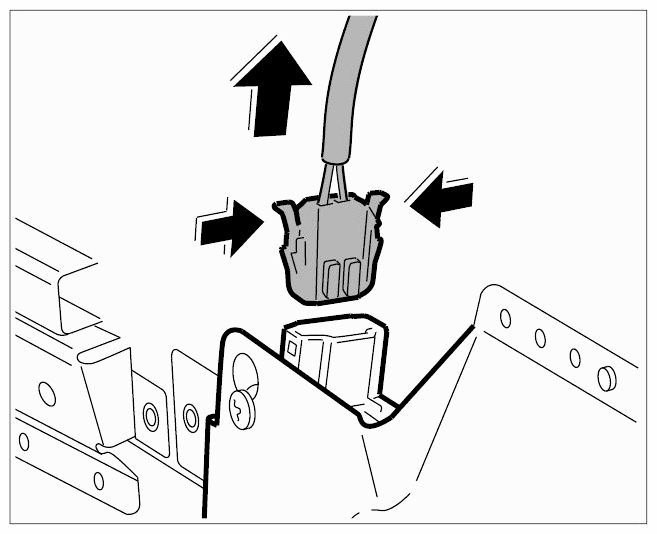

    Fig 2: Pulling Off Plug
    G09421545Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Pull control rod out of lid release.

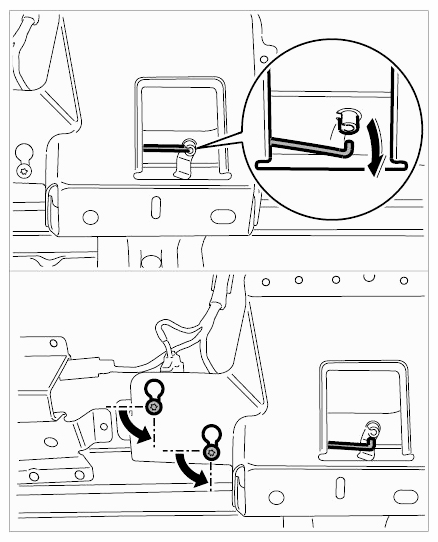

    Fig 3: Pulling Control Rod Out Of Lid Release
    G09421546Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Undo the three fastening screws on the motor.
  4. Remove motor from the mounting point by lifting up and then pulling out to the side.

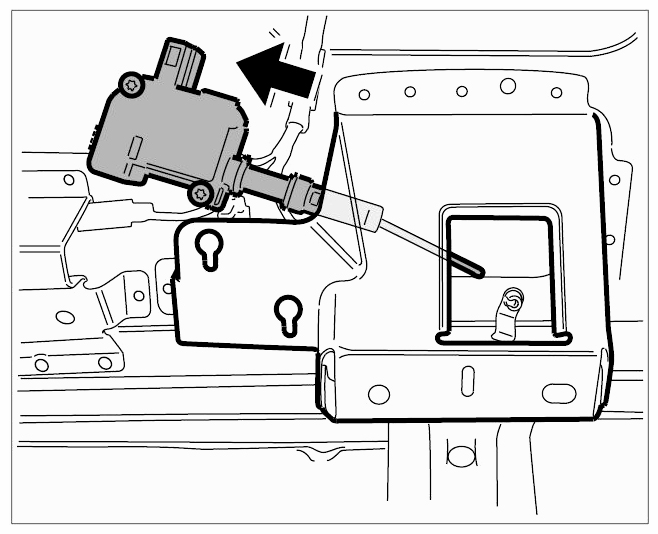

    Fig 4: Removing Motor
    G09421547Courtesy of PORSCHE CARS NORTH AMERICA, INC.
