Removing Rear Lid Buzzer

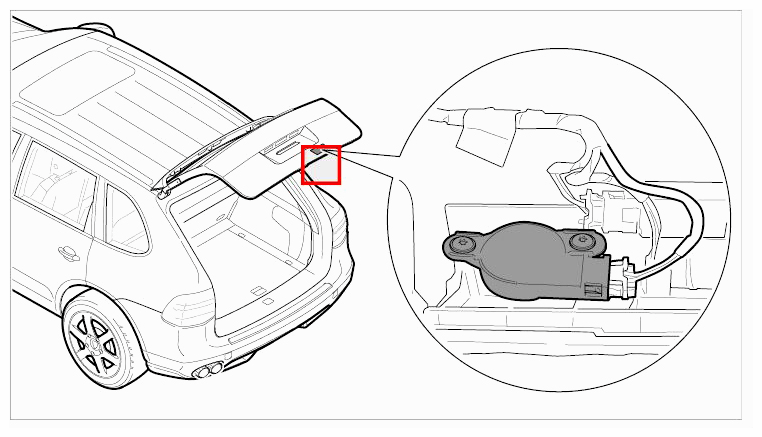

Fig 1: Identifying Installation Position Of Rear Lid Buzzer
G09421532Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew fastening screws -1-  and remove rear lid buzzer -2-  from the rear lid trim panel.

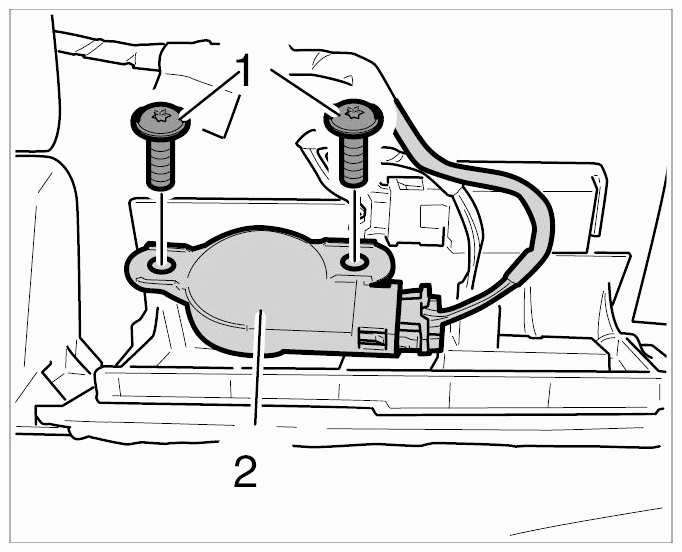

    Fig 2: Removing Rear Lid Buzzer
    G09421533Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Release connector -arrows A-  and pull it off the rear lid buzzer -arrow B-  .

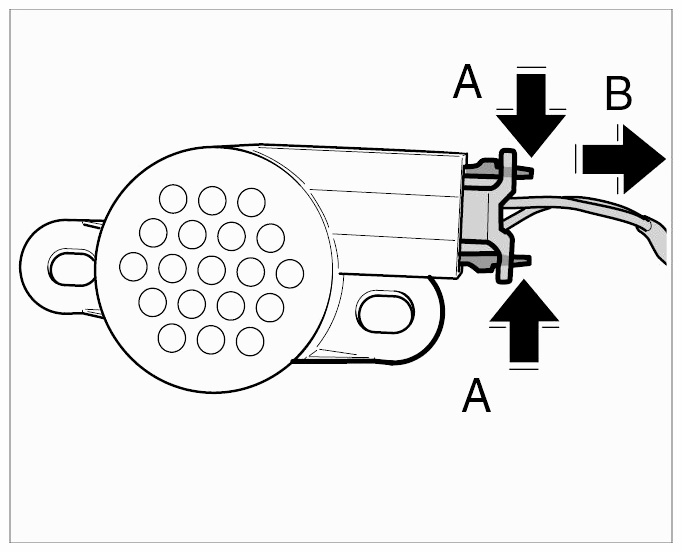

    Fig 3: Pulling Off Connector On Rear Lid Buzzer
    G09421534Courtesy of PORSCHE CARS NORTH AMERICA, INC.
