Checking Hydraulic Oil Level

  1. Hold hydraulic unit horizontally and check hydraulic oil level at the reservoir using the cross hairs marking.

    The hydraulic oil level must not drop below the minimum mark.

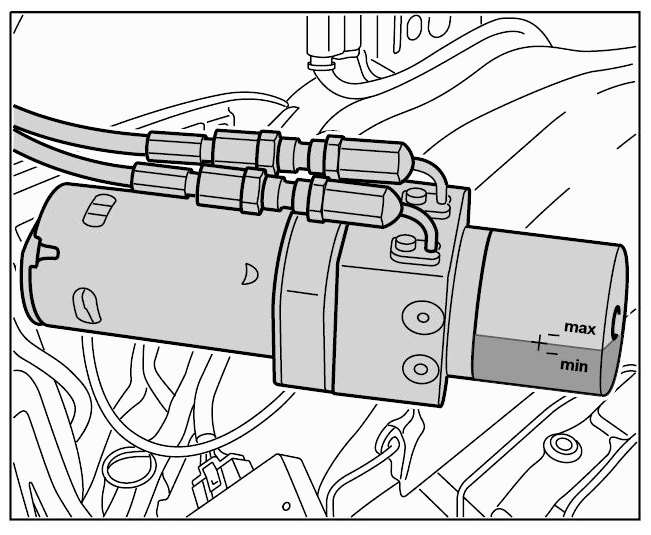

    Fig 1: Checking Hydraulic Oil Level
    G09421492Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. A hydraulic oil level that is too low must be adjusted accordingly.
