Removing Filler Flap

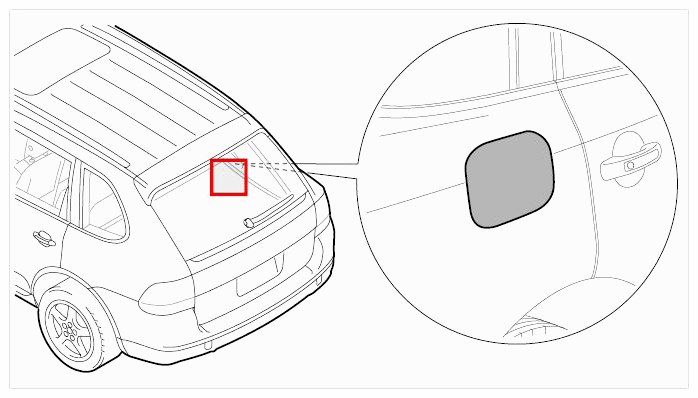

Fig 1: Identifying Position Of Filler Flap

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Open filler flap -3- .

Fig 2: Removing Filler Flap Of Mounting Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

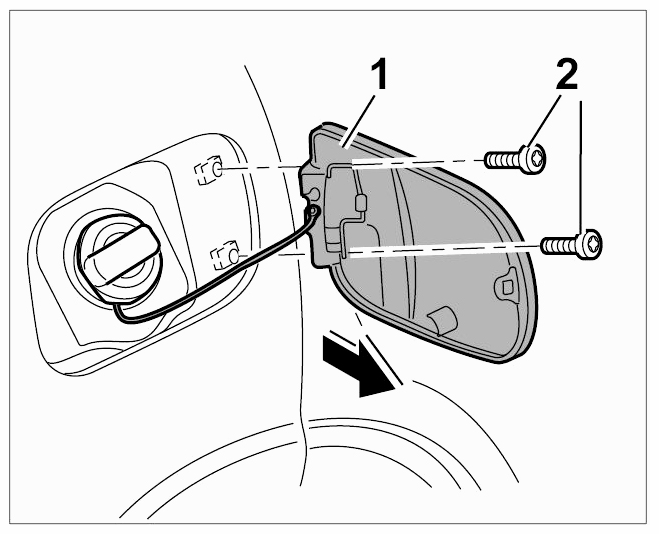

Unscrew fastening screws -2- and withdraw filler flap until fastening clip for securing cord is accessible.

Fig 3: Removing Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

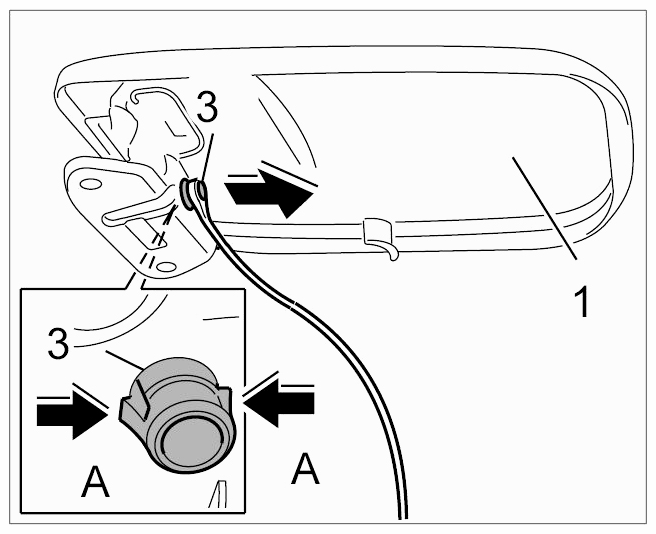

Release and unclip fixing clip -4- (-arrows A-) .

Fig 4: Locating Fixing Clip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove filler flap -3- .

Fig 5: Removing Filler Flap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- The tank cap with securing cord remains on the vehicle.
