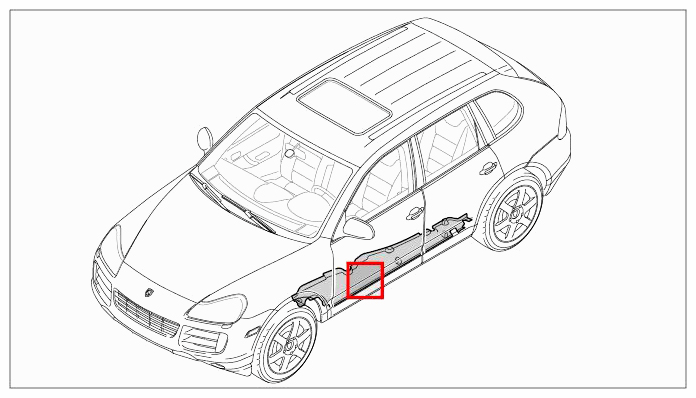

Removing Centre Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

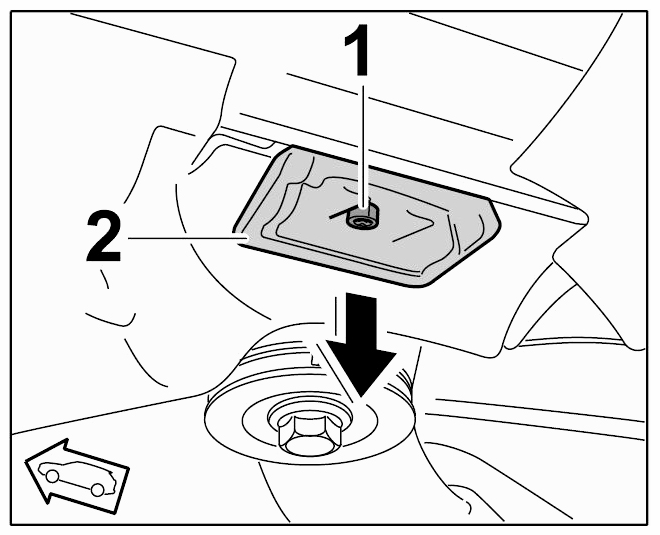

- Unscrew fastening screw -1-
and remove rear lifting platform holder -2-
in a downward direction -arrow-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

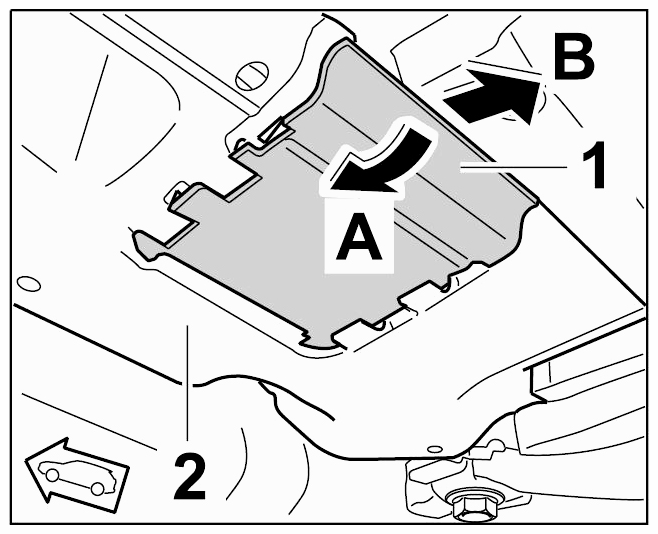

- Unclip cover -1-
at the centre cover -2-
in a downward direction -arrow A-
and pull it out -arrow B-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

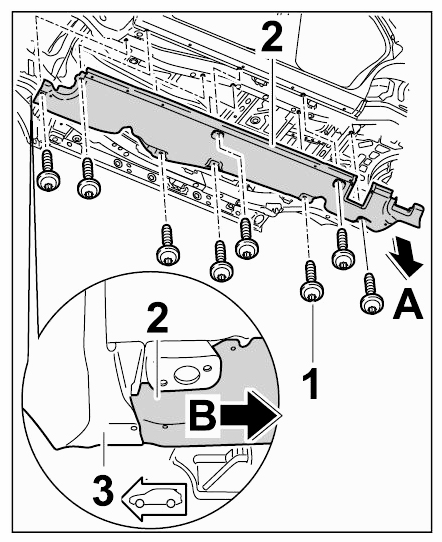

- Unscrew fastening screws -1-
and remove centre cover -2-
in the rear area by pulling it down from the body -arrow A-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Pull out centre cover -2-
in the front area under the wheel housing liner -3-
(-arrow B-
).
