Removing Lower Side Member Reinforcement

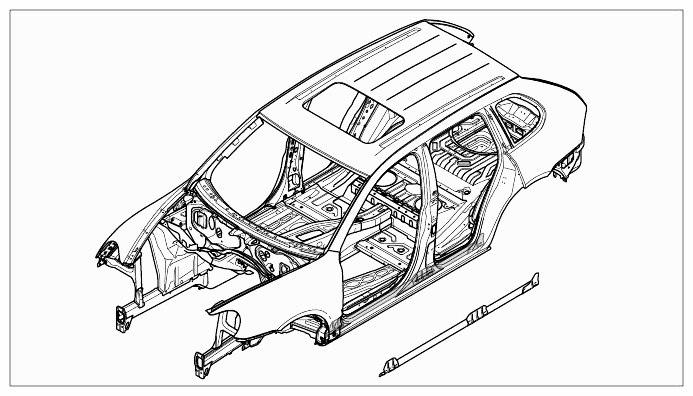

Fig 1: Lower Side Member Reinforcement Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• All straightening work on the body in the connection area of the sheetmetal parts to be replaced must be completed before the damaged parts are removed.

1. Remove lower side member.
   1. 1.1. Replacing outer lower side member
2. Mill off the lower side member reinforcement in the area of the pillars.
   1. 2.1. Mill off the welded joint between the lower side member reinforcement and the pillar reinforcement using a spotweld cutter (areas -A-  , -B-  , -C-  ).

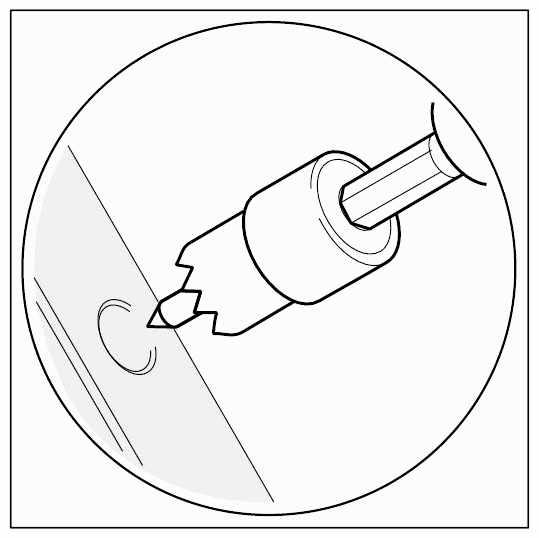

      Fig 2: Drilling Lower Side Member Reinforcement

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

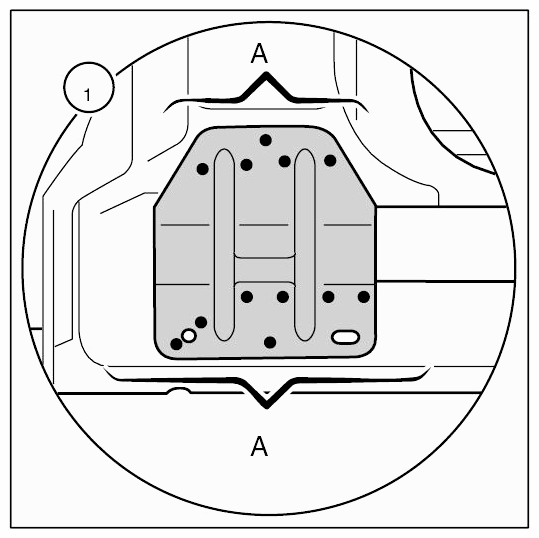

      Fig 3: Identifying Front Door Side Of Drilling Area (A)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

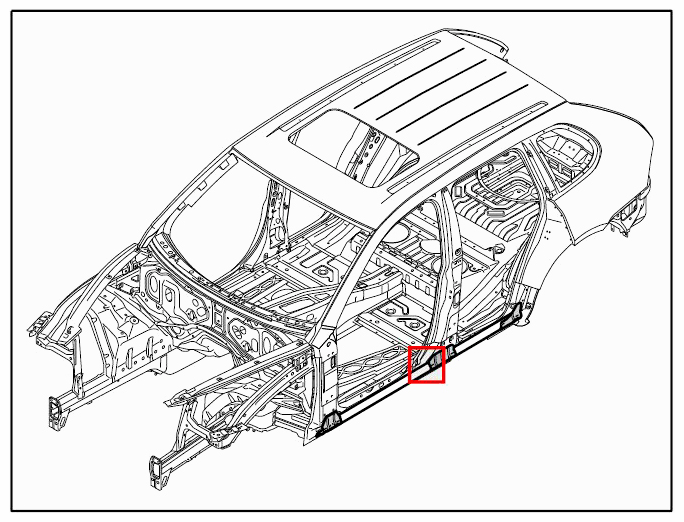

      Fig 4: Identifying Front Of Drilling Area Points (A)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      Fig 5: Identifying Center Door Side Of Drilling Area (B)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

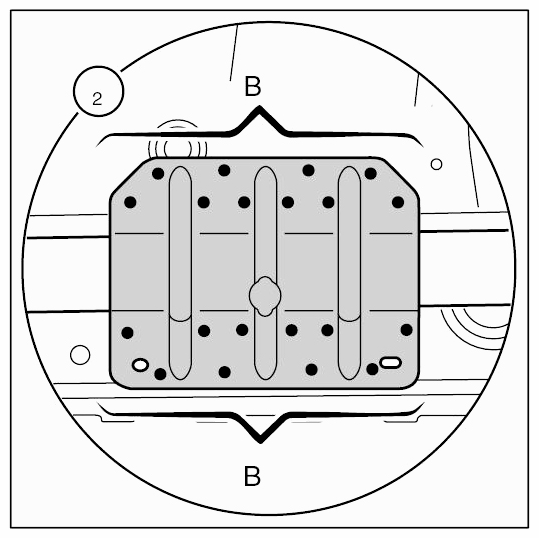

      Fig 6: Identifying Center Of Drilling Area Points (B)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

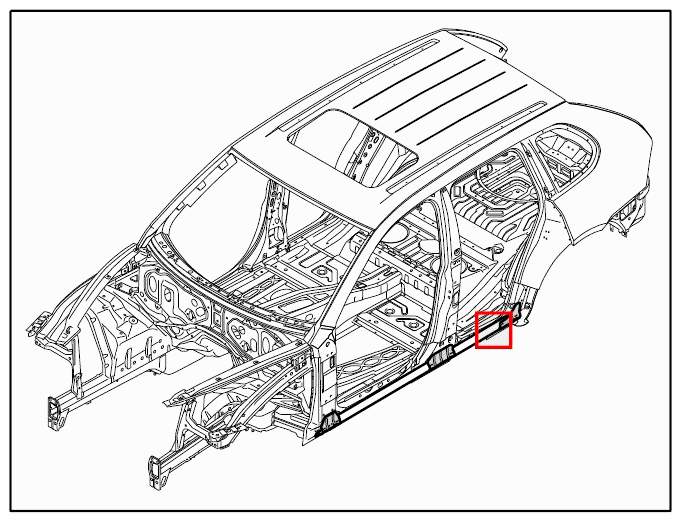

      Fig 7: Identifying Rear Door Side Of Drilling Area (C)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

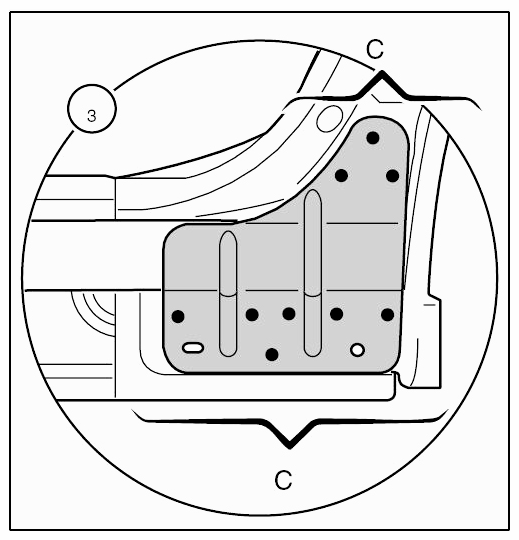

      Fig 8: Identifying Rear Of Drilling Area Points (C)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Remove lower side member reinforcement.
