Installing Seals

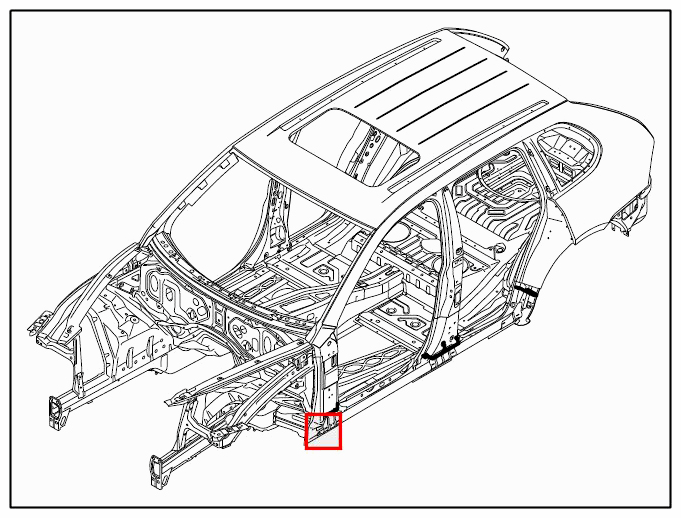

Fig 1: Overview Of Side Member (Outside)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Install lower A-pillar seal -1- .

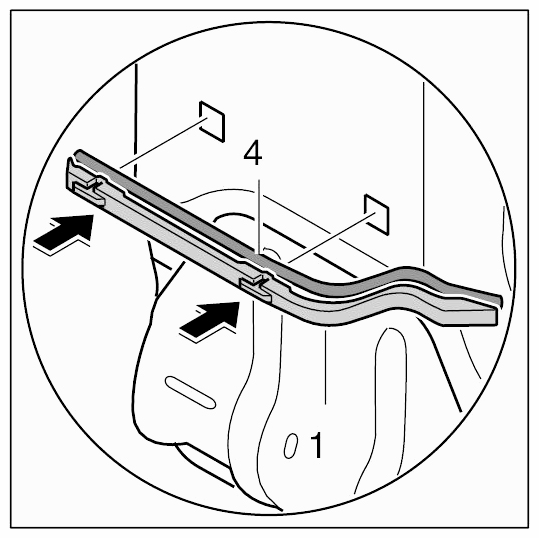

Fig 2: Installing Lower A-Pillar Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Apply a butyl sealing cord to the inner seal -4- .
2. 1.2. Place the seal against the body and press into place -arrows- .
3. 1.3. On the seal, apply body sealing compound Wurth Klebt und Dichtet -5- . Maintain the application depth -V- → Application depth: 10 mm .

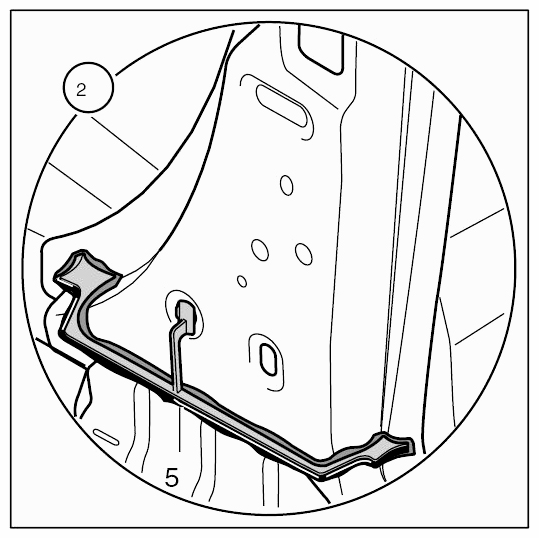

  Fig 3: Applying Body Sealing Compound
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

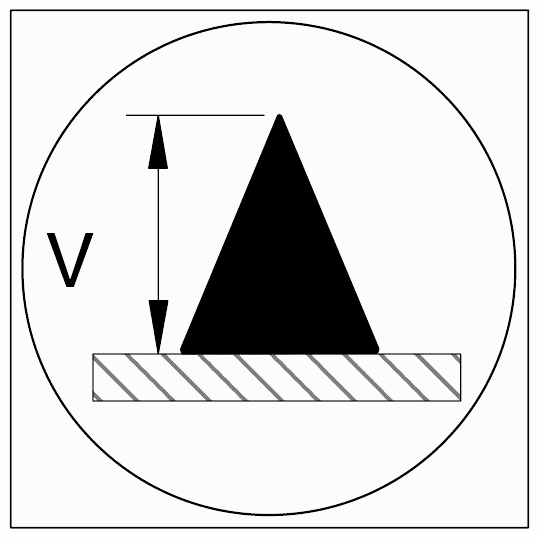

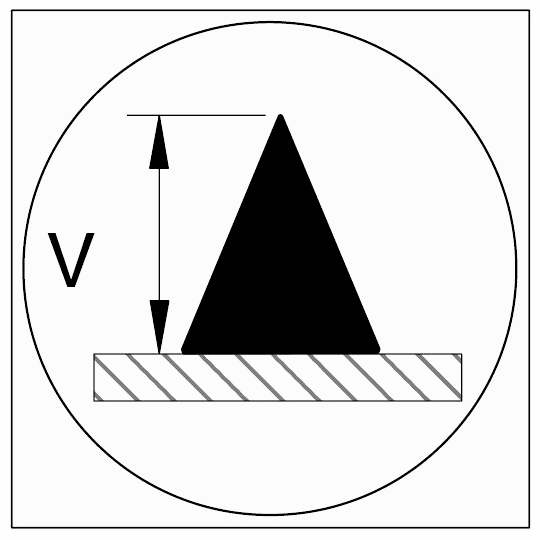

  Fig 4: Identifying Application Depth
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

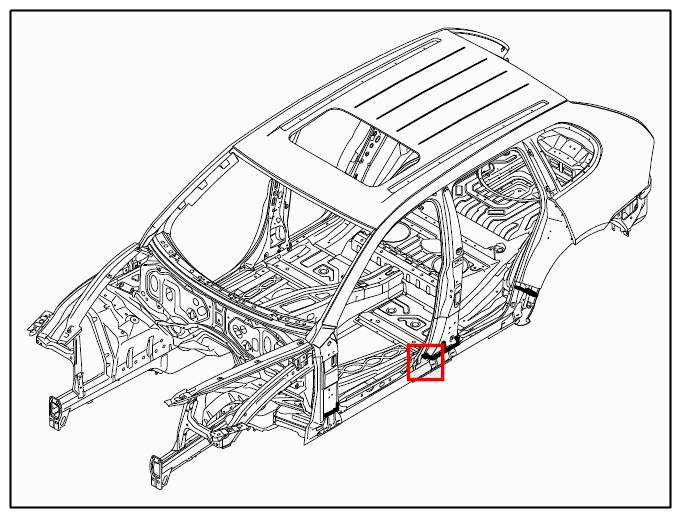

  Fig 5: Overview Of B-Pillar - Outside
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install lower B-pillar seal -2- .

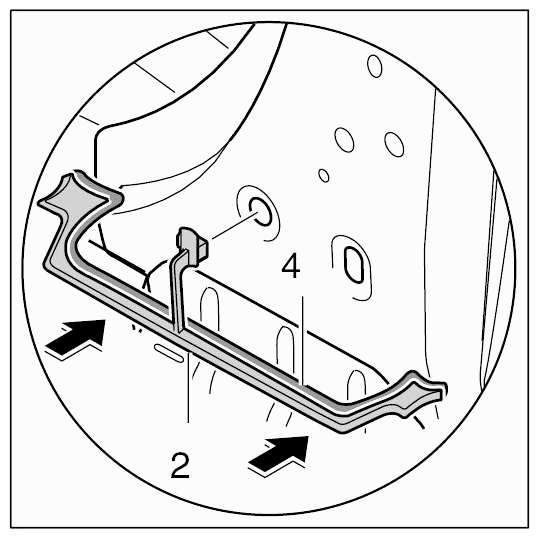

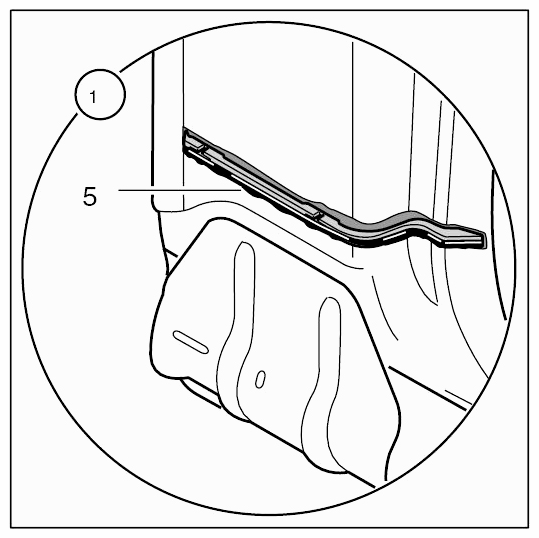

Fig 6: Installing Lower B-Pillar Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Apply a butyl sealing cord to the inner seal -4- .
2. 2.2. Place the seal against the body and press into place -arrows- .
3. 2.3. On the seal, apply body sealing compound Wurth Klebt und Dichtet -5- . Maintain the application depth -V- → Application depth: 10 mm .

  Fig 7: Identifying Body Sealing Compound
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 8: Identifying Application Depth
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 9: Overview Of C-Pillar - Outside
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install lower C-pillar seal -3- .

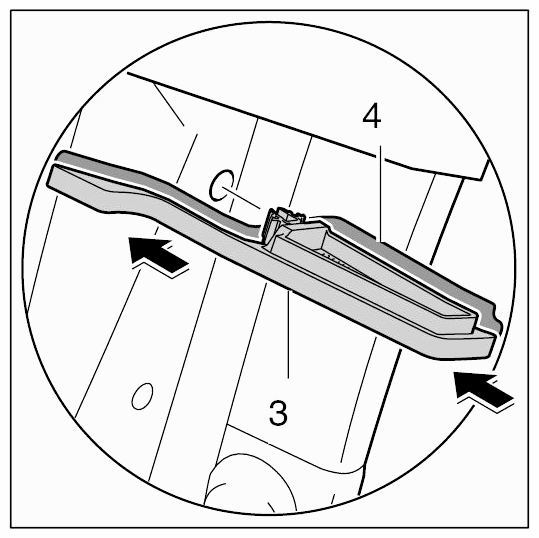

Fig 10: Installing Lower B-Pillar Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Apply a butyl sealing cord to the inner seal -4- .
2. 3.2. Place the seal against the body and press into place -arrows- .
3. 3.3. On the seal, apply body sealing compound Wurth Klebt und Dichtet -5- . Maintain the application depth -V- → Application depth: 10 mm .

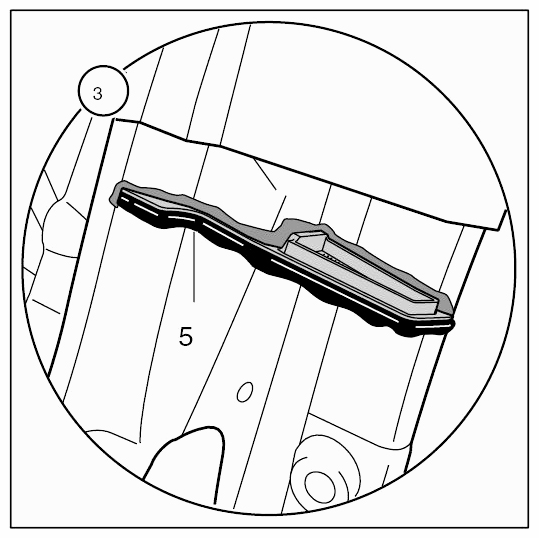

  Fig 11: Identifying Body Sealing Compound Area
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 12: Identifying Application Depth
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
