Installing Seals

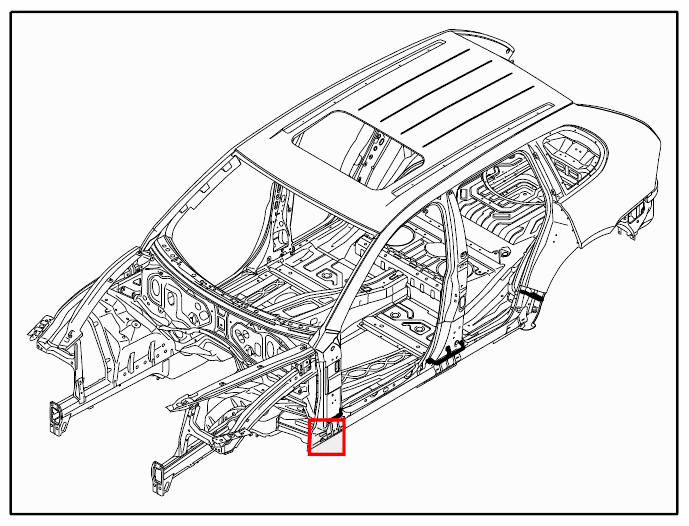

Fig 1: Overview From Outside Of Body
G09420590Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Install lower A-pillar seal -1-  .

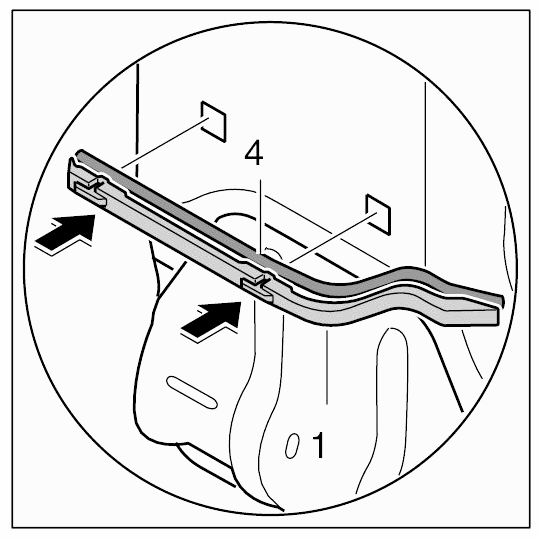

    Fig 2: Installing Lower A-Pillar Seal
    G09420591Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 1.1. Apply a butyl sealing cord to the inner seal -4-  .
    2. 1.2. Place the seal against the body and press into place -arrows-  .
    3. 1.3. On the seal, apply body sealing compound Wurth Klebt und Dichtet -5-  . Maintain the application depth -V-  → Application depth: 10 mm  .

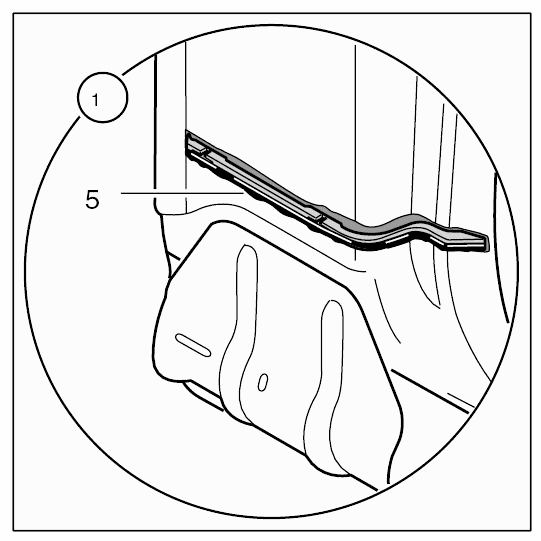

      Fig 3: Applying Body Sealing Compound Wurth Klebt Und Dichtet
      G09420592Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      Fig 4: Identifying Application Depth
      G09420593Courtesy of PORSCHE CARS NORTH AMERICA, INC.

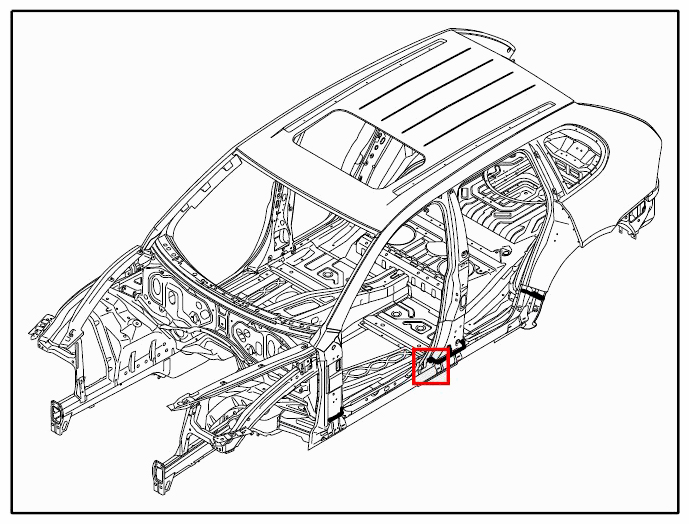

      Fig 5: Overview From Outside Of Body
      G09420594Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Install lower B-pillar seal -2-  .

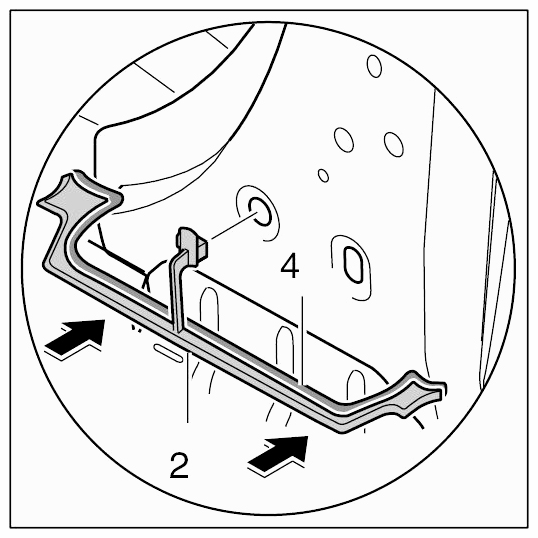

    Fig 6: Installing Lower B-Pillar Seal
    G09420595Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 2.1. Apply a butyl sealing cord to the inner seal -4-  .
    2. 2.2. Place the seal against the body and press into place -arrows-  .
    3. 2.3. On the seal, apply body sealing compound Wurth Klebt und Dichtet -5-  . Maintain the application depth -V-  → Application depth: 10 mm  .

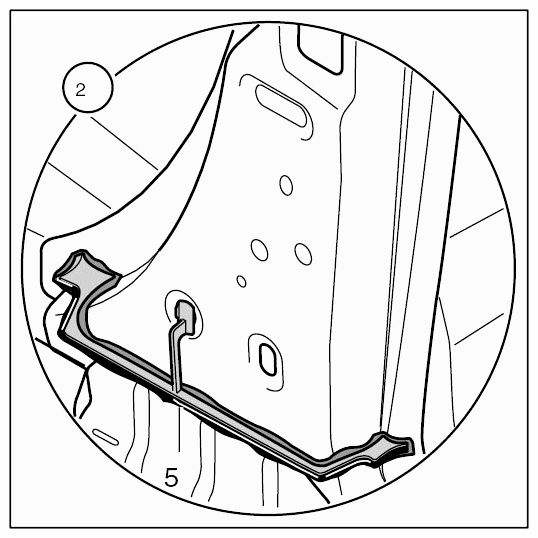

      Fig 7: Applying Body Sealing Compound Wurth Klebt Und Dichtet
      G09420596Courtesy of PORSCHE CARS NORTH AMERICA, INC.

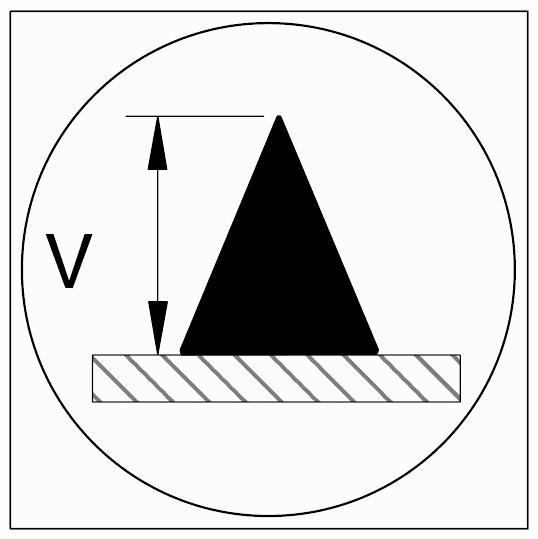

      Fig 8: Identifying Application Depth
      G09420597Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      Fig 9: Overview From Outside Of Body
      G09420598Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Install lower C-pillar seal -3-  .

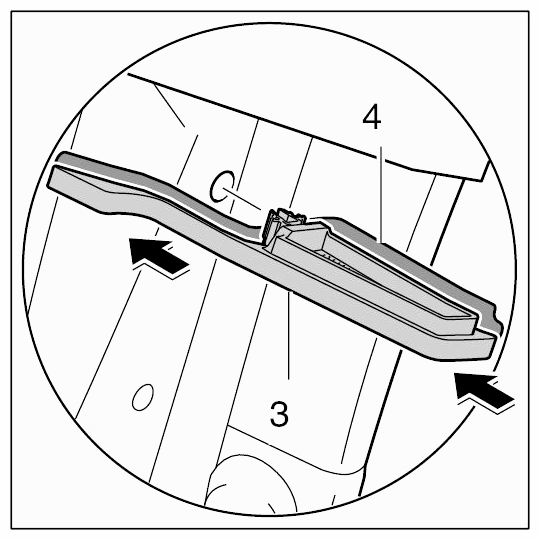

    Fig 10: Installing Lower C-Pillar Seal
    G09420599Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 3.1. Apply a butyl sealing cord to the inner seal -4-  .
    2. 3.2. Place the seal against the body and press into place -arrows-  .
    3. 3.3. On the seal, apply body sealing compound Wurth Klebt und Dichtet -5-  . Maintain the application depth -V-  → Application depth: 10 mm  .

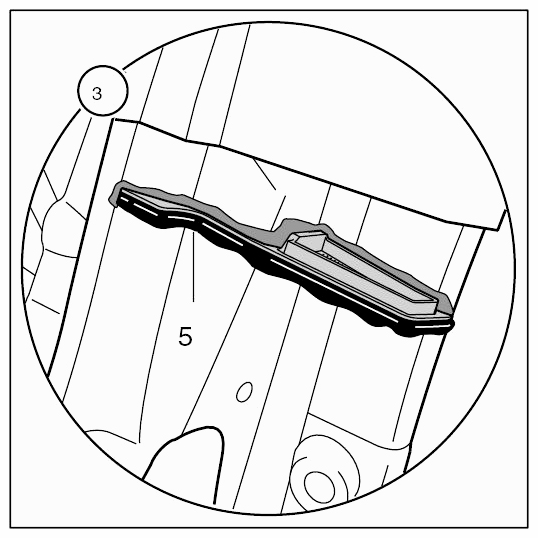

      Fig 11: Applying Body Sealing Compound Wurth Klebt Und Dichtet
      G09420600Courtesy of PORSCHE CARS NORTH AMERICA, INC.

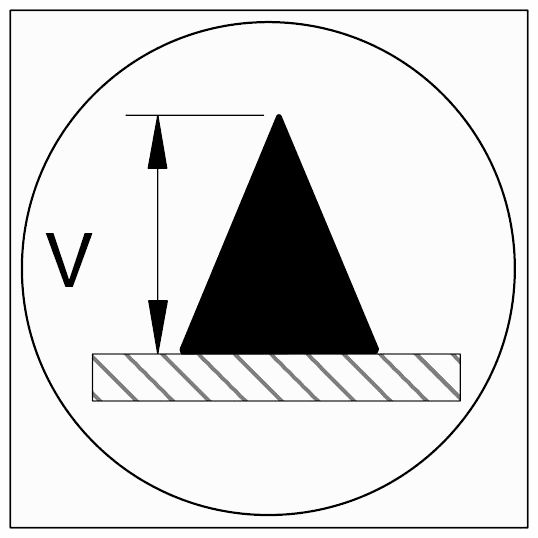

      Fig 12: Identifying Application Depth
      G09420601Courtesy of PORSCHE CARS NORTH AMERICA, INC.
