Tools And Materials For Replacing The Roof

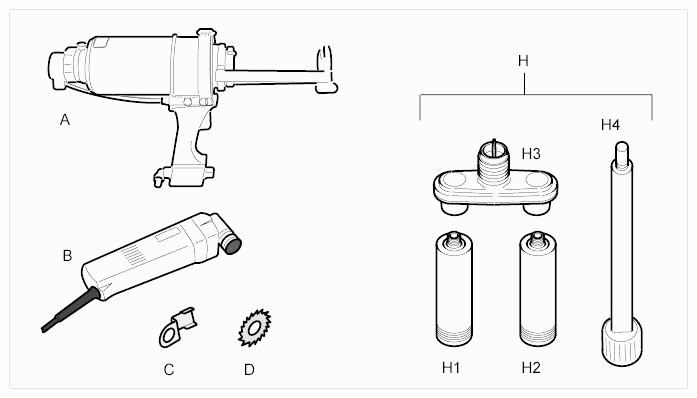

Fig 1: Identifying Special Tools

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. A - Double cartridge gun VAS 5237
2. B - Special electric cutter (fine) VAG 1561 A
3. C - Flashing knife, U-type 639.031.130.22
4. D - Saw blade
5. H - Adhesive set Terokal 5045 (includes set components H1-H4)
6. H1 - Cartridge, component A
7. H2 - Cartridge, component B
8. H3 - Mixing nozzle
9. H4 - Processing nozzle
