Removing Side Member For Wheel Housing Upper Section

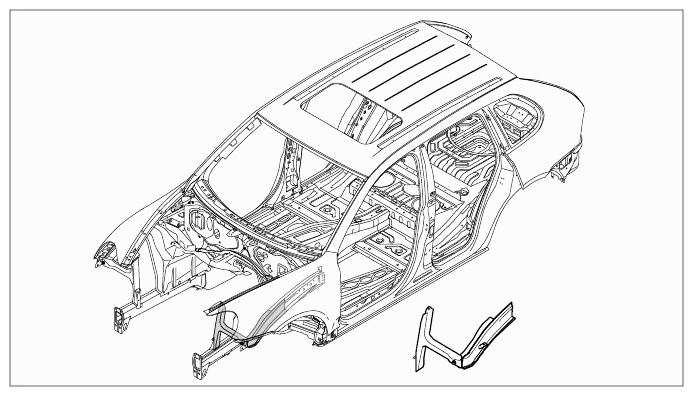

Fig 1: Side Member For Wheel Housing Upper Section Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Separating the side member for the wheel housing upper section from the wing mounting point support

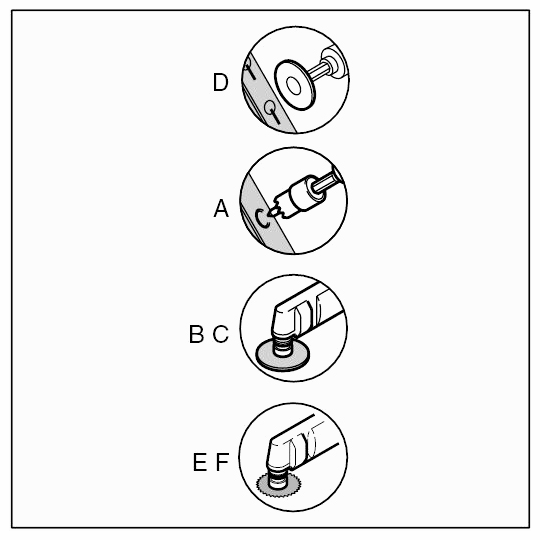

   Fig 2: Separating Side Member For Wheel Housing Upper Section From Wing Mounting Point Support

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 1.1. Cut the welded joint between the wing mounting point support and side member bracket using the spotweld cutter (areas -A-  ).

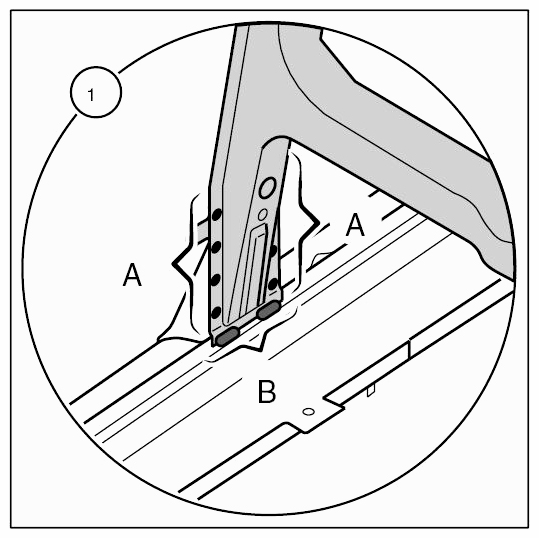

      Fig 3: Identifying Wing Mounting Point Support And Side Member Bracket Welded Joint Areas (A)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 1.2. Grind the inert gas arc welded joint between the wing mounting point support and front side member and side member bracket with a parting grinder (areas -B-  , -C-  ).

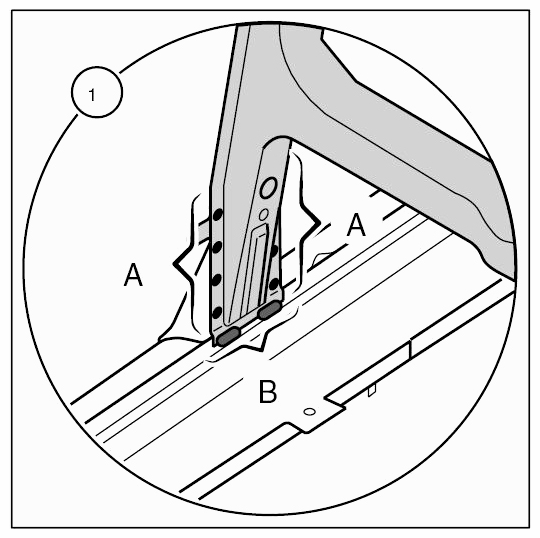

      Fig 4: Identifying Wing Mounting Point Support And Front Side Member And Side Member Bracket Gas Arc Welded Joint Areas (A And B)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

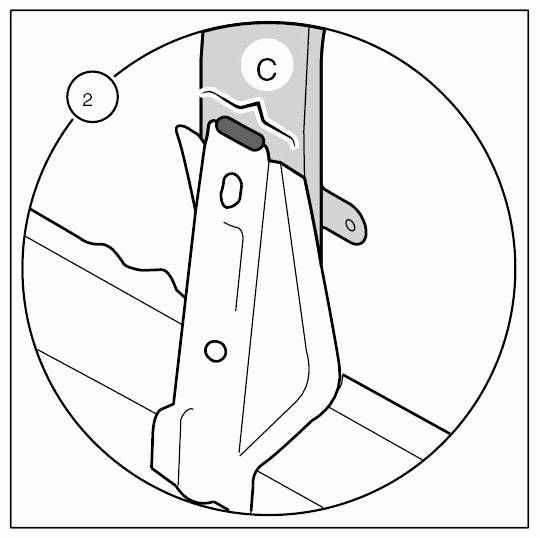

      Fig 5: Identifying Wing Mounting Point Support And Front Side Member And Side Member Bracket Gas Arc Welded Joint Areas (C)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   3. 1.3. Cut out the laser welded joint on the side member for the wheel housing upper section in the area of the cut offset -X-  using the parting grinder (area -D-  ).

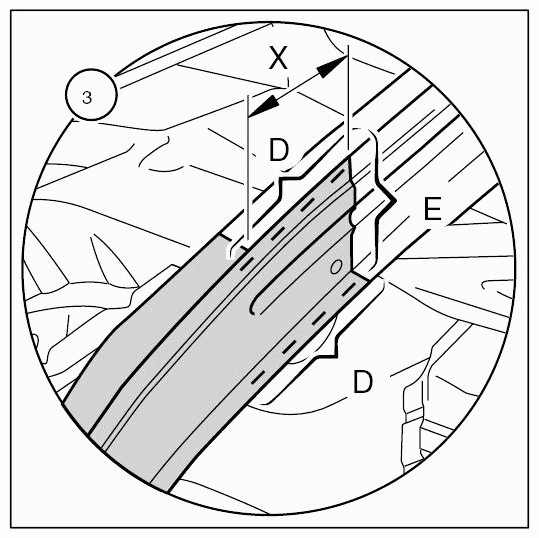

      Fig 6: Identifying Laser Welded Joint On Wheel Housing Upper Section Side Member Cutting Dimension (D)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   4. 1.4. Cut the side member for the wheel housing upper section in the areas -E-  and -F-  using the oscillating body saw. The dimension -X-  (or -X-  ) → Cut dimension, old part: 80 mm  must be maintained. Do not damage the internal components.

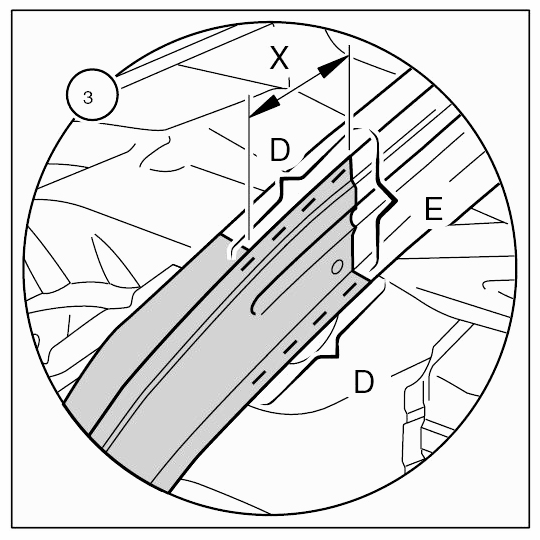

      Fig 7: Identifying Wheel Housing Upper Section Side Member Cutting Dimension (D And E)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

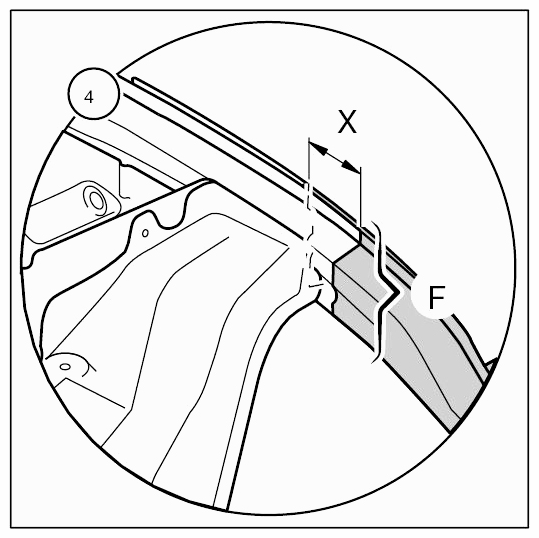

      Fig 8: Identifying Wheel Housing Upper Section Side Member Cutting Dimension (F)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Removing side member for wheel housing upper section
