Removing The Wing

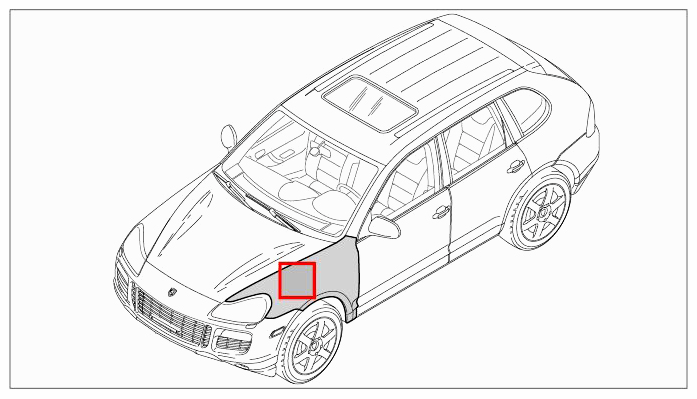

Fig 1: Wing Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Open front door.

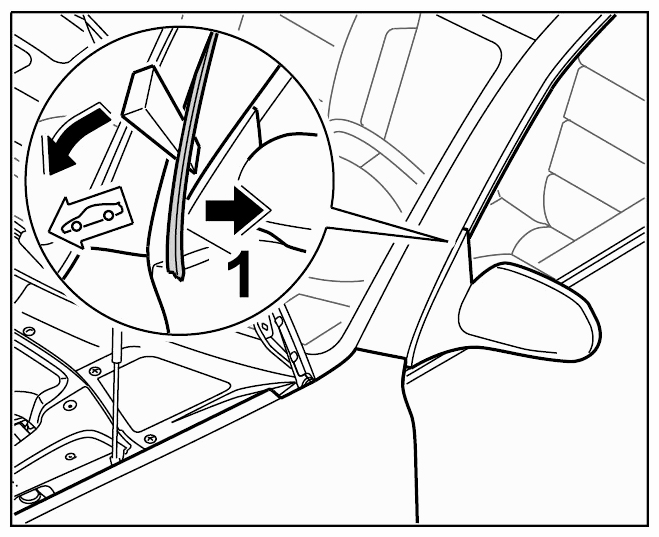

Detach roof molding -1- in the area around the A-pillar -arrows- .

Fig 2: Detaching Roof Molding
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

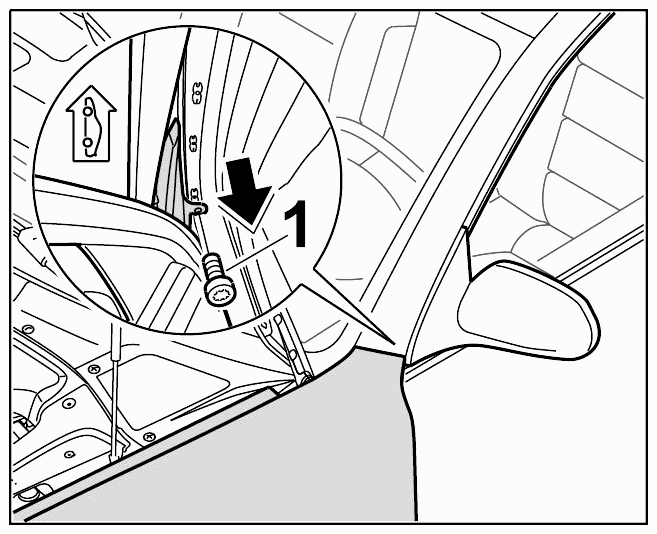

Unscrew fastening screw -1- on the A-pillar -arrow- .

Fig 3: Detaching Wing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Due to the contour of the wing, the fastening clip must be deformed in order to remove the wing. If a wing is to be reused following removal, the paint in the area of the fastening clip must be heated up using a hot-air blower.

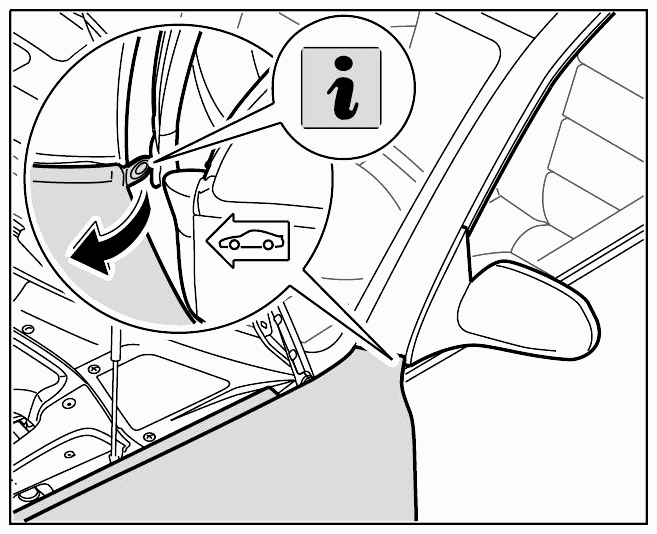

Bend up fastening clip by approx. 70° in -direction of arrow- .

Fig 4: Bending Up Fastening Clip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

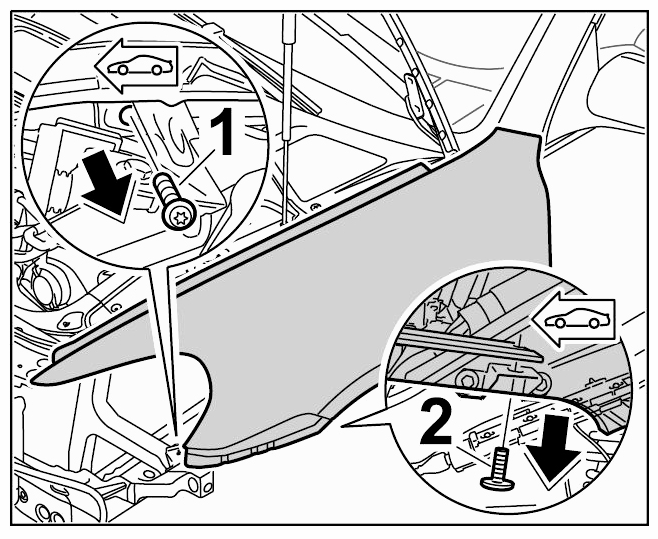

Unscrew fastening screws -1- and -2- (-arrows- ).

Fig 5: Detaching Wing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

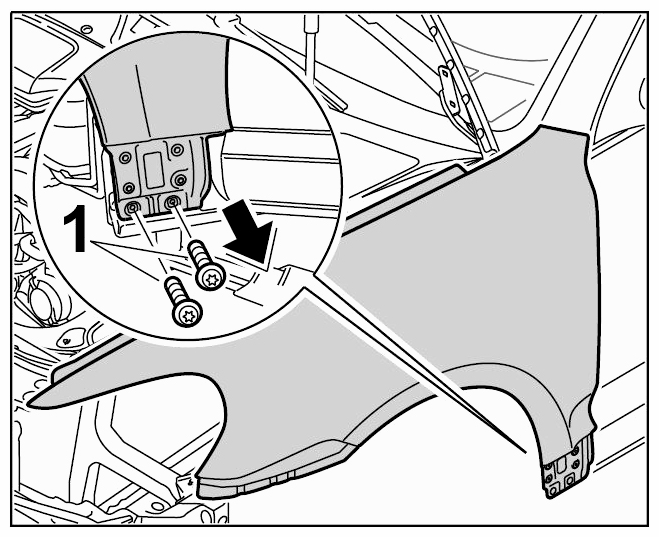

Unscrew fastening screws -1- (-arrow- ).

Fig 6: Detaching Wing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

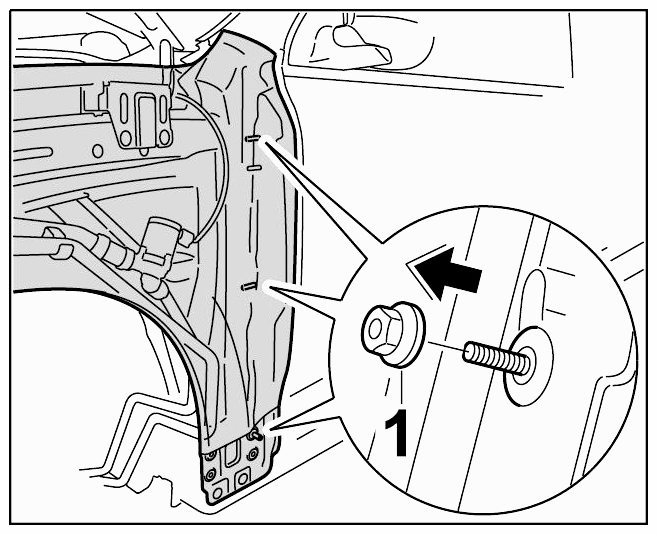

Unscrew fastening nuts -1- on the A-pillar -arrow- .

Fig 7: Detaching Wing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

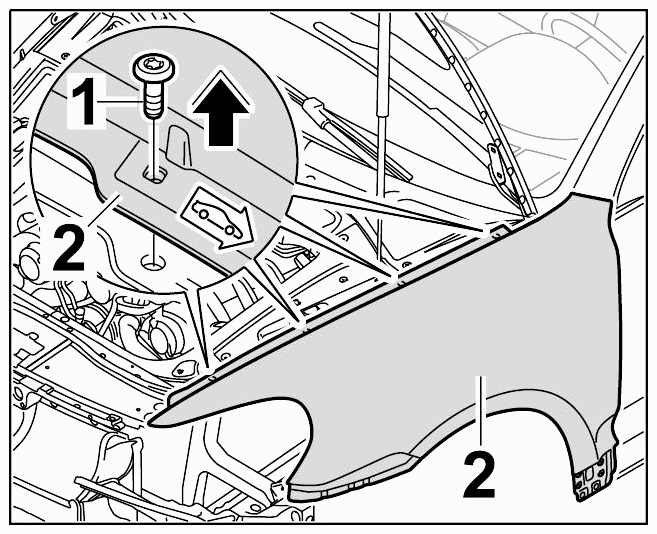

Unscrew the fastening screws -1- on the top flange -arrow- .

Fig 8: Detaching Wing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the wing -2- .
Remove old sealant.
