Securing Lock Carrier

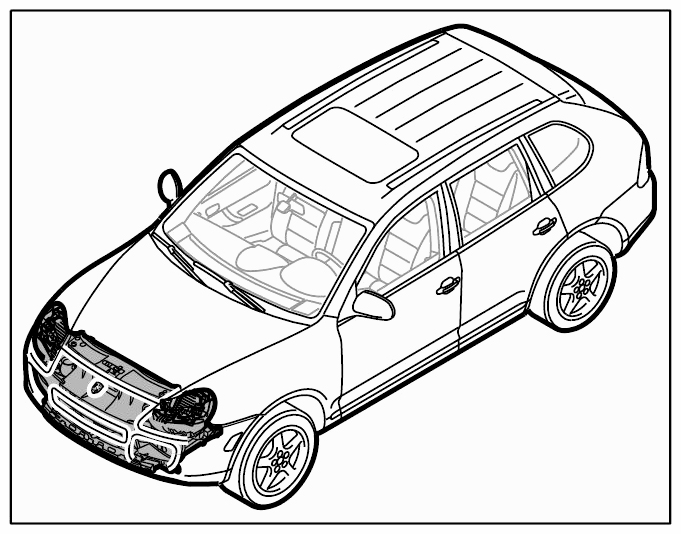

Fig 1: Identifying Lock Carrier

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

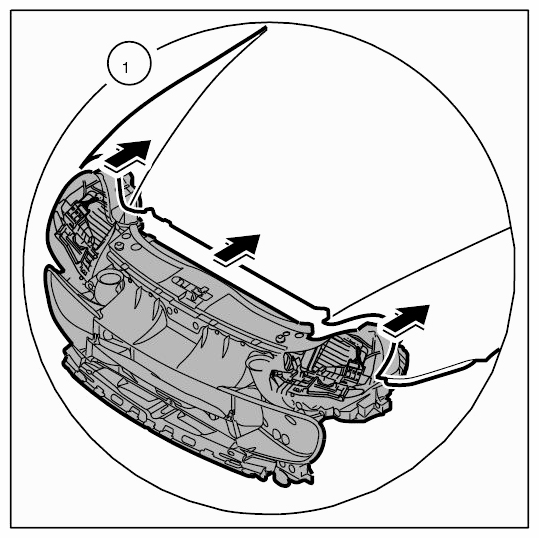

Slide the lock carrier into installation position.

Fig 2: Sliding Lock Carrier Into Installation Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. To prevent damage to accessories, slide the lock carrier back into installation position evenly on both sides.

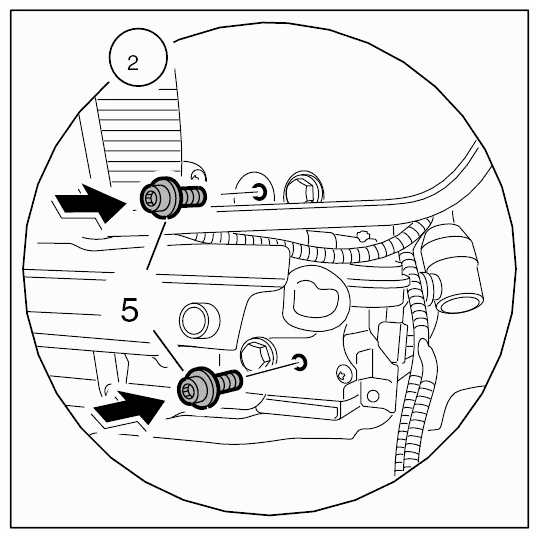

Screw in fastening screws -5- .

Fig 3: Identifying Fastening Screws (5)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Screw in fastening screws on both sides of the vehicle and tighten slightly.

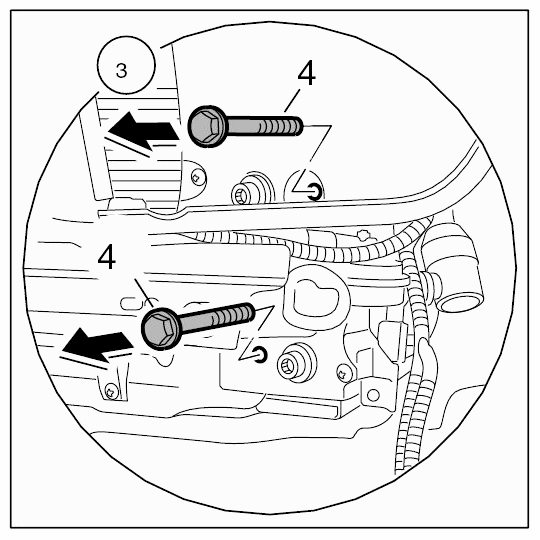

Unscrew service fastening screws -4- .

Fig 4: Identifying Service Fastening Screws (4)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Unscrew service fastening screws on both sides of the vehicle.

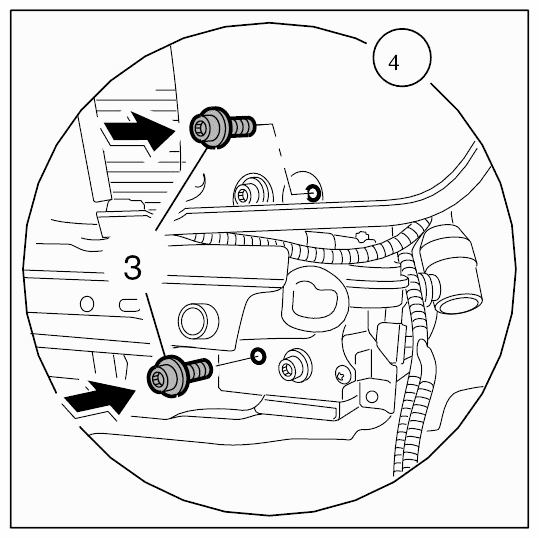

Screw in fastening screws -3- and tighten slightly.

Fig 5: Identifying Fastening Screws (3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Screw in fastening screws on both sides of the vehicle and tighten slightly.
2. 4.2. Position the lock carrier according to the existing impressions.
Secure the lock carrier in installation position.

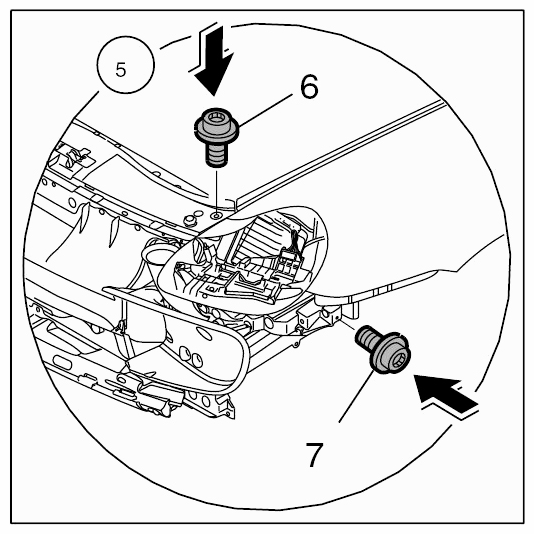

1. 5.1. Screw in fastening screws -6 and 7- on both sides of the vehicle and tighten slightly.

  Fig 6: Identifying Fastening Screws (6 And 7)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjust the lock carrier.
Tighten the fastening screws on the lock carrier.
1. 7.1. Tighten fastening screws -3-, -5-, -6 and 7- to the specified tightening torque. → Tightening torque: 9 Nm (6.5 ft lbs.)+/-1 Nm (+/-0.5 ft lbs.) → Tightening torque: 9 Nm (6.5 ft lbs.)+/-1 Nm (+/-0.5 ft lbs.) → Tightening torque: 65 Nm (48 ft lbs.)+/-10 Nm (+/-7.5 ft lbs.)

  Fig 7: Identifying Fastening Screws (3)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 8: Identifying Fastening Screws (5)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 9: Identifying Fastening Screws (6 And 7)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fasten guide rails on the front apron at the side.
Connect the air guide.

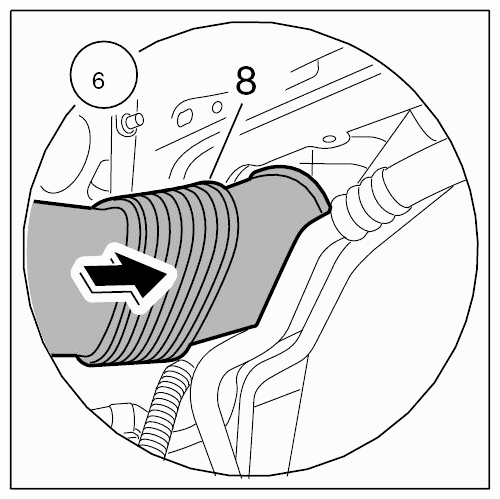

1. 9.1. Connect the air guide to the air cleaner housing -8- .

  Fig 10: Connecting Air Guide To Air Cleaner Housing
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Attach the charge air cooler.
Turbo only

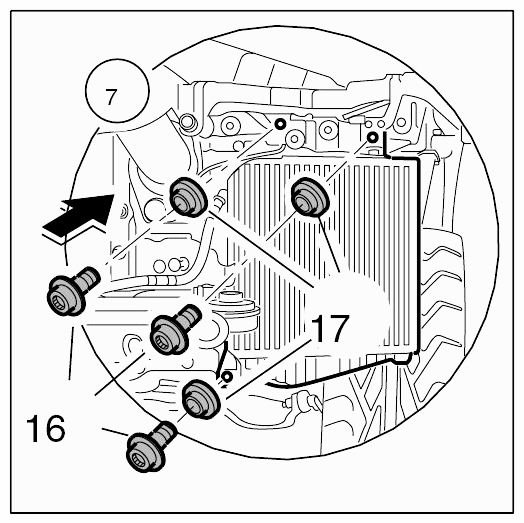

1. 10.1. Insert spacers -17- .
2. 10.2. Screw in fastening screws -16- and tighten to the specified tightening torque. → Tightening torque: 9 Nm (6.5 ft lbs.)+/-1 Nm (+/-0.5 ft lbs.)

  Fig 11: Inserting Spacers
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

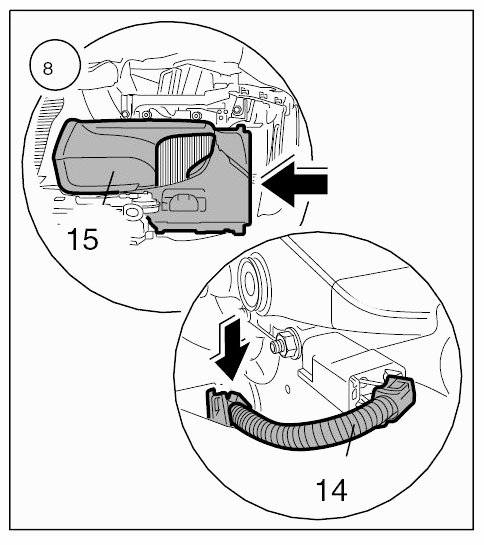

Install side air guides.
Turbo only
1. 11.1. Position the side air guide -15- and move it to the centre of the vehicle until it engages.
2. 11.2. Position and clip in air sensor wire harness -14- .

  Fig 12: Identifying Side Air Guide
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Attach the front lid seal close to the lock carrier.
1. 12.1. Removing and installing front lid seal

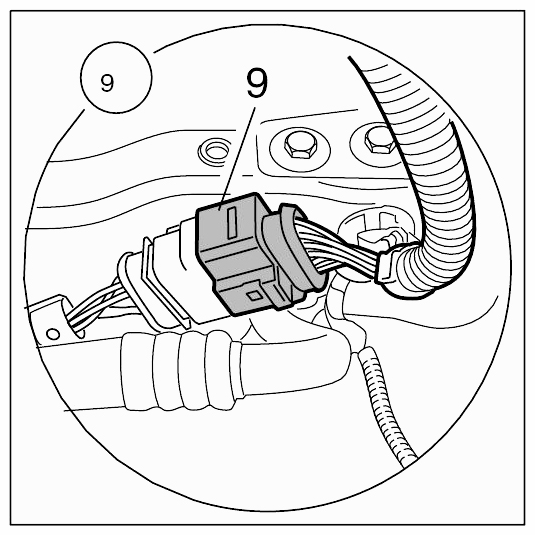

Connect electric plug connection -9- .

Fig 13: Identifying Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 13.1. Connect the electric plug connection on the left side of the vehicle.
Install rubber covers.

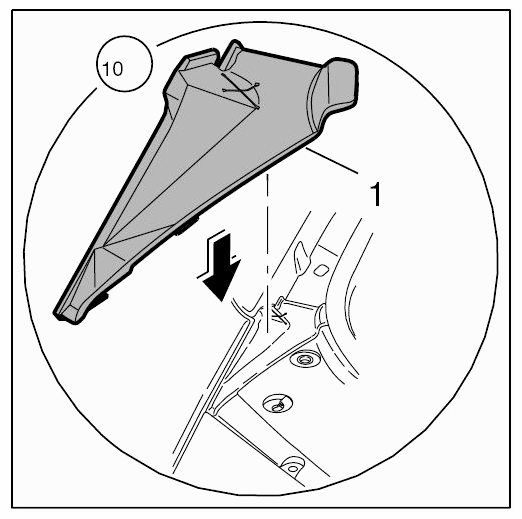

1. 14.1. Fit the right rubber cover -1- from above and press in the rubber tabs.

  Fig 14: Fitting Right Rubber Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

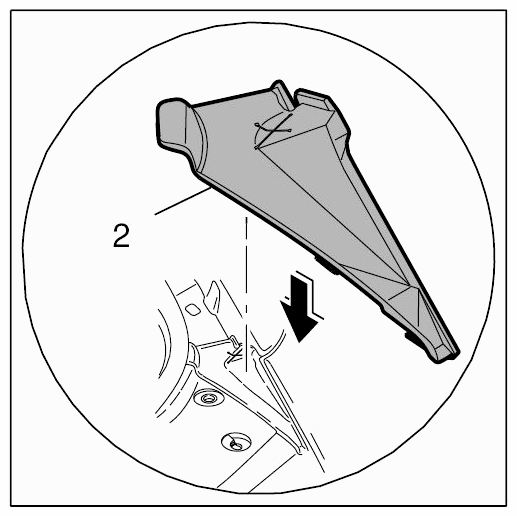

2. 14.2. Fit the left rubber cover -2- from above and press in the rubber tabs.

  Fig 15: Fitting Left Rubber Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
