Installing Frame Head (Impact Absorber Mount)

Fit the frame head (impact absorber mount) to the body.
1. 1.1. Position the frame head (impact absorber mount) against the body and fix in place with a straightening attachment.

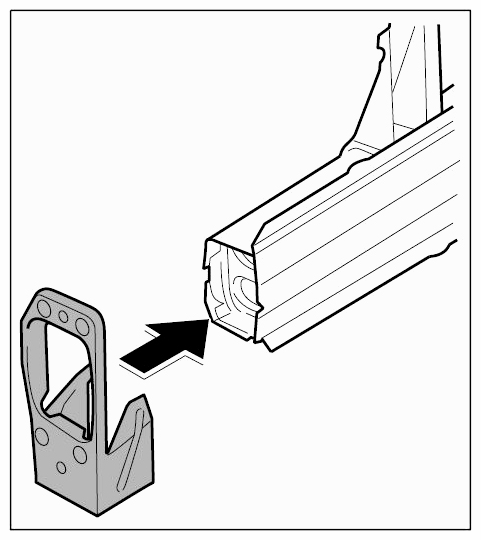

  Fig 1: Installing Frame Head (Impact Absorber Mount)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Fix the frame head (impact absorber mount) to the body with tensioning clamps.
Weld the frame head (impact absorber mount) using the inert-gas arc welding process → see Fig 2.

Fig 2: Identifying Weld Frame Head (Impact Absorber Mount)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Apply a full weld to the frame head (impact absorber mount) in the areas -A-, -B-, -C- and -D- using inert-gas arc welding.

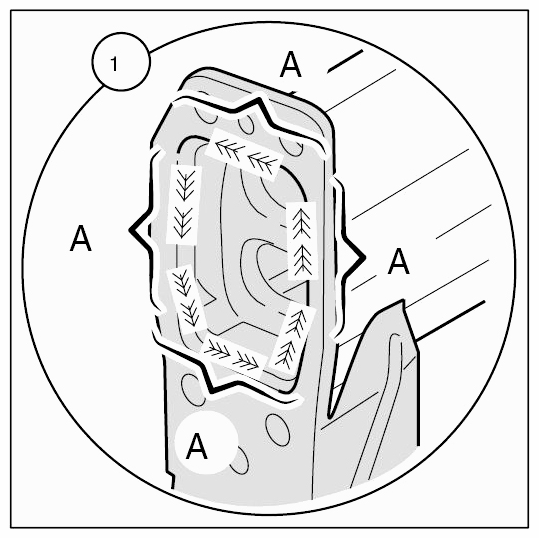

  Fig 3: Identifying Full Weld To Frame Head Applying Areas A (Impact Absorber Mount)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

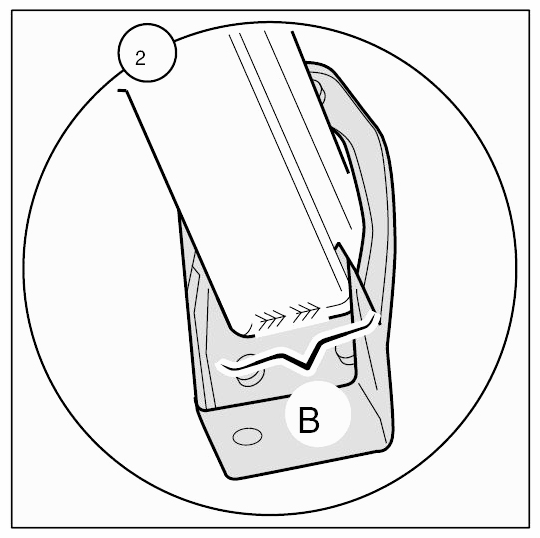

  Fig 4: Identifying Full Weld To Frame Head Applying Areas B (Impact Absorber Mount)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

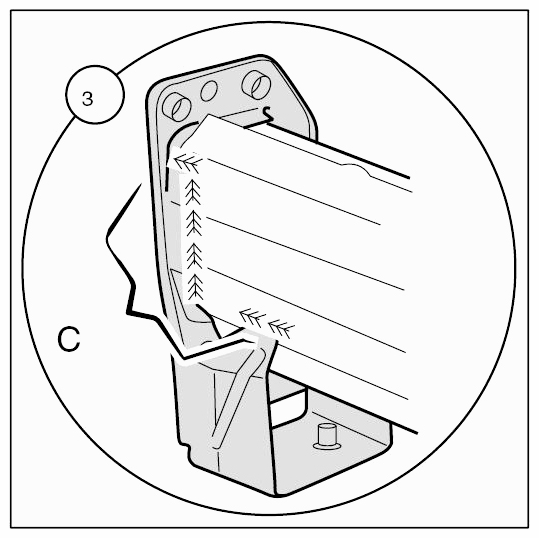

  Fig 5: Identifying Full Weld To Frame Head Applying Areas C (Impact Absorber Mount)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

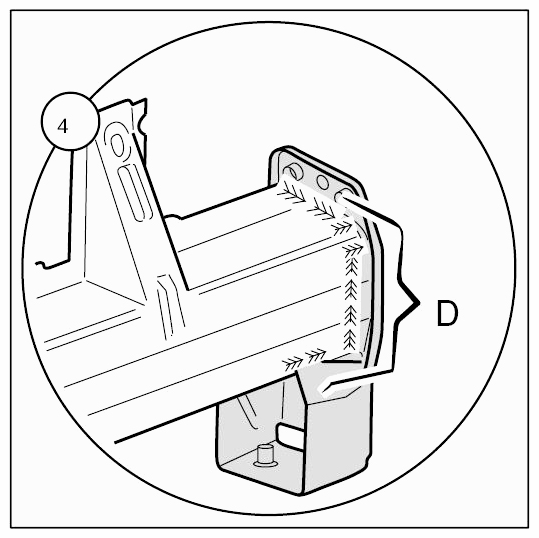

  Fig 6: Identifying Full Weld To Frame Head Applying Areas D (Impact Absorber Mount)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
