Unpainted BODYSHELL: Notes

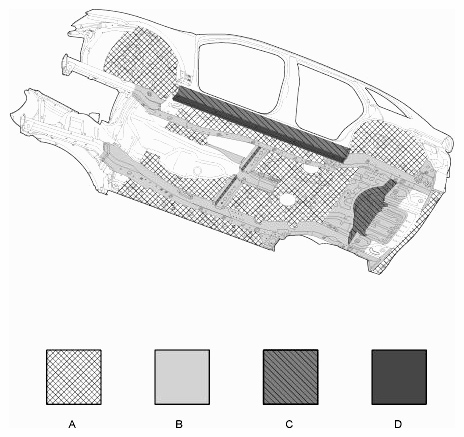

Fig 1: Identifying Unpainted Bodyshell

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 0.3 mm
2. 0.6 mm
3. 1.0 mm
4. 2.0 mm

Information

• In the case of repair work, the standard chipping protection/undersealing of the body structure must be restored according to the following illustrations after painting and prior to unit assembly.
• The undersealing can only be applied to primed sheetmetal.
