Removing Door Handle

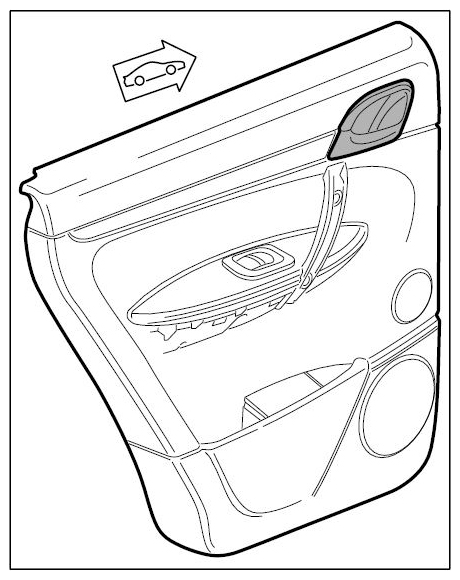

Fig 1: Identifying Door Handle
G09411269Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Remove door handle.
    1. 1.1. Pull off plug -3-  (-Arrow A-  ).
    2. 1.2. Undo fastening screws -2-  .

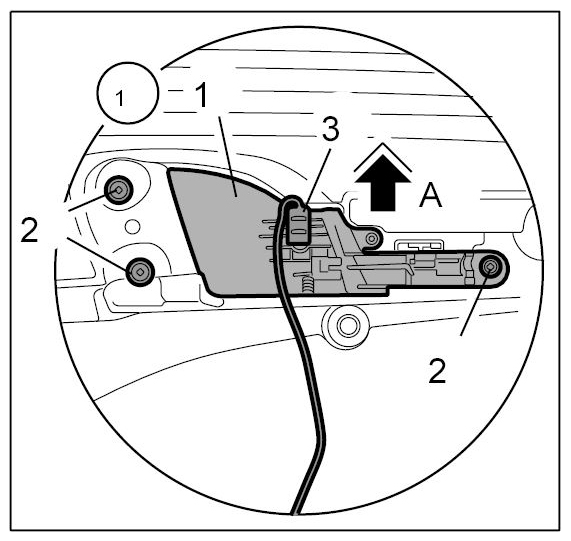

      Fig 2: Removing Fastening Screws
      G09411270Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Take off door handle.
    1. 2.1. Pull out and remove door handle -1- -Arrow B-  .

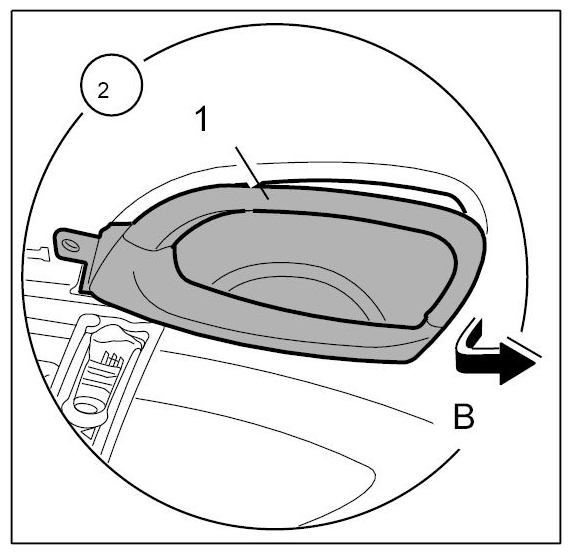

      Fig 3: Removing Door Handle
      G09411271Courtesy of PORSCHE CARS NORTH AMERICA, INC.
