Removing Striker Pin

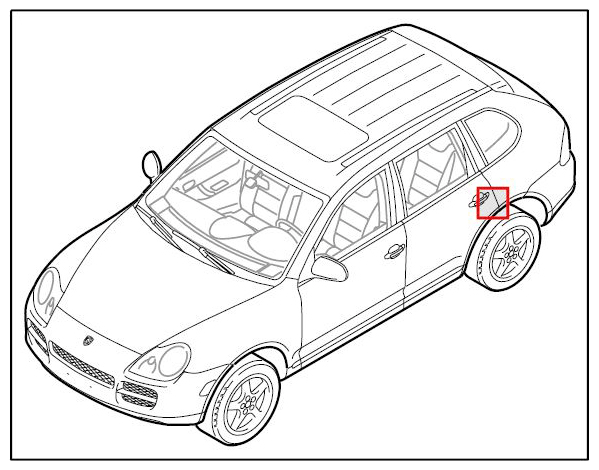

Fig 1: Identifying Striker Pin

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Open door.
Determine striker pin position.
1. 2.1. Mark the position on the C-pillar using a felt-tipped pen. Use the impression of the striker pin -arrows- .

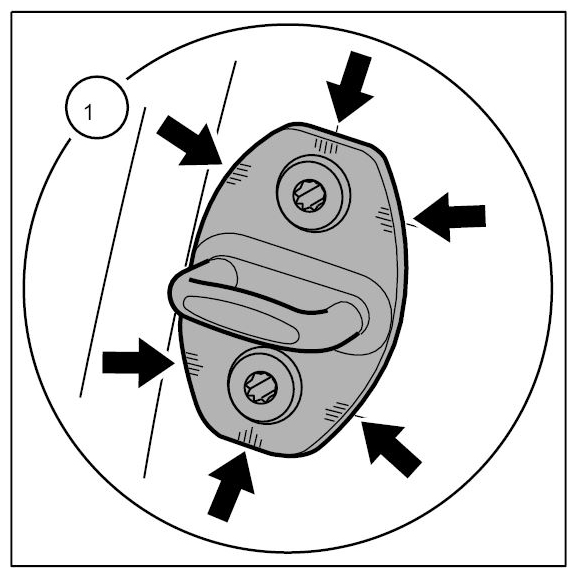

  Fig 2: Locating Striker Pin Position
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Removing the striker pin
Information
- The counterplate -3- of the striker pin -2- is permanently fixed to the C-pillar structure. After the striker pin has been removed, the counterplate remains in the lower end position on the C-pillar.

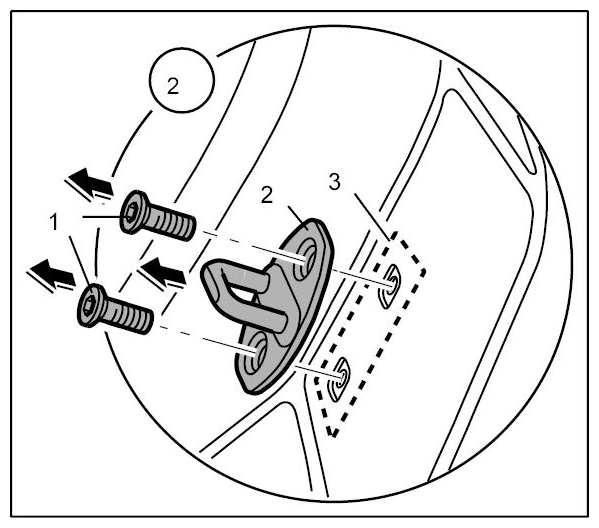

  Fig 3: Removing Striker Pin
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Remove fastening screws -1- from striker pin -2- .
2. 3.2. Remove striker pin -2- .

  Fig 4: Removing Fastening Screws 1 From Striker Pin
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
