Installing Rear Door Handle

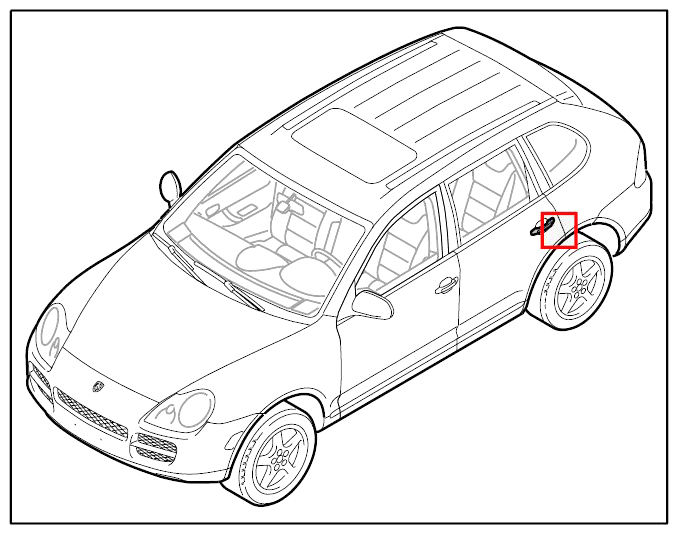

Fig 1: Identifying Rear Door Handle

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Open door.
Check that the handle receiver is locked in installation position
NOTE:
Lock actuation mechanism not fitted correctly
- Door cannot be opened using the outer door handle after being locked and unlocked for the first time.
- Function of inner door release impaired
→ Clip the lock actuation mechanism tightly, but not tensioned into the guide on the outer door handle.

→ Leave the door open after installing the key cylinder and lock cylinder housing.

→ Check the function of the outer door handle with the door open.

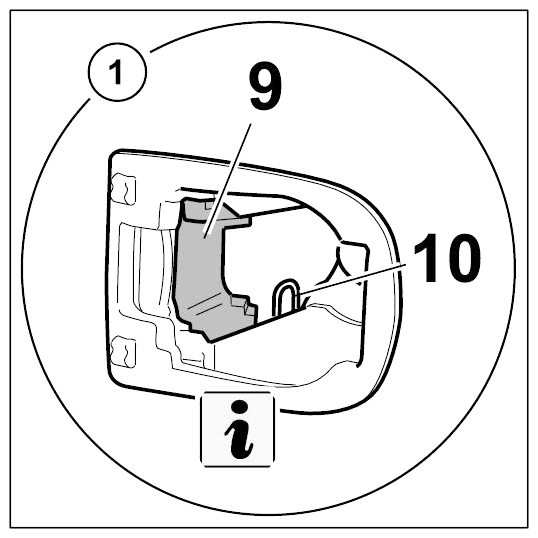

1. 2.1. Check that the mounting point -9- was locked correctly in installation position during removal. If the mounting is not locked, it can also be fixed in place subsequently → Locking door handle mounting.
Fig 2: Identifying Door Handle Mounting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lock the lock actuation in installation position
1. 3.1. Attach securing spring -10- to the lock actuation lever using the assembly tool T10118. → Latching the lock actuation.

  Fig 3: Identifying Door Handle Assembly
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install Porsche Entry and Drive wiring harness. For vehicles with Porsche Entry and Drive only
1. 4.1. Install Porsche Entry and Drive wiring harness → REMOVING AND INSTALLING WIRING HARNESS FOR PORSCHE ENTRY AND DRIVE SYSTEM .
2. 4.2. Install door unit carrier. .
Insert door handle.

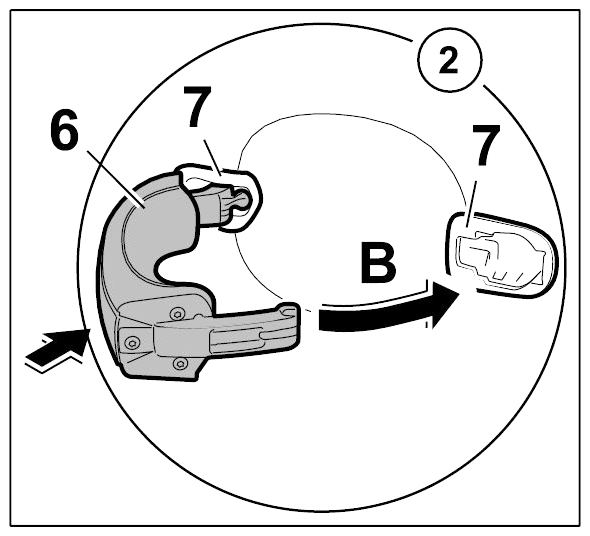

1. 5.1. Insert rubber washers -7- .
2. 5.2. Insert door handle -6- -arrow A- and swivel it inwards by 90° -arrow B- .

  Fig 4: Inserting Door Handle
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Attaching door handle

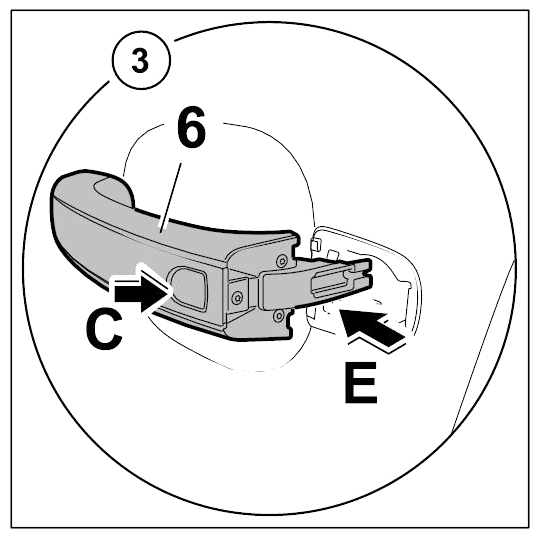

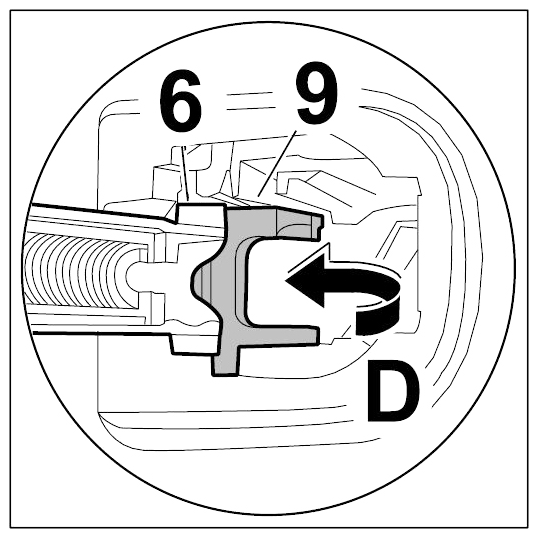

1. 6.1. Press door handle -6- inwards -arrow C- and hook it in behind the mounting -9- -arrow D- .
2. 6.2. Press door handle -6- forward -arrow E- until it locks with an audible click.

  Fig 5: Pressing Door Handle (1 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 6: Pressing Door Handle (2 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Attach lock actuation

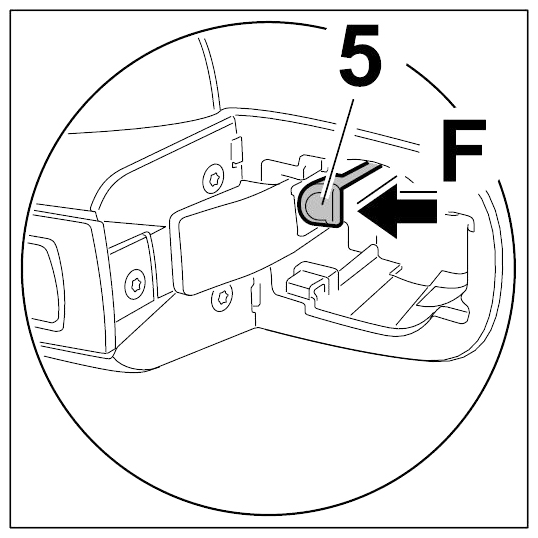

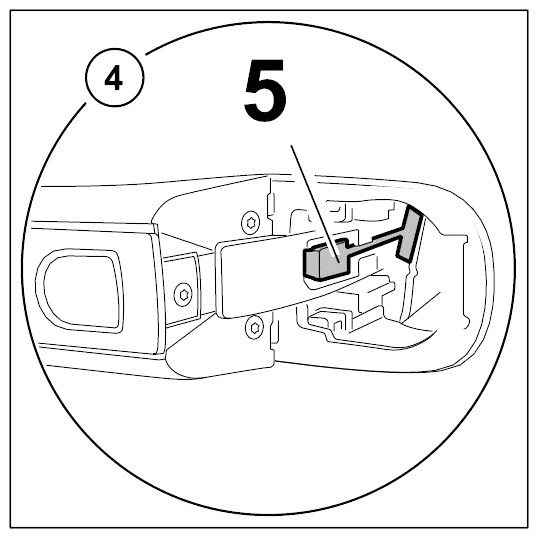

1. 7.1. Press the lock actuator -5- into the guide on the door handle -arrow F- .

  Fig 7: Identifying Lock Actuator
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 8: Locating Lock Actuator
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install housing.

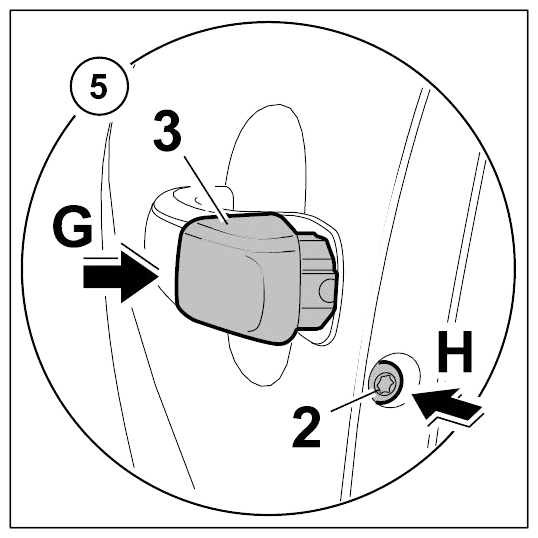

1. 8.1. Install housing -3- -arrow G- . If necessary, slacken fastening screw -2- until the housing can be inserted completely.
2. 8.2. Screw in fastening screw -2- at the side -arrow H- and tighten to the specified tightening torque. → Tightening torque: 4.5 Nm+/-0.5 Nm

  Fig 9: Installing Door Handle Housing
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check function of door handle. .
Install cover cap

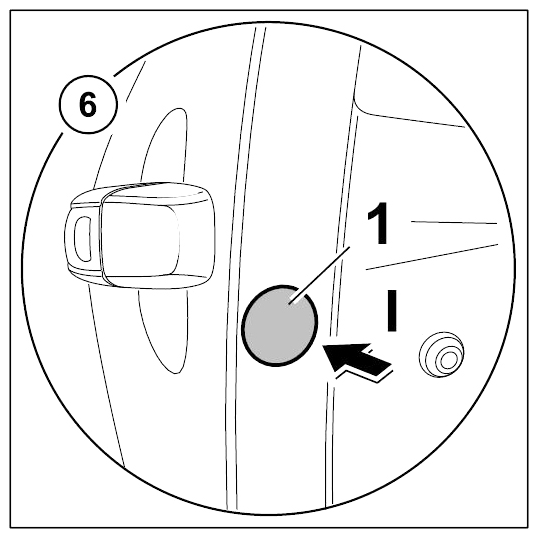

1. 10.1. Clip in the cover cap -1- at the side on the basic door frame -arrow I- .

  Fig 10: Locating Cover Cap
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close the door.
