Locking Lock Actuation

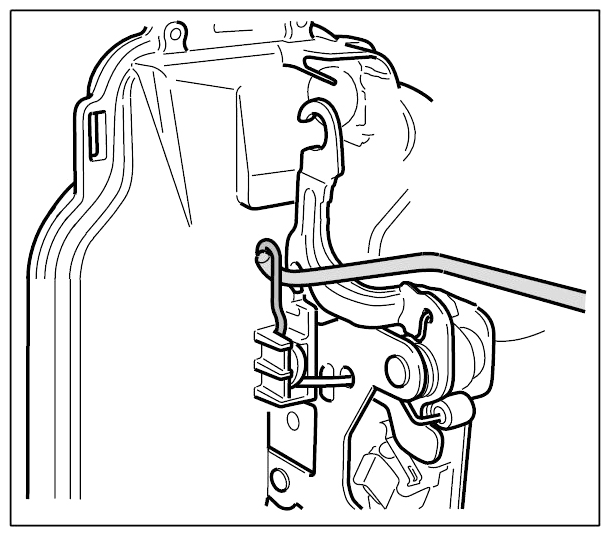

Fig 1: Locking Lock Actuation

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• To fit the lock actuation correctly, the securing spring -10- must be hooked into the lock actuation lever -11- before the door handle is installed.
• The secured position of the lock actuation is released automatically when the door handle is first pressed. A clear clicking sound can be heard when the door handle is first pressed.

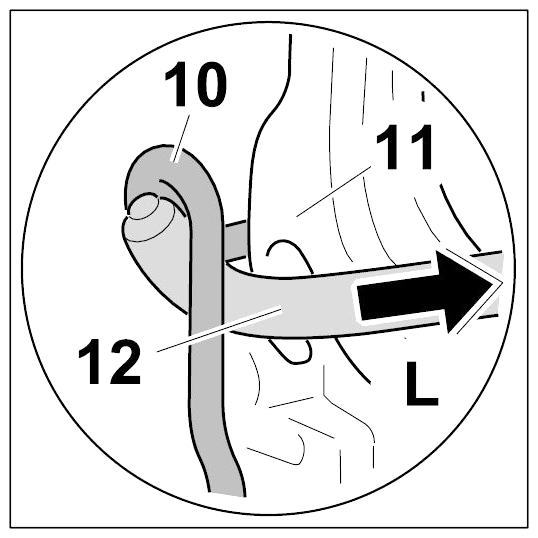

  Fig 2: Securing Lock Actuation

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Light up inside of door with a lamp.
2. Guide the assembly tool T10118 -12-  between the securing spring -10-  and the lever -11-  .

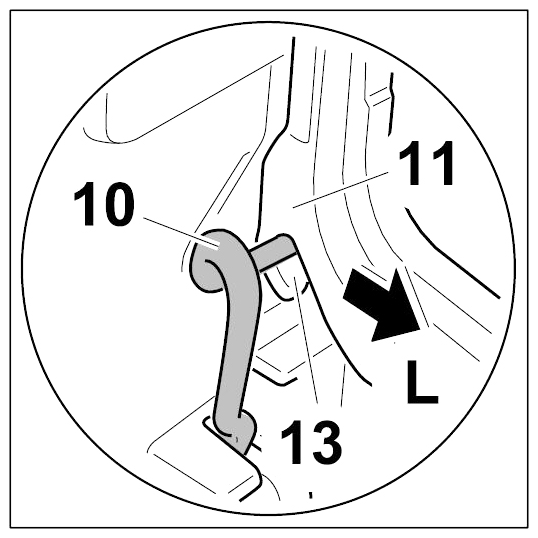

   Fig 3: Securing Spring

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. The securing spring -10-  hooks on to the tool with a rotary movement.
4. Pull the securing spring -10-  toward the outer side of the door -arrow L-  until the spring can be felt to engage in the locking lug of the lever -13-  .
   Fig 4: Securing Spring 10 Toward Outer Side Of Door

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Unhook the tool and remove it.

Information

• Pull carefully on the lock actuation to check that it is secured in installation position. Repeat the steps listed above if necessary.
