Relay Carriers 1 And 2, Plenum Chamber E-Box

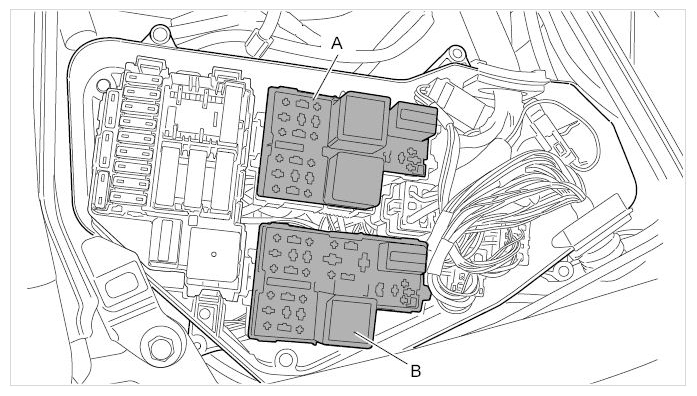

Fig 1: Identifying Relay Carriers 1 And 2, Plenum Chamber E-Box
G09416578Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Relay carrier 1
  2. Relay carrier 2
