Relay Carrier, Dashboard

Information

• The relay carriers are located below the dashboard, to the right, beside the steering wiring.
• Remove the left side trim from under the dashboard  . → Removing cover under dashboard .

1. Open the latch on the relay carrier -arrows a-  and pull downwards.

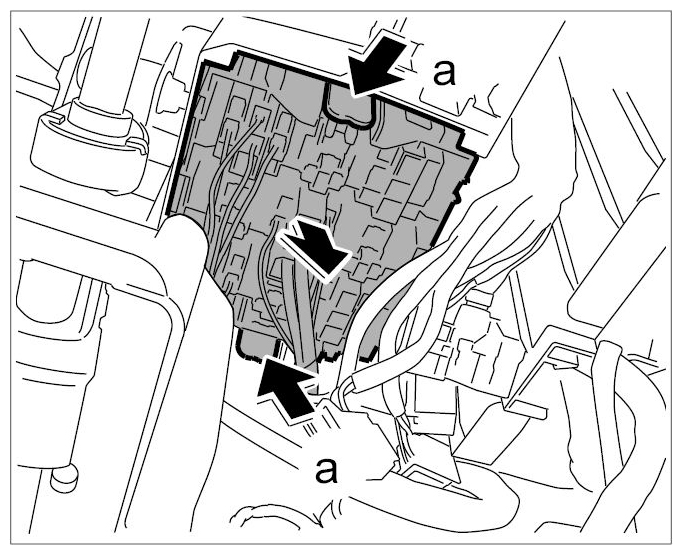

   Fig 1: Removing Relay Carrier

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Pull out the relevant relay, replace if necessary.
3. Slide the relay carrier in the retaining bracket from below until the relay carrier perceptibly engages.

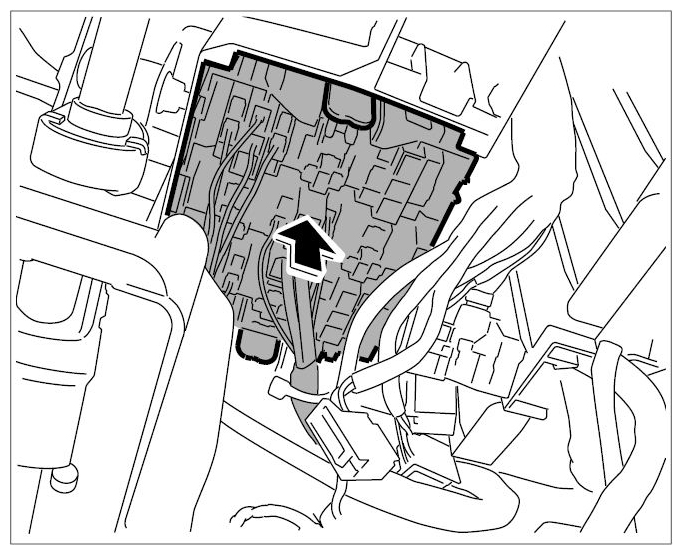

   Fig 2: Installing Relay Carrier

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
