Removing Wiring Harness For Additional Heating

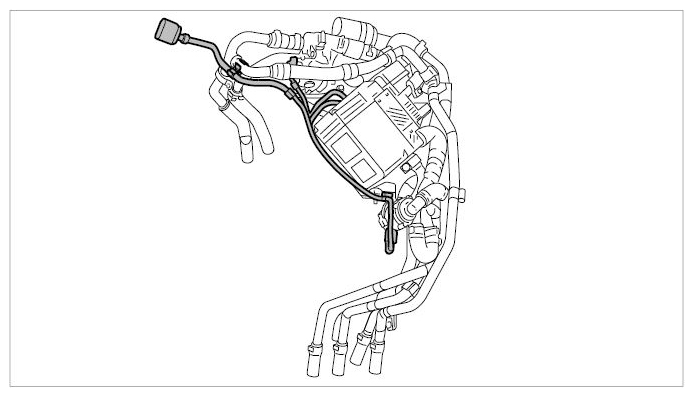

Fig 1: Overview Of Wiring Harness For Additional Heating

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Release connector -Arrow A-  and pull off -Arrow B-  .

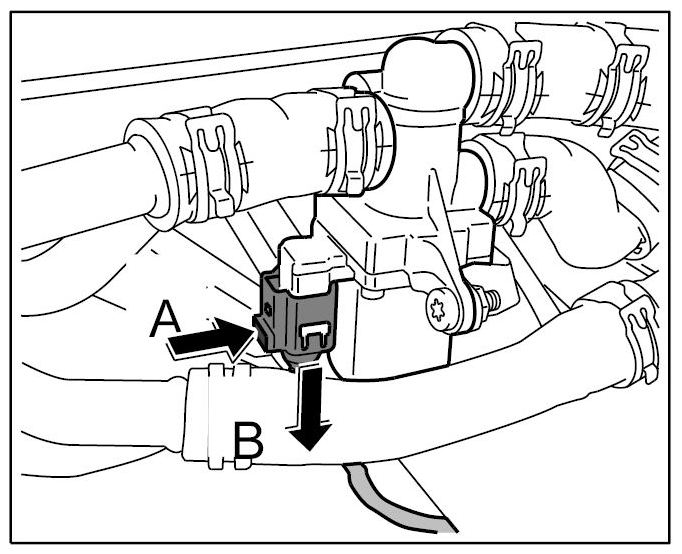

   Fig 2: Pulling Off Connector

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Release connector -Arrow A-  and pull off -Arrow B-  .

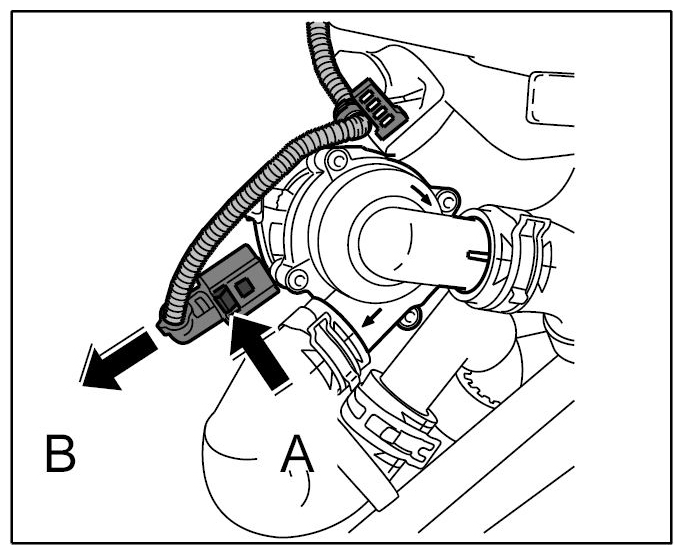

   Fig 3: Pulling Off Connector

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Release inner connector -1- -Arrow A-  and pull it off -Arrow B-  .

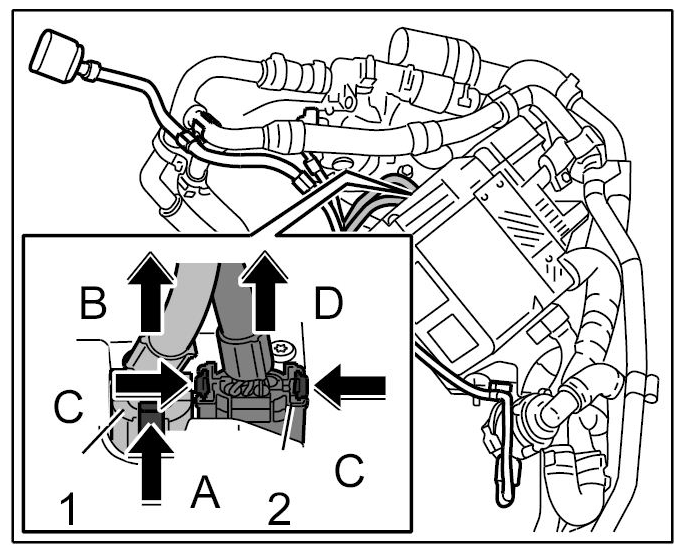

   Fig 4: Pulling Off Inner And Outer Connectors

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Release outer connector -2- -Arrows C-  and pull off -Arrow D-  .
5. Pull off line together with water pipe clip -Arrow-  .

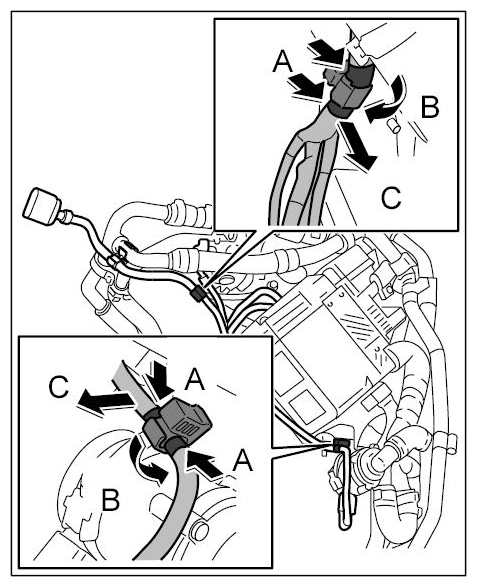

   Fig 5: Pulling Off Line From Water Pipe

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Mark the exact installation position of the line in the clips with adhesive strips -A-  .

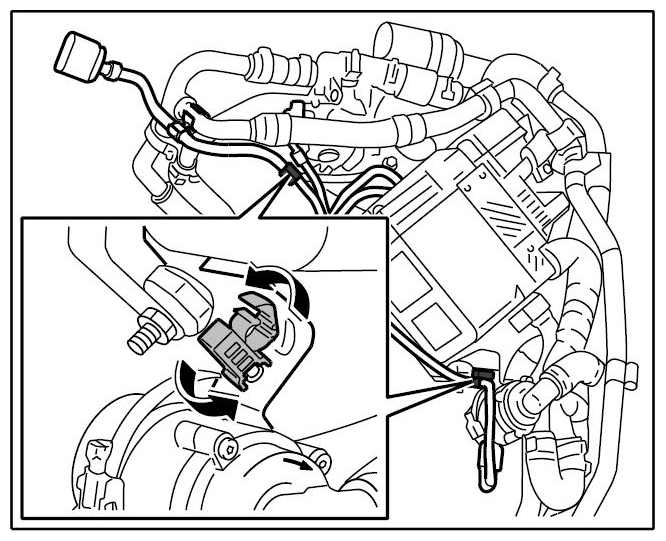

   Fig 6: Marking Installation Position Of Line

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Open the clips -Arrows B-  and remove the line -Arrow C-  .
8. Unscrew clips -Arrows-  and remove from threaded bolt.

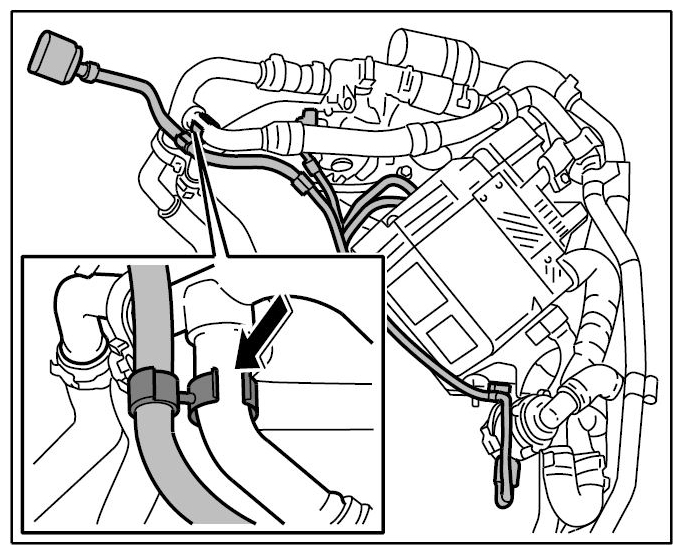

   Fig 7: Removing Clips
