Installing Wiring Harness, Right Side Of Vehicle To Lid Hinge

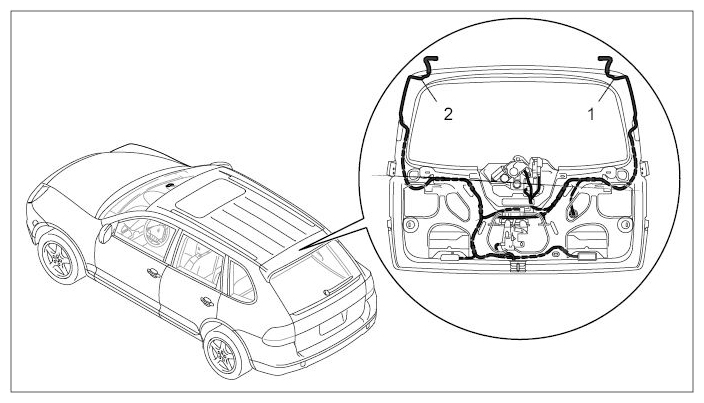

Fig 1: Overview Of Wiring Harness For Tailgate

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Push wiring harness through to the rear from the inside -Arrow A- .

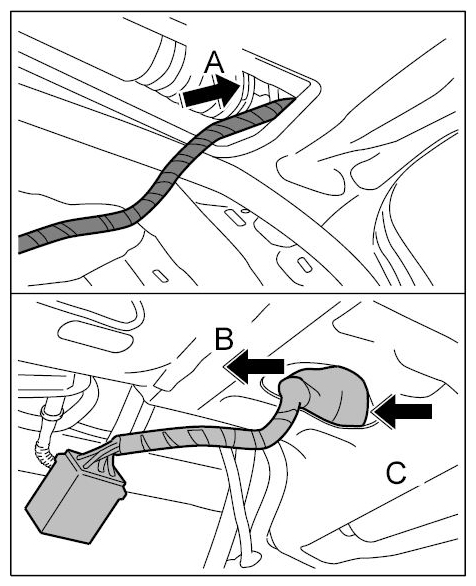

Fig 2: Running In Wiring Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- The lead must run over the pneumatic spring.
Pull socket through pneumatic spring housing -Arrow B- until rubber sleeve is felt to engage -Arrow C- .
Push blue socket into socket support -Arrow A- until locking tabs -Arrows B- are felt to engage.

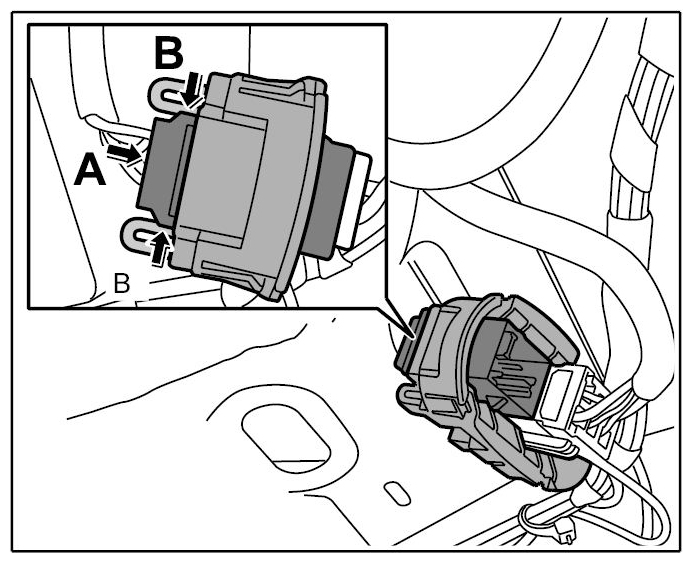

Fig 3: Pushing Socket Into Socket Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press in support for socket -Arrow A- until locking tabs -Arrows B- are felt to engage.

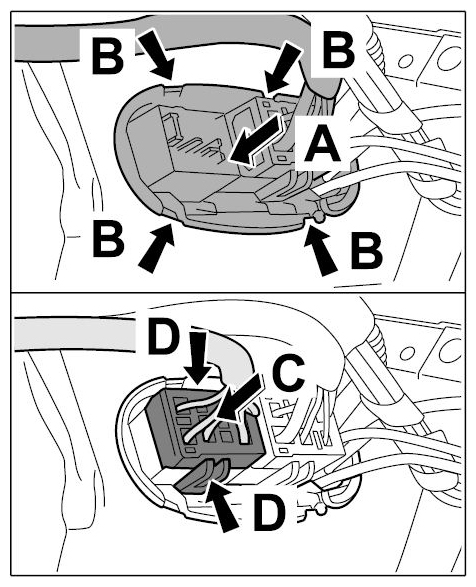

Fig 4: Pressing In Socket Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert blue connector -Arrow C- until the locking tabs -Arrows D- are felt to engage.
Apply adhesive sealant to edges -Arrows B- and press in styrofoam element -Arrow A- until it is felt to engage in the opening.

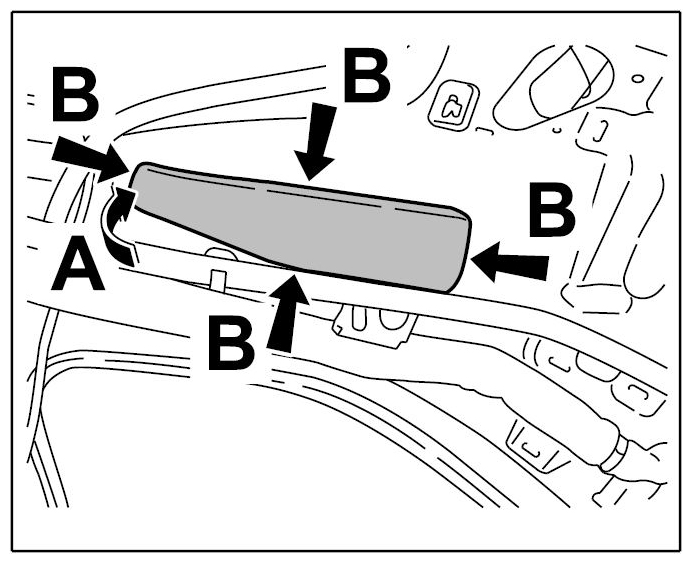

Fig 5: Installing Styrofoam Element
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
