Installing Wiring Harness, Right Side Of Tailgate To Lid Hinge

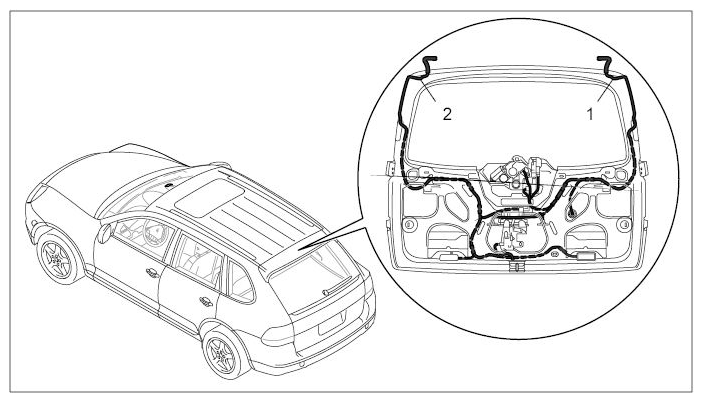

Fig 1: Overview Of Wiring Harness For Tailgate

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

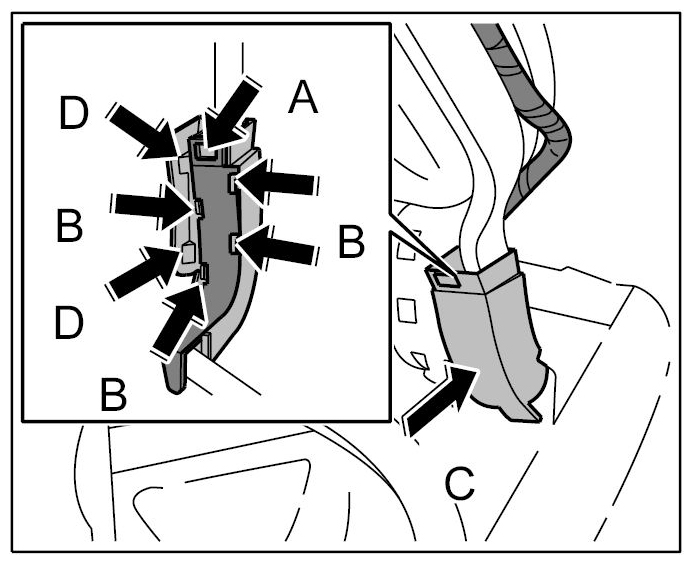

Position wiring harness in wiring duct and press in cover -Arrow A- until locking tabs -Arrows B- are felt to engage.

Fig 2: Positioning Wiring Harness In Wiring Duct
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push wiring harness with wiring duct onto rear lid hinge -Arrow C- until locking tabs -Arrows D- are felt to engage.

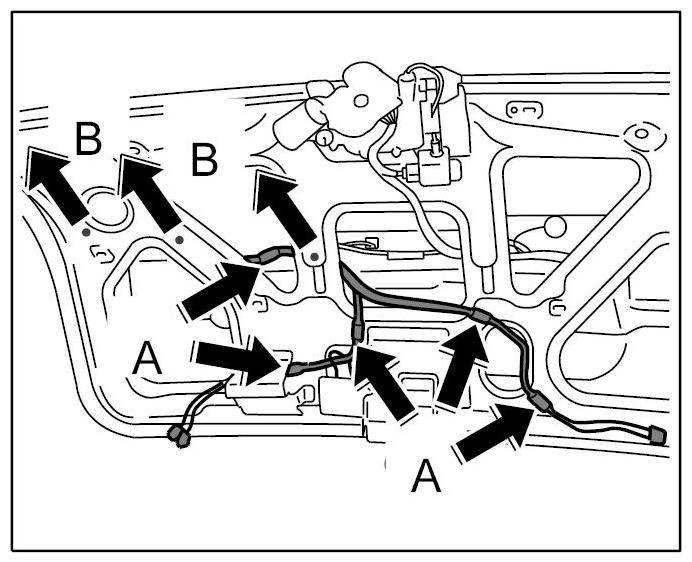

Pull harness through window frame -Arrows A- .

Fig 3: Pulling Fastening Wiring Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press rubber sleeve into window frame until it is felt to engage -Arrow B- .
Information
- During removal, replace damaged clips with repair clips.
Clip wire harness to window frame -Arrows C- .

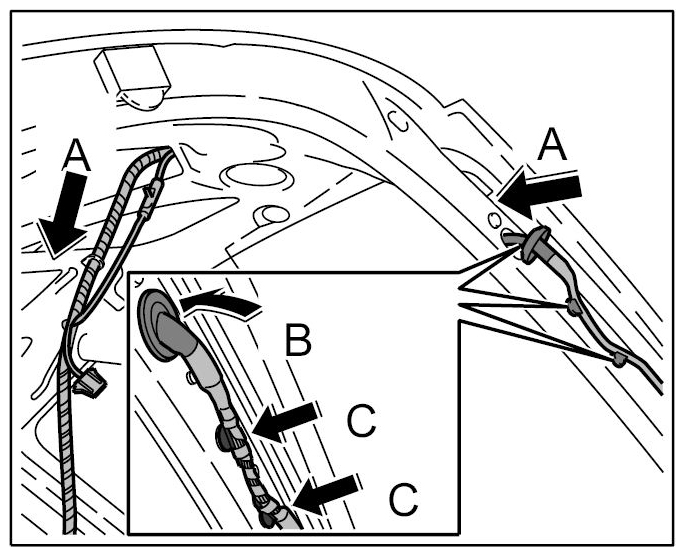

Press in wiring harness clips -Arrows A- .

Fig 4: Clipping Wiring Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- During removal, replace damaged clips with repair clips.
Press in wiring harness clips from the inside -Arrows B- .

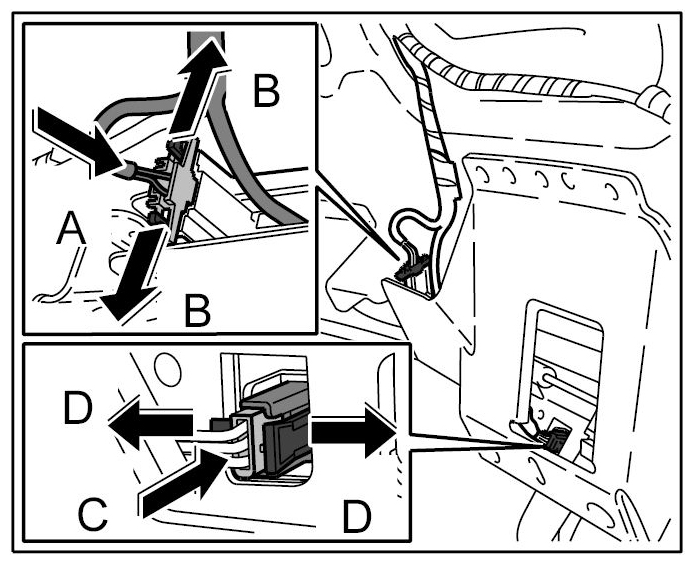

Insert connector onto rear lid lock -Arrow A- until the locking tabs -Arrows B- are felt to engage.

Fig 5: Inserting Connector On Rear Lid Lock And Contact Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert connector onto contact switch -Arrow C- until the locking tabs -Arrows D- are felt to engage.
