Installing Wiring Harness, Left Side Of Tailgate To Lid Hinge

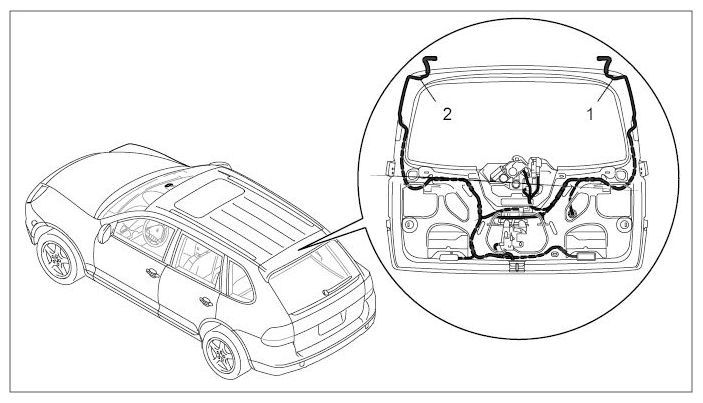

Fig 1: Overview Of Wiring Harness For Tailgate

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lay line in cable duct and push on cover -Arrow A- until locking tabs -Arrows B- are felt to engage.

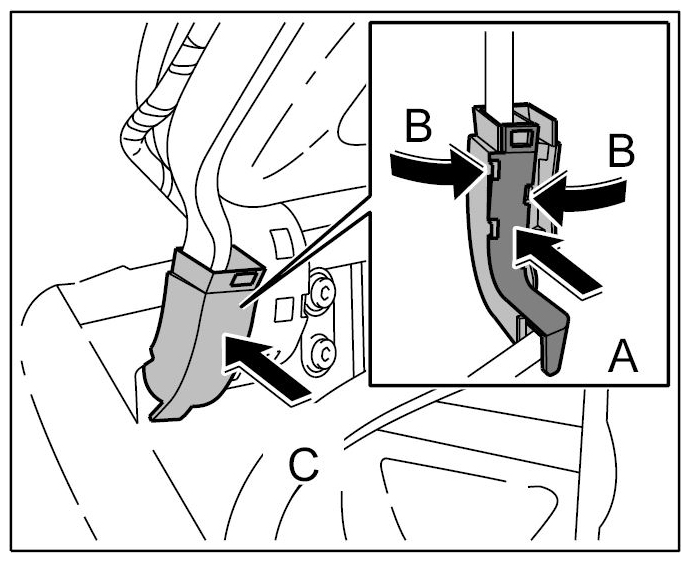

Fig 2: Laying Line In Cable Duct
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push cable duct with line onto rear lid hinge -Arrow C- .
Pull harness through window frame -Arrows A- .

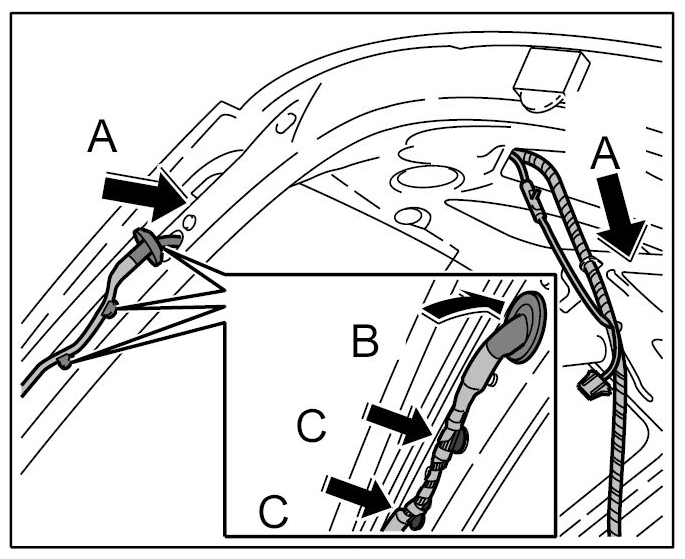

Fig 3: Pulling Wiring Harness Through Window Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press rubber sleeve into window frame until it is felt to engage -Arrow B- .
Information
- During removal, replace damaged clips with repair clips.
Clip wiring harness to window frame -Arrows C- .
Information
- During removal, replace damaged clips with repair clips.
Clip in wiring harness -arrows- .

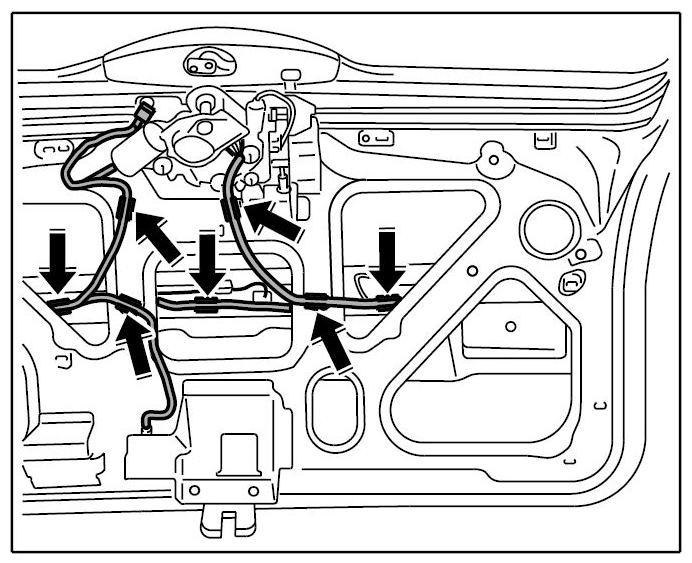

Fig 4: Clipping In Wiring Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten ground strap and torsion protection -a- to ground pin with fastening nut -Arrow 1- . → Tightening torque: 6.5 ftlb.

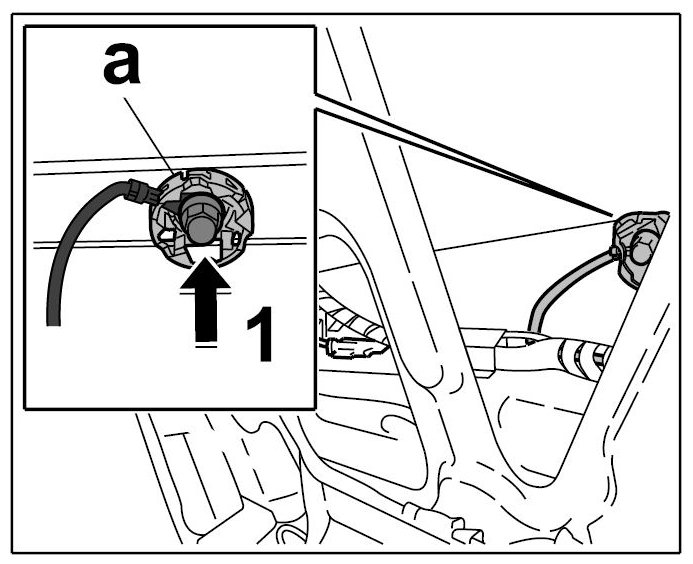

Fig 5: Screwing Down Ground Strap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push connector onto rear window wiper -Arrow A- until locking tabs are felt to engage.

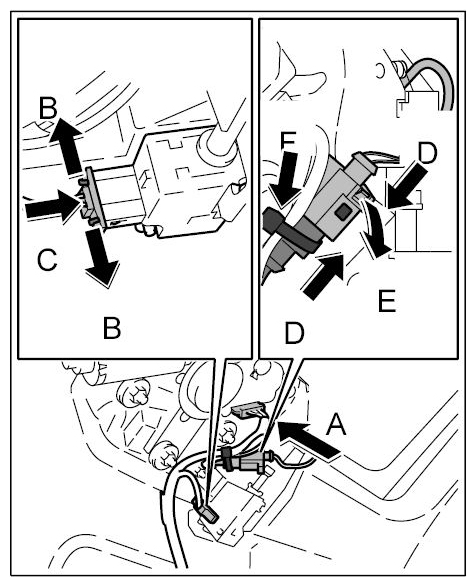

Fig 6: Pushing Connector Onto Rear Window Wiper And Lock Lower Part
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push connector onto lock lower part for rear window -Arrow C- until locking tabs -Arrows B- are felt to engage.
Push plug connection for contact switch together -Arrows D- until locking tab -Arrow E- is felt to engage.
Insert plug connection into support -Arrow F- and turn it until it is felt to engage in the clip -Arrow G- .
