Removing Wire Harness For Removable Trailer Hitch

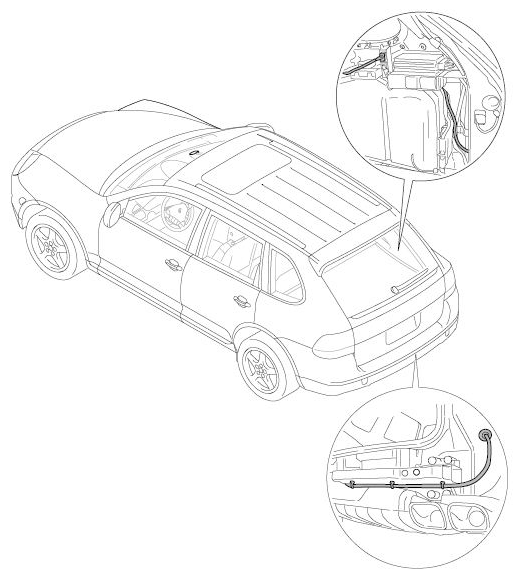

Fig 1: Overview Of Wiring Harness For Removable Trailer Hitch

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

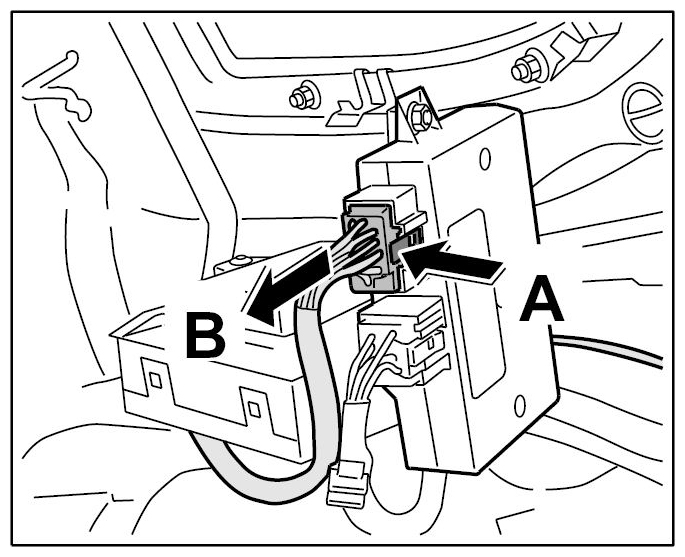

1. Release the connector -arrow A-  and pull it off -arrow B-  .
   Fig 2: Pulling Off Connector

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

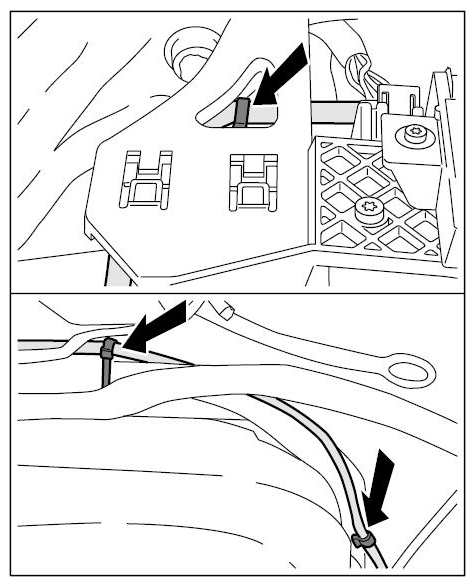

2. Cut the tie-wraps -arrows-  .
   Fig 3: Cutting Tie-Wraps

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

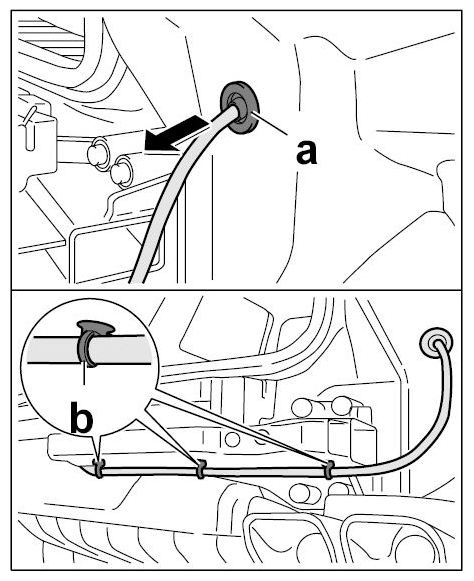

3. Press out the rubber sleeve -a-  from the inside and pull the lead out through the opening -arrow-  .
   Fig 4: Removing Wiring

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Cut the tie-wraps -b-  .

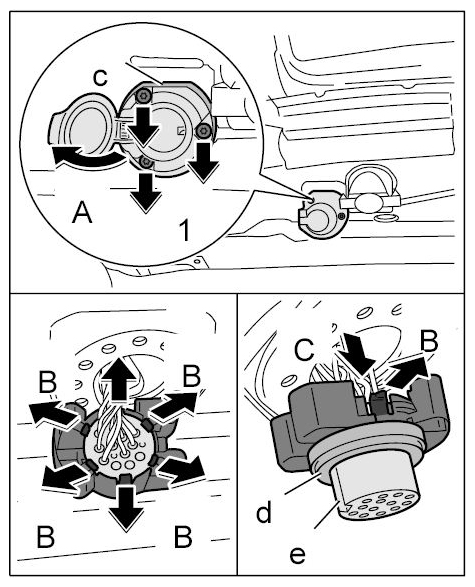

5. Open up the cover -arrow A-  , unscrew the fastening screws -arrows 1-  and remove the socket.
   Fig 5: Removing Socket

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Take the rubber sleeve -arrow C-  out of the bracket.
7. Release the plate -arrows B-  and pull it - together with the rubber seal -d-  - out of the contact housing -e-  (-arrow C-  ).

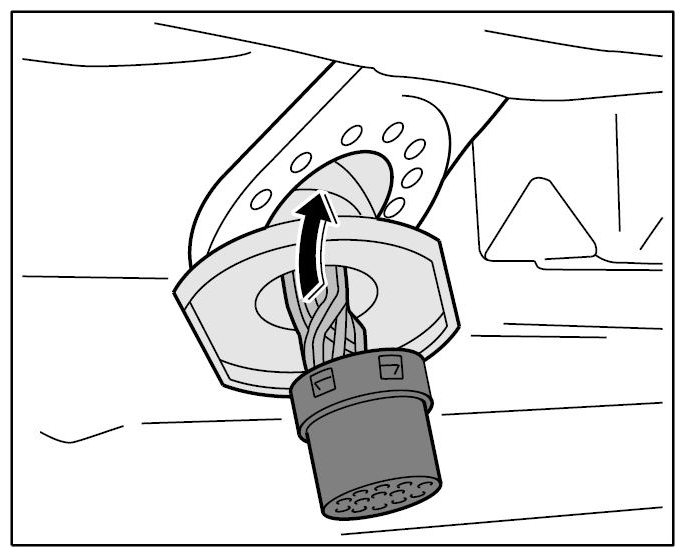

8. Push the rubber sleeve and contact housing up through the fastening flange -arrow-  and remove the lead.
   Fig 6: Removing Lead

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
