Installing Wiring Harness For Removable Trailer Hitch

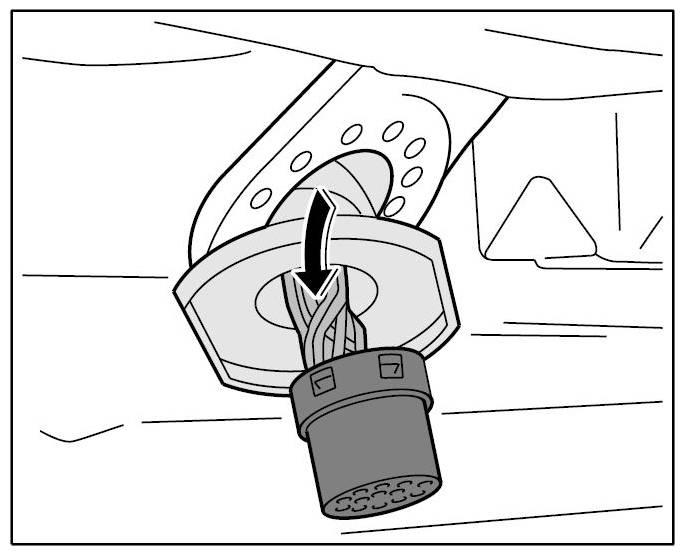

- Pull the connector and rubber sleeve down through the fastening flange -arrow-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

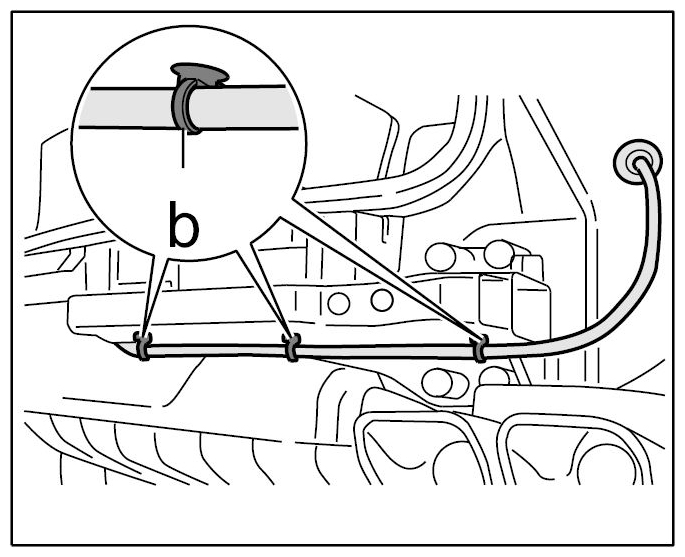

- Position the leads with new tie-wraps -b-
, but do not tighten!
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

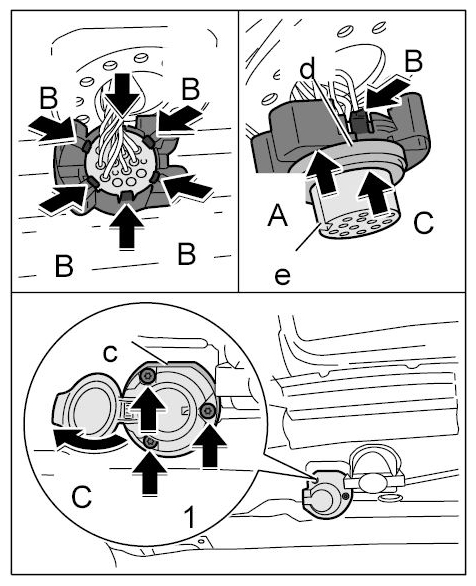

- Connect the carrier to the contact housing -e-
(-arrow A-
) until the locking tabs are felt to engage -arrows B-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Insert the carrier with the contact housing -e-
into the socket.
- Position the rubber sleeve -c-
on the socket.
- Position the socket with the rubber sleeve in installation position, then open up the socket -arrow C-
and secure to the holder with the fastening screws -arrows 1-
.

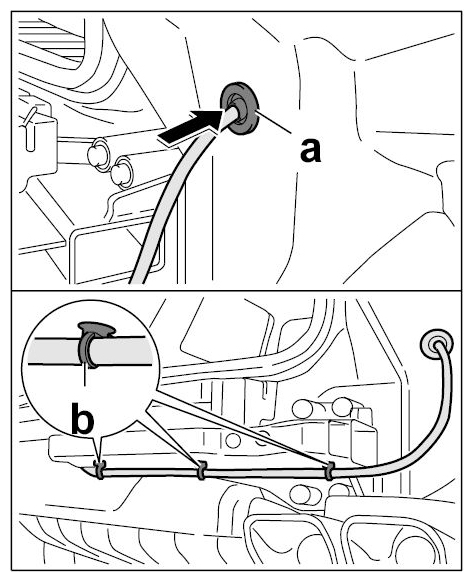

- Push the lead in -arrow-
and press the rubber sleeve -a-
in until it engages audibly.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Fasten the tie-wraps -b-
.

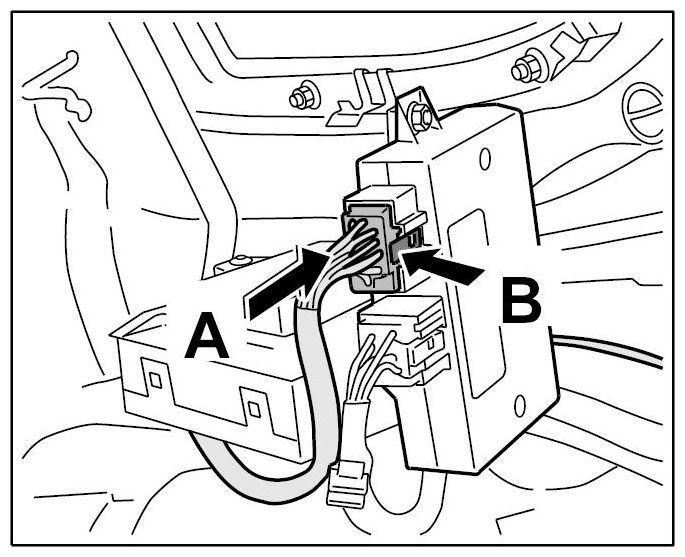

- Insert the connector -arrow A-
until the locking tab -B-
is felt to engage.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

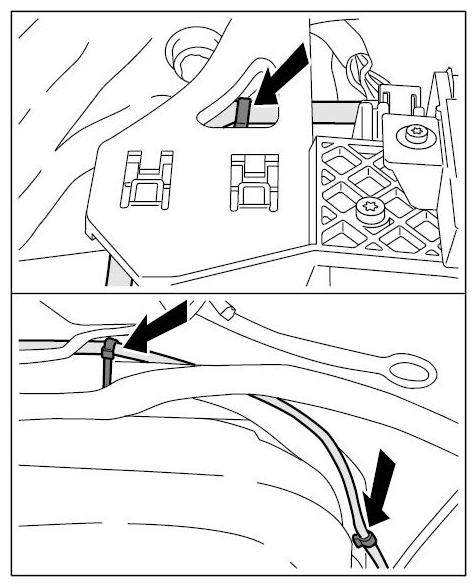

- Secure the lead with new tie-wraps -arrows-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
