Locking Plug Connection For Main Wiring Harness

  1. Join the plug connection for the main wiring harness together (front left cross member) until it is felt to engage.

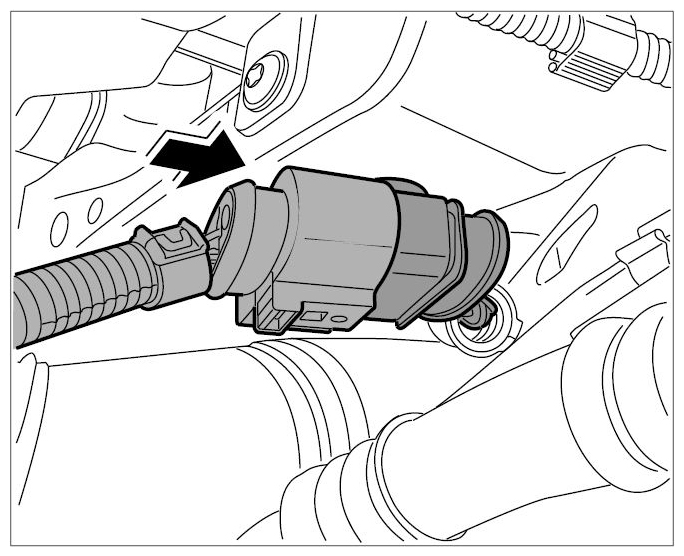

    Fig 1: Locking Plug Connection For Main Wiring Harness
    G09416236Courtesy of PORSCHE CARS NORTH AMERICA, INC.
