Removing Front Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

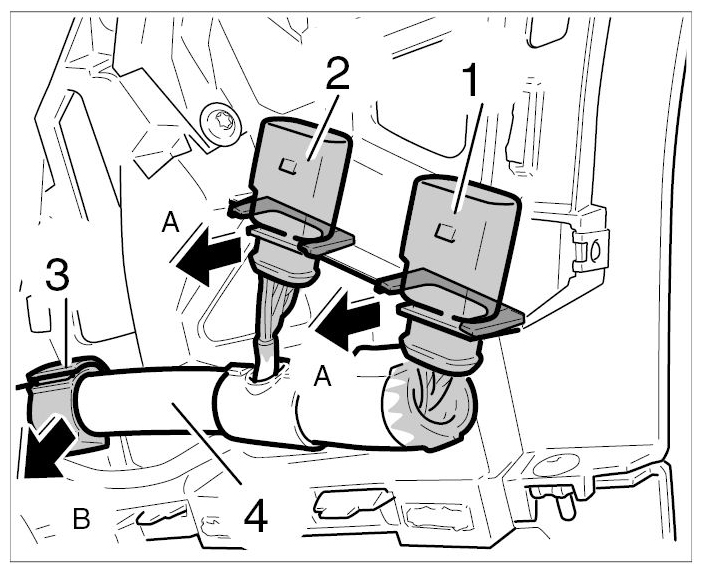

- Unclip plug connections on the front apron at the right.
- 1.1. Unclip plug connections -1 and 2-
on the front apron -arrows A-
.
- 1.2. Unclip front wire harness -4-
at the line bracket -3-
(-arrow B-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

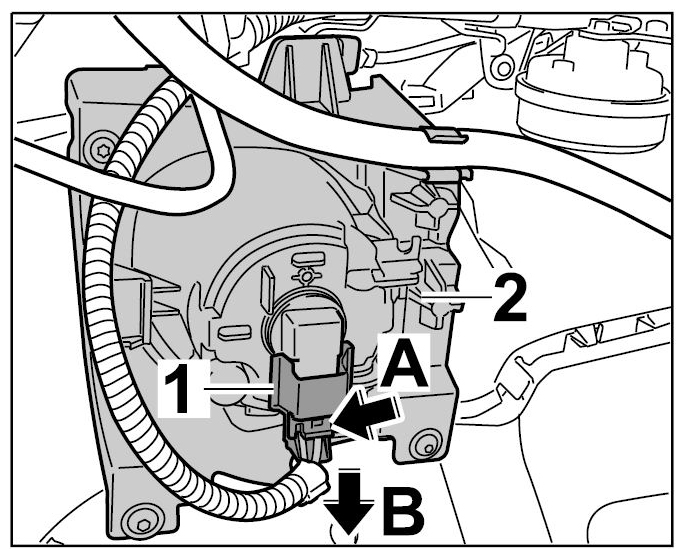

- Release connector -1-
(-arrow A-
) and pull it off the fog light -2-
at the left and right -arrow B-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

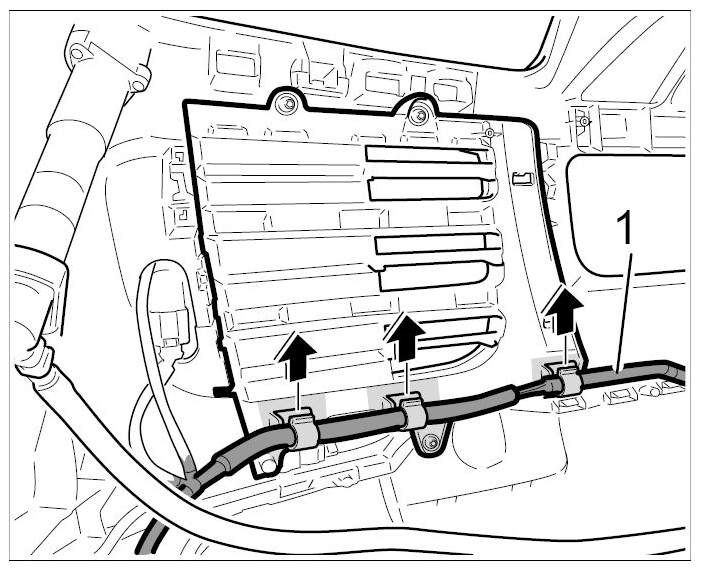

- Take front wire harness -1-
out of the air grille holders at the left and right -arrows-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

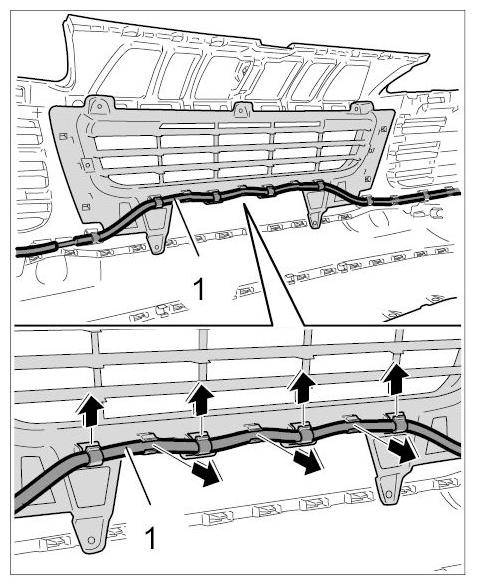

- Unclip front wire harness -1-
from the radiator grille holders -arrows-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

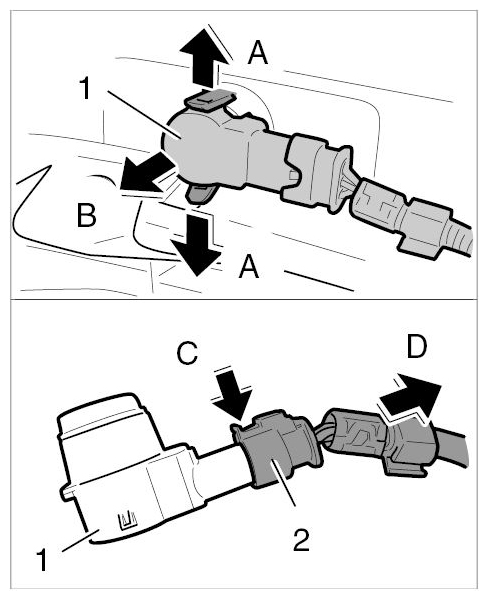

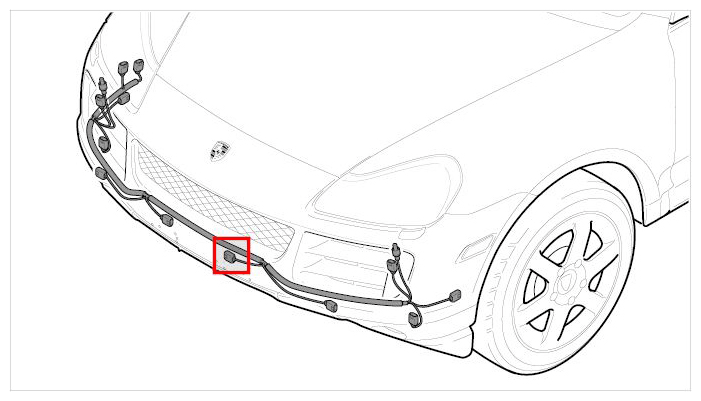

- Pull off connector on sensor for ParkAssist.
- 5.1. Release clips -arrows A-
and remove sensor for ParkAssist -1-
(-arrow B-
).
- 5.2. Release connector -2-
(-arrow C-
) and pull it off sensor for ParkAssist -1-
(-arrow D-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Remove front wire harness.
