Sub-Part - Removing Front Left Wiring Harness

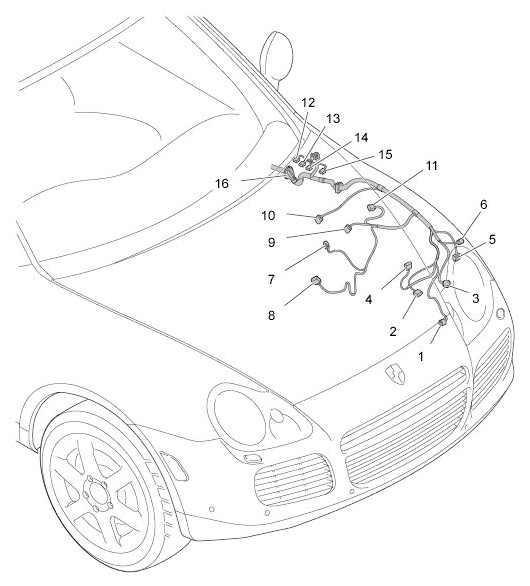

Fig 1: Sub-Part Installation Location - Front Left Wiring Harness
G09415964Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Airbag sensor connector
  2. Plug connection for front wire harness
  3. Front cross member ground strap
  4. Headlight housing connector
  5. Antenna connector for TPM
  6. Bulb holder for direction indicator light
  7. Connector for headlight beam adjustment angle sensor
  8. Servo valve connector
  9. Plug connection for ABS sensor and brake pad wear indicator
  10. Circulating pump connector
  11. Airbag sensor connector for lateral acceleration
  1. 12-15 - E-box connector for radiator tank
  2. 16 - Rubber sleeve
  1. Remove cover from cable duct.

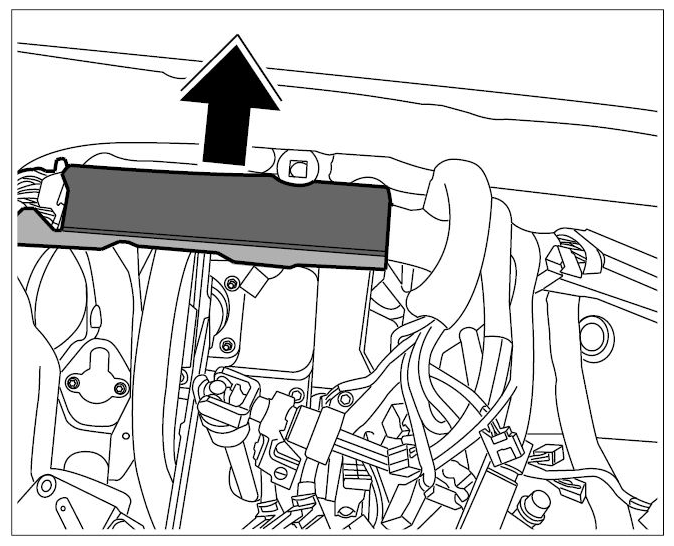

    Fig 2: Removing Cover From Cable Duct
    G09415965Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    When cutting the front wire harness, make sure there is enough length of cable left to join to the new lines.

  2. Cut off front wire harness in the areas -a-  .

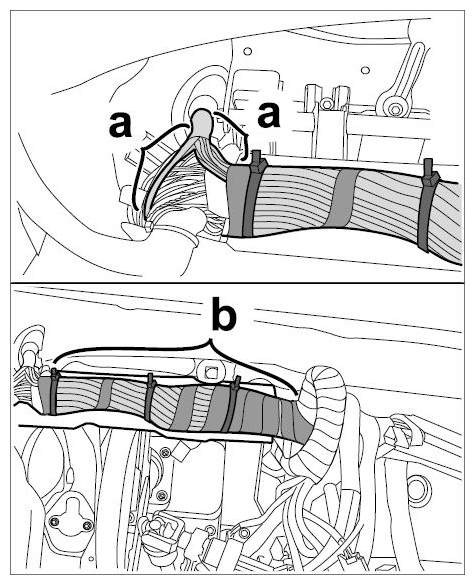

    Fig 3: Cutting Off And Exposing Front Left Wire Harness
    G09415966Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove fabric tape and tie-wrap in area -b-  and expose the remaining lines.
  4. Pull off connector on sensor for airbag -1-  .

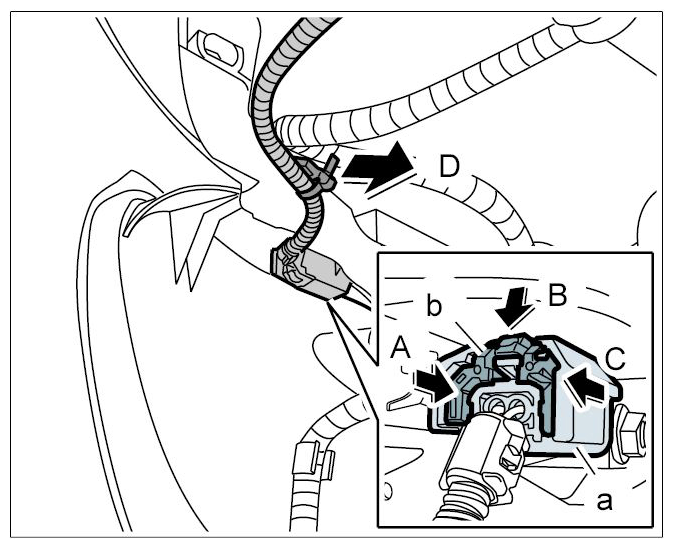

    Fig 4: Pulling Off Connector On Sensor For Airbag
    G09415967Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 4.1. Push in latch -b-  on sensor connector for airbag -a- -arrow A-  , until this is felt to engage.
    2. 4.2. Release locking mechanism on the latch -b- -arrow B-  and pull off connector on sensor for airbag -a- -arrow C-  .
    3. 4.3. Pull off wire harness with the support from the lock carrier -arrow D-  .
  5. Pull off front wire harness -2-  and loosen front ground strap cross member -3-  .

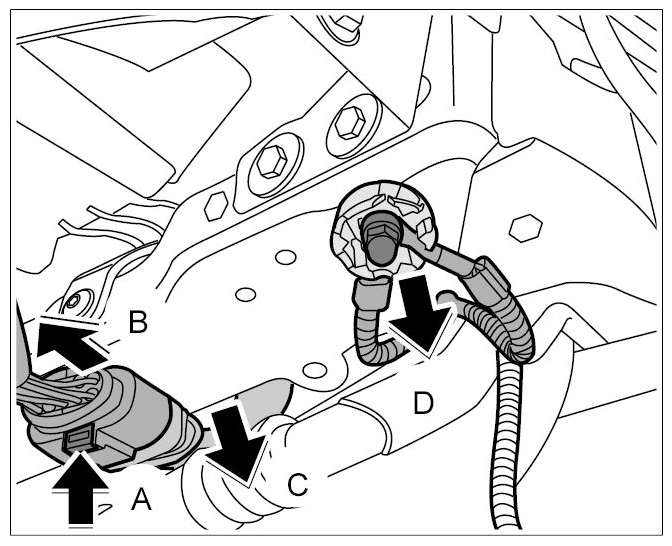

    Fig 5: Disconnecting Front Wire Harness Plug Connection
    G09415968Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 5.1. Release plug connection for front wire harness on left front cross member -arrow A-  and pull off connector -arrow B-  .
    2. 5.2. Unclip connector socket -arrow C-  .
    3. 5.3. Unscrew fastening nut and remove ground straps together with twist lock from threaded bolt -arrow D-  .
  6. Pull off connector on headlight housing -4-  .

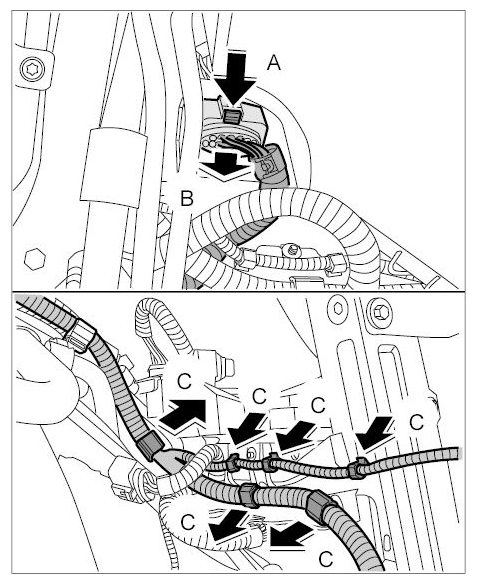

    Fig 6: Pulling Off Headlight Housing Connector
    G09415969Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 6.1. Release connector on headlight housing -arrow A-  and pull off -arrow B-  .
    2. 6.2. Unclip wire harness on the six retaining clips underneath the headlight housing -arrows C-  .
  7. Pull out bulb holder for the direction indicator light -6-  and pull off connector for TPM antenna -5-  .

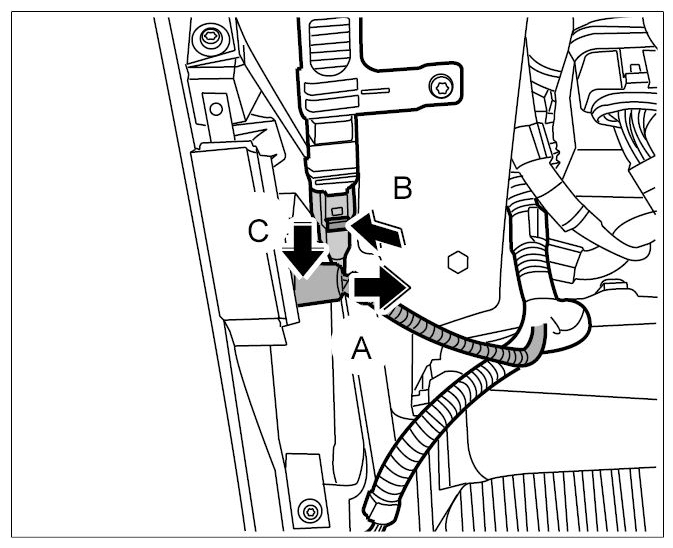

    Fig 7: Removing Bulb Holder For Front Left Direction Indicator Light
    G09415970Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 7.1. Slightly turn bulb holder of direction indicator light in left wheel housing and remove -arrow A-  .
    2. 7.2. Release connector on the antenna for TPM in left wheel housing -arrow B-  and pull off -arrow C-  .
  8. Pull down wire harness on upper side member from the four clips -arrows A-  .

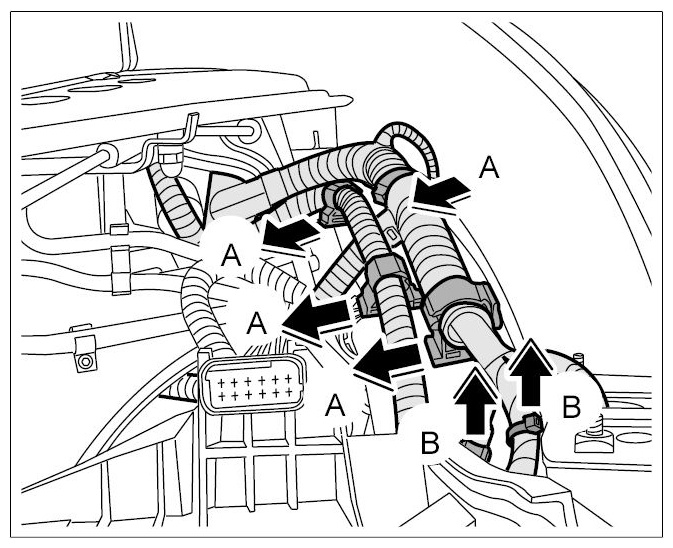

    Fig 8: Loosening Wire Harness On Upper Side Member
    G09415971Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  9. Unclip wire harness on the two retaining clips -arrows B-  .
  10. Pull off connector on angle sensor for HBA -7-  .

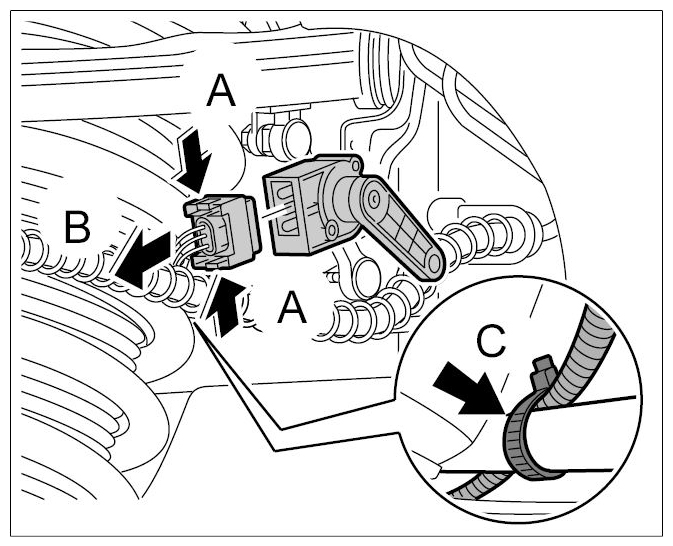

    Fig 9: Pulling Off Connector On Angle Sensor For HBA
    G09415972Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 10.1. Release connector on angle sensor for HBA on the left wheel suspension -arrows A-  and pull off -arrow B-  .
    2. 10.2. Remove tie-wrap -arrow C-  for securing the wire harness to the refrigerant line.
  11. Pull off connector on servo valve -8-  .

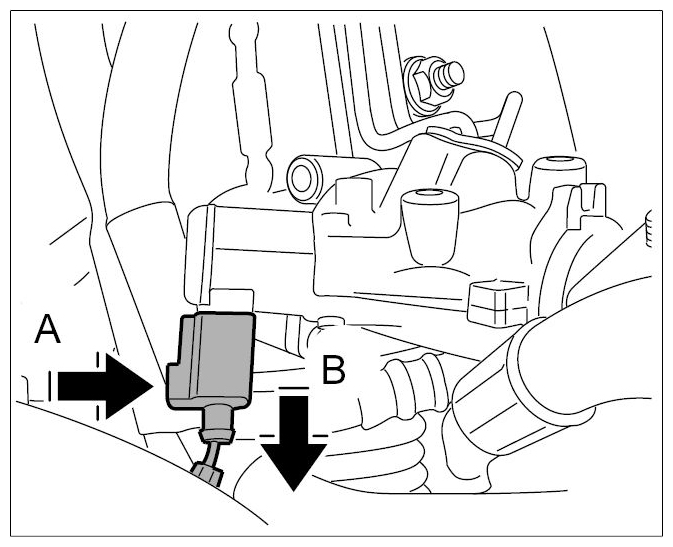

    Fig 10: Pulling Off Connector On Servo Valve
    G09415973Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 11.1. Release connector on servo valve -arrow A-  and pull off -arrow B-  .
  12. Pull off plug connection for ABS sensor and brake pad wear indicator -9-  .

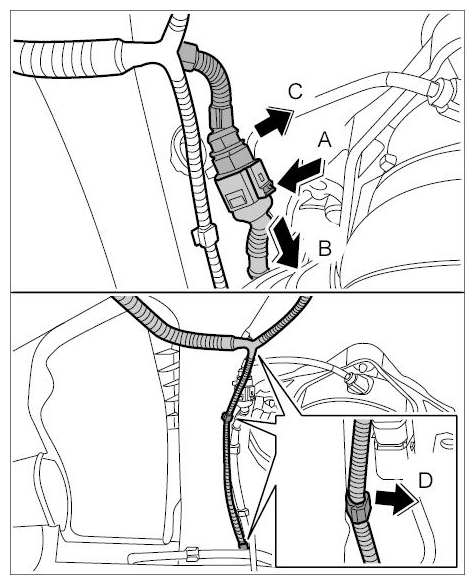

    Fig 11: Pulling Off Plug Connection For ABS Sensor And Brake Pad Wear Indicator
    G09415974Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 12.1. Release plug connection for ABS sensor and brake pad wear indicator in left wheel housing -arrow A-  and pull off -arrow B-  .
    2. 12.2. Unclip socket for ABS sensor and brake pad wear indicator -arrow C-  .
    3. 12.3. Unclip wire harness on the three retaining clips -arrows D-  .
  13. Pull off connector on sensor for lateral acceleration -11-  and circulating pump connector -10-  .

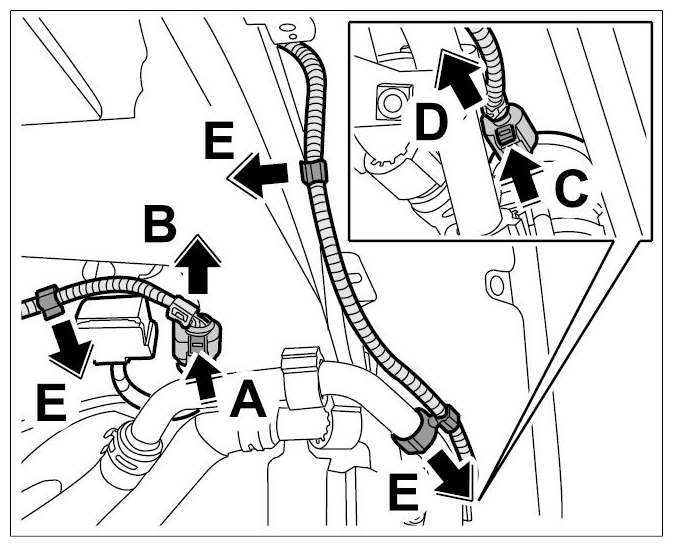

    Fig 12: Pulling Off Connector On Sensor For Lateral Acceleration
    G09415975Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 13.1. Release connector on sensor for lateral acceleration in left wheel housing -arrow A-  and pull off -arrow B-  .
    2. 13.2. Release connector on the circulating pump -arrow C-  and pull off -arrow D-  .
    3. 13.3. Unclip wire harness on the three retaining clips -arrows E-  .
  14. Remove radiator tank at front left.
  15. Remove rubber sleeve from the bulkhead.

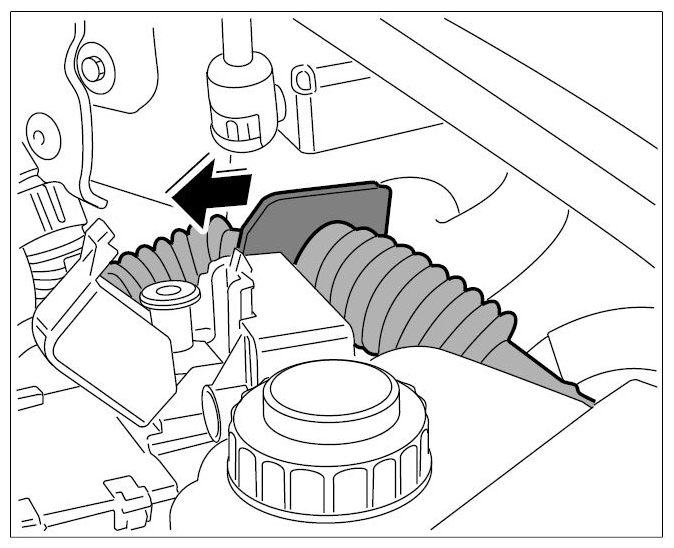

    Fig 13: Removing Rubber Sleeve From Bulkhead
    G09415976Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  16. Unclip wire harness in plenum panel on the four retaining clips.

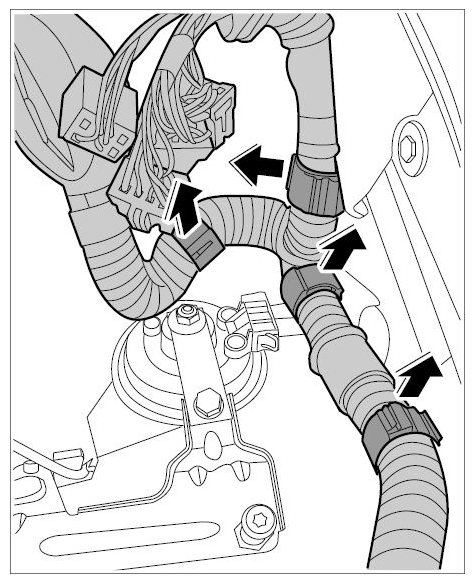

    Fig 14: Unclipping Wire Harness In Plenum Panel
    G09415977Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  17. Remove rubber sleeve -16-  on the left firewall.
    1. 17.1. Remove rubber sleeve on the left firewall in direction of engine compartment and remove front left wire harness.

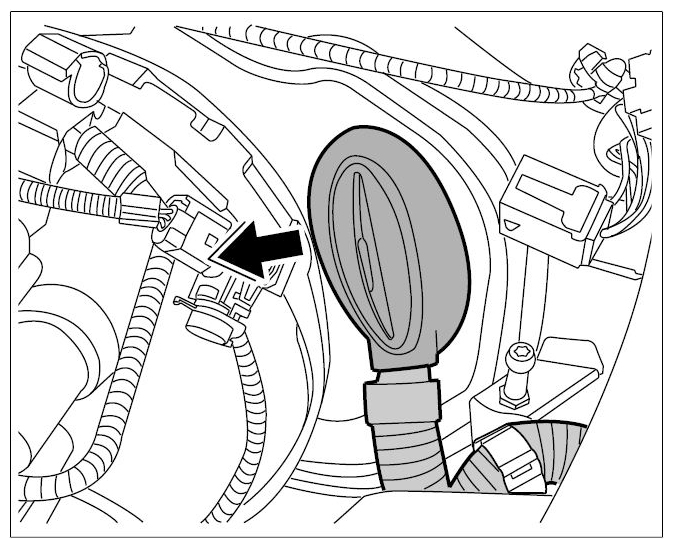

      Fig 15: Removing Rubber Sleeve On Left Firewall
      G09415978Courtesy of PORSCHE CARS NORTH AMERICA, INC.
