Removing Wiper Shaft

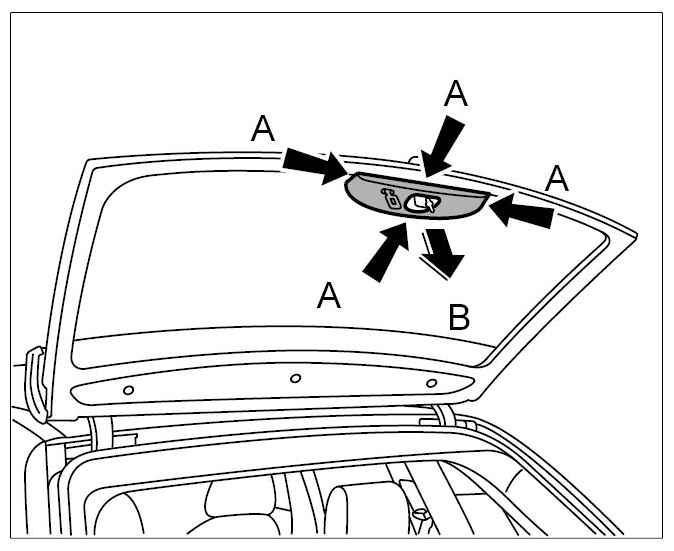

  1. Carefully unclip the cover using a plastic wedge -arrows A-  and remove the cover -arrow B-  .
    Fig 1: Removing Cover
    G09415203Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew fastening nut -1-  .
    Fig 2: Unscrewing Fastening Nuts
    G09415204Courtesy of PORSCHE CARS NORTH AMERICA, INC.

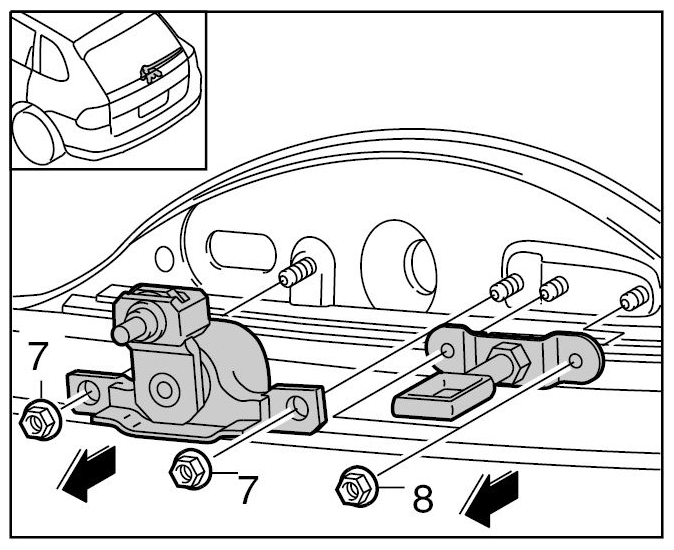

  3. Unscrew the two fastening nuts -7-  for the wiper shaft and the two nuts -8-  securing the catch bar. Remove the wiper shaft and/or catch bar.
    Fig 3: Removing Wiper Shaft And Catch Bar
    G09415205Courtesy of PORSCHE CARS NORTH AMERICA, INC.
