Installing The Front Window Shaft Seal

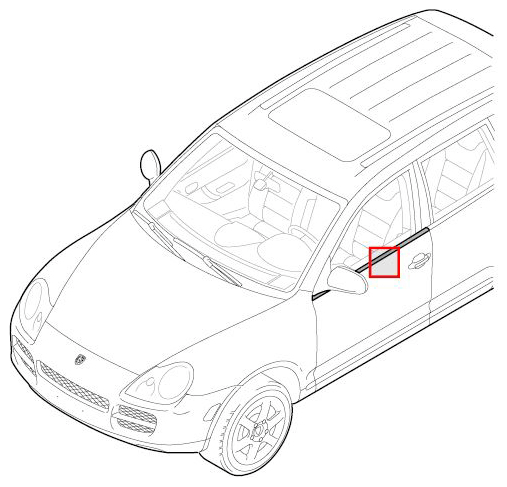

Fig 1: Identifying Front Window Shaft Seal

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

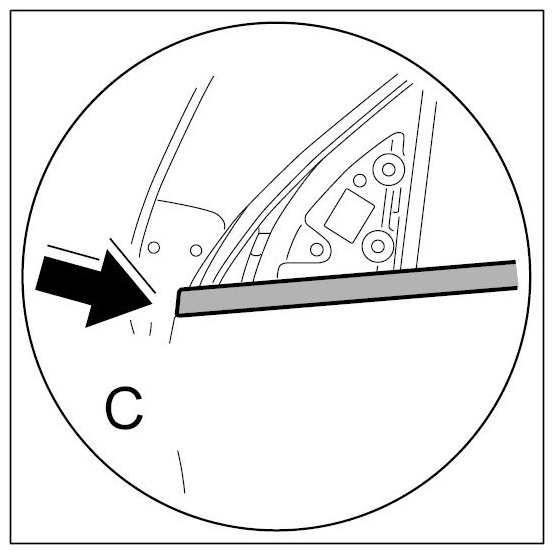

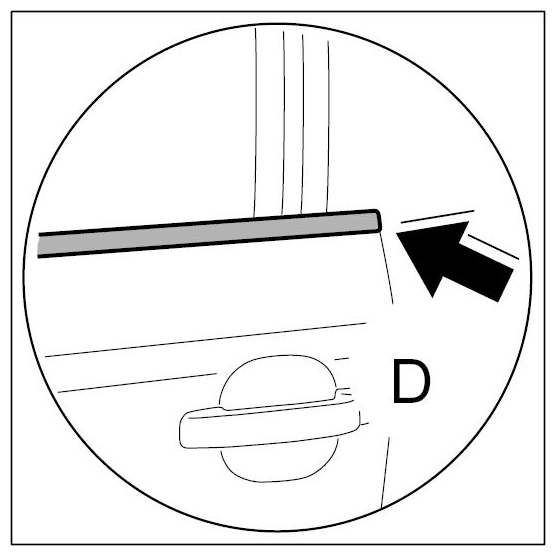

Make sure here that horizontal alignment is correct! -Arrow C- and -Arrow D-

Fig 2: Locating Front Window Channel Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 3: Locating Front Window Channel Seal

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Install front window channel seal

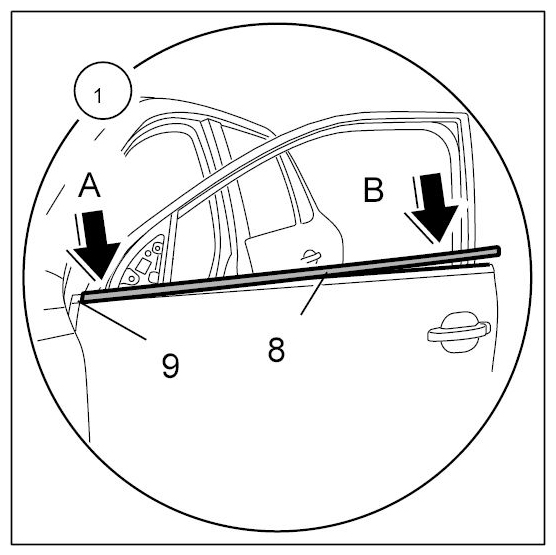

1. 1.1. Attach front window channel seal -8- at the front end (-arrow A- ) - beginning at the sheetmetal flange -9- - from above (-arrow B- ).

  Fig 4: Installing Front Window Channel Seal
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close the front door window.

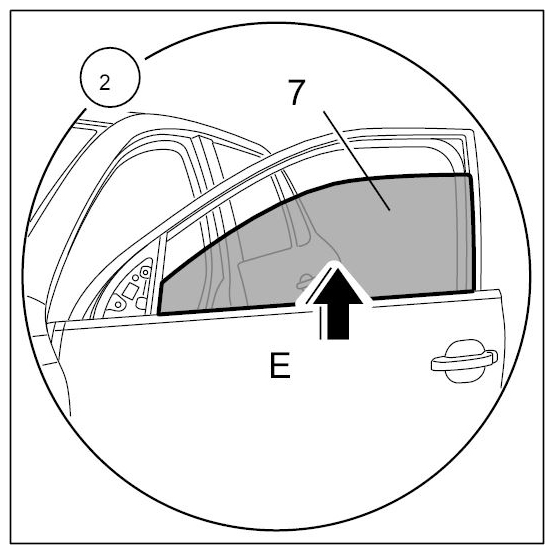

1. 2.1. Close the front door window -7- fully (-Arrow E- ).

  Fig 5: Closing Front Door Window
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw mirror into place.

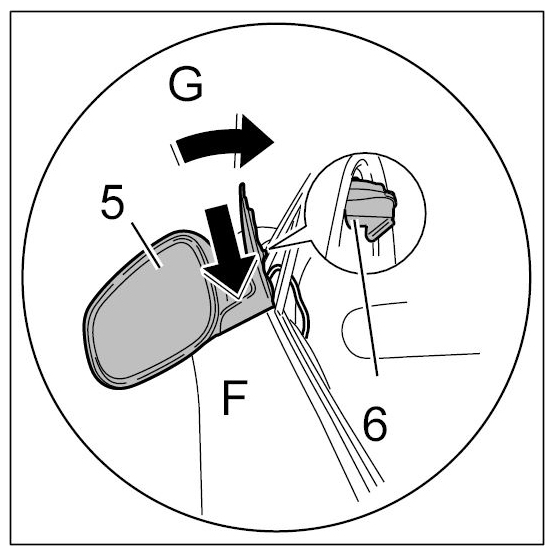

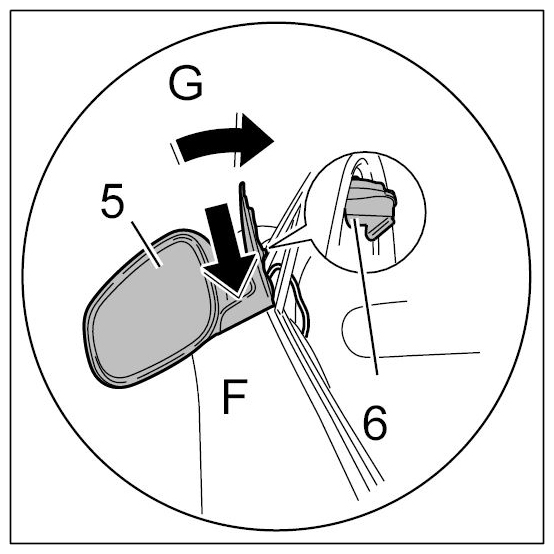

1. 3.1. Attach mirror -5- to window channel (-arrow F- ) and fold upward and inward (-arrow G- ).

  Fig 6: Attaching Mirror To Window Channel
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Press mirror -5- downward until the retaining pin -6- engages in the window frame.

  Fig 7: Pressing Mirror Downward
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

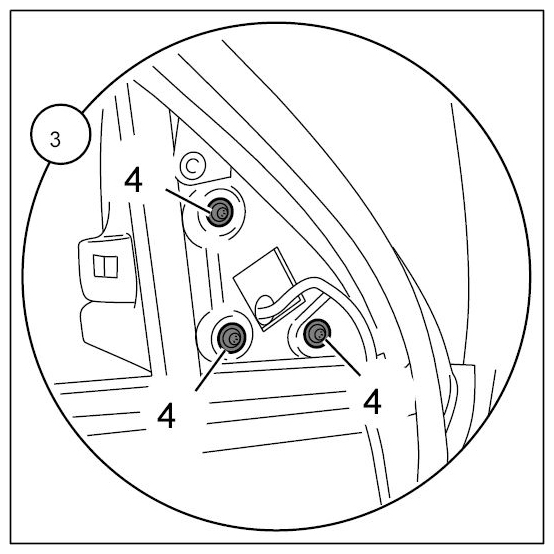

3. 3.3. Tighten fastening screws -4- . → Tightening torque: 10 Nm (7.5 ftlb.)

  Fig 8: Identifying Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip mirror adjustment switch into place.

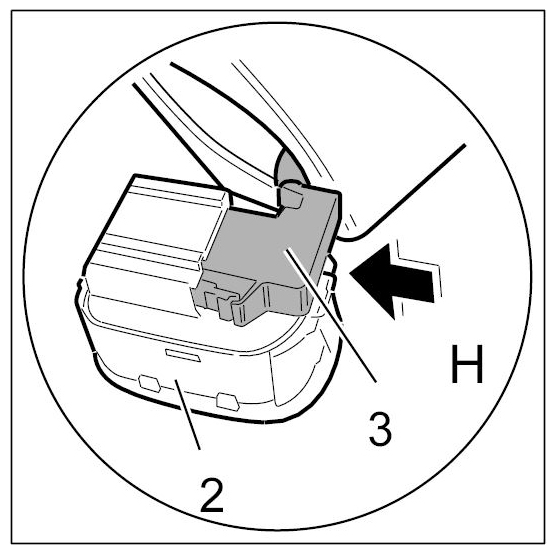

1. 4.1. Connect plug -3- to switch -2- (-arrow H- ).

  Fig 9: Connecting Plug To Switch
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

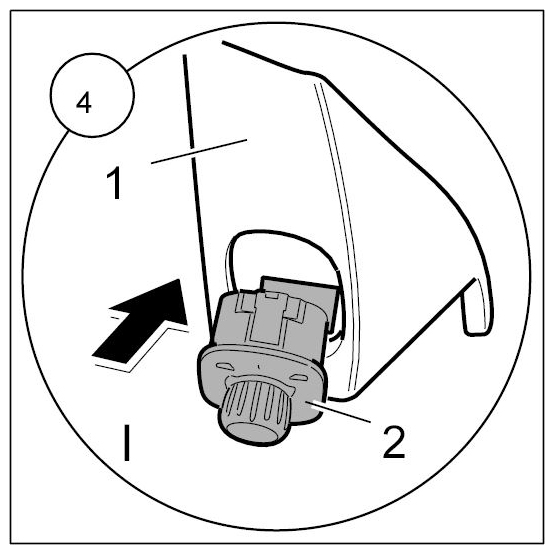

2. 4.2. Clip switch -2- into trim panel for mirror triangle -1- from front (-arrow I- ).

  Fig 10: Clipping Switch Into Trim Panel For Mirror Triangle
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install trim panel for mirror triangle.

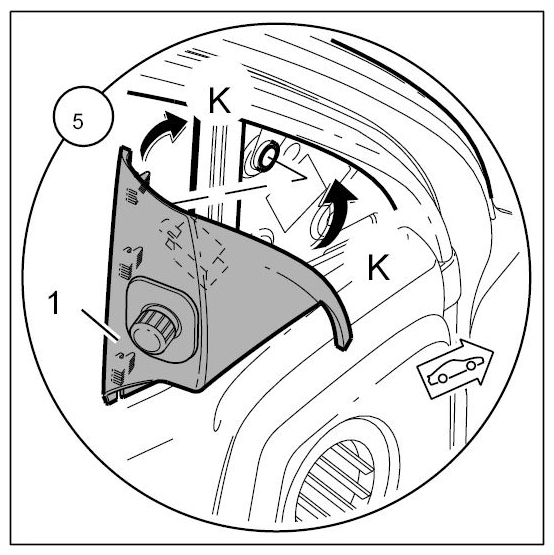

1. 5.1. Position trim panel for mirror triangle -1- on the door and clip into place (-arrows K- ).

  Fig 11: Installing Trim Panel For Mirror Triangle
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
